Raspberry Pi Pico W (Wireless WiFi)

Rating:
99% of 100
SKU: CE08703 Brand: Raspberry Pi Guides (5)

The Raspberry Pi Pico W is perfect for IoT and wireless projects, better still, it's such an affordable 32-bit microcontroller that is packed with peripheries including WiFi.

$9.90 AUD, inc GST
$9.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 8-100 $8.73 (exc GST)
  • 100+ $8.25 (exc GST)
- +

1748 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

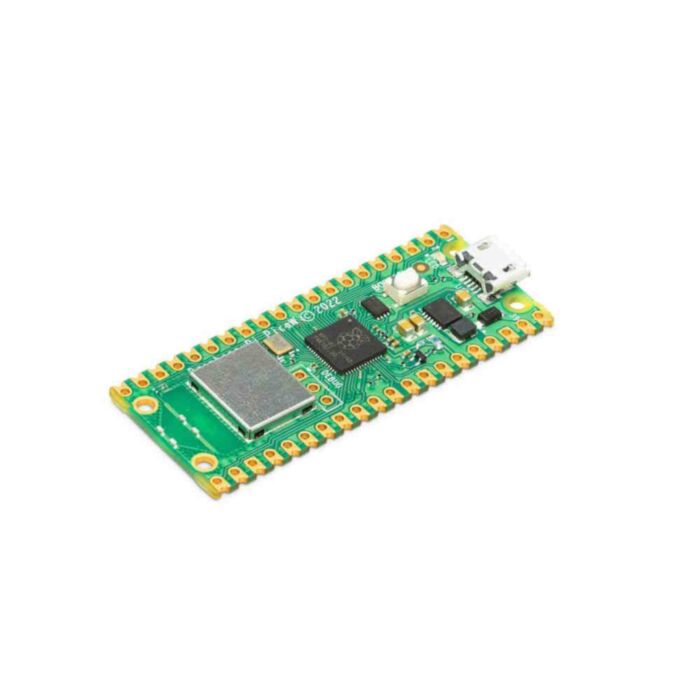

Raspberry Pi Pico W - the W at the end stands for "Wireless" and supports WiFi 802.11n 2.4GHz out of the box along with BLE in the future. Best of all this board is manufactured by Raspberry Pi, which means excellent resources and a very stable port of MicroPython.

The wireless antenna is an onboard type, similar to that used on the Raspberry Pi Zero boards. The pins are standard pitch, so it's easy to solder pins on and get going with solderless breadboards. For industrial users, the Pico W can be soldered in place using castellated mounting holes (and available in reels of 480, automation all the way!).

Make sure the USB cable you are using carries data like ours does.

Here are some guides and projects we have put together for Pico W:

Board Specifications:

  • RP2040 microcontroller chip designed by Raspberry Pi
  • On-board single-band 2.4GHz wireless interfaces (802.11n)
  • Dual-core ARM Cortex M0 processor, flexible clock running up to 133 MHz
  • 264kB of SRAM, and 2MB of on-board Flash memory
  • Castellated module allows soldering directly to carrier boards
  • USB 1.1 Host and Device support
  • Low-power sleep and dormant modes
  • Drag & drop programming using mass storage over USB
  • 26 multi-function GPIO pins
  • 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating point libraries on-chip
  • 8×Programmable IO (PIO) state machines for custom peripheral support
  • Raspberry Pi Pico W Datasheet

raspberry pi pico w pinout

  Non-Wireless Wireless
Without Headers Pico Pico W
Male Headers Pico H - Pico with Headers Pico W with Headers
Female Headers Pico with Female Headers
Stackable Headers Pico with Stackable Headers



Raspberry Pi Pico W - the W at the end stands for "Wireless" and supports WiFi 802.11n 2.4GHz out of the box along with BLE in the future. Best of all this board is manufactured by Raspberry Pi, which means excellent resources and a very stable port of MicroPython.

The wireless antenna is an onboard type, similar to that used on the Raspberry Pi Zero boards. The pins are standard pitch, so it's easy to solder pins on and get going with solderless breadboards. For industrial users, the Pico W can be soldered in place using castellated mounting holes (and available in reels of 480, automation all the way!).

Make sure the USB cable you are using carries data like ours does.

Here are some guides and projects we have put together for Pico W:

Board Specifications:

  • RP2040 microcontroller chip designed by Raspberry Pi
  • On-board single-band 2.4GHz wireless interfaces (802.11n)
  • Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264kB of SRAM, and 2MB of on-board Flash memory
  • Castellated module allows soldering directly to carrier boards
  • USB 1.1 Host and Device support
  • Low-power sleep and dormant modes
  • Drag & drop programming using mass storage over USB
  • 26 multi-function GPIO pins
  • 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating point libraries on-chip
  • 8×Programmable IO (PIO) state machines for custom peripheral support
  • Raspberry Pi Pico W Datasheet

raspberry pi pico w pinout

The whole Pico family:

  Pico 1 Pico 1 W (Wireless) Pico 2 Pico 2 W (Wireless)

Without Headers

Pico

Pico W

Pico 2

Pico 2 W

Male Headers

Pico H - Pico with Headers

Pico W with Headers

Pico 2 with Soldered Male Headers





Other Pico Variants

Check out other microcontroller boards with Raspberry PI Silicon!



Pi Pico Resources

If you haven't already check out the latest Raspberry Pi Pico release:

The Pico 2!

Features include:

  • Inbuilt security
  • RISC-V Cores
  • Improved power consumption

This workshop is the best place to get started for all things Raspberry Pi Pico.

This course attempts to be one of the most comprehensive Pico courses for all levels of Maker, teaching not only fundamental skills in microcontrollers, coding, and electronics but also the wisdom and insights from many of the folks here at Core Electronics.
