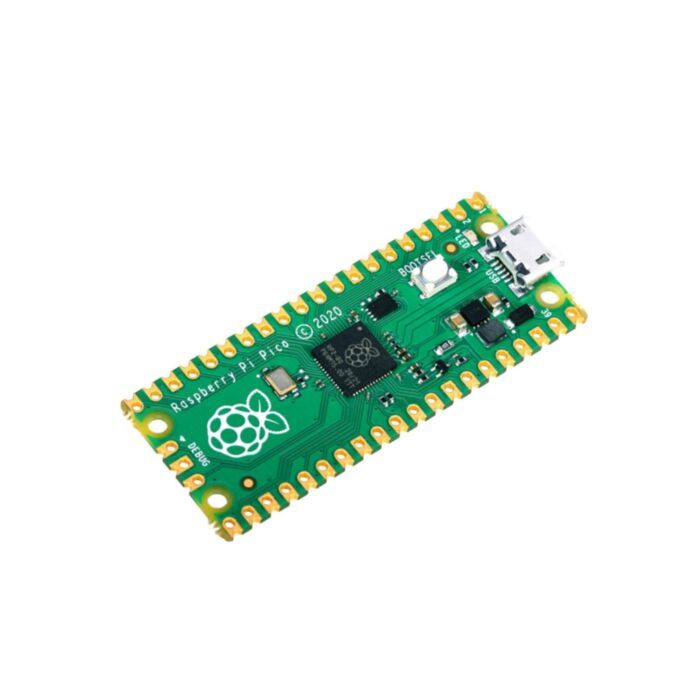

Raspberry Pi Pico (Without Headers)

Rating:

99% of 100

117 Reviews

SKU: CE07564 Brand: Raspberry Pi Guides (9)

Welcome to your Raspberry Pi Pico, the new flexible microcontroller board from Raspberry Pi.

$6.60 AUD, inc GST

$6.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 4th of Mar

Quantity Discounts:

15-400 $5.82 (exc GST)
400+ $5.70 (exc GST)

Recommended Essentials:

PiicoDev LiPo Expansion Board for Raspberry Pi Pico

$8.50

Male Pin Header 2.54mm (1x40)

$0.45

PiicoDev Platform for Raspberry Pi Pico

$7.95

Makerverse Protoboard for Raspberry Pi Pico

$5.15

Female Header Pins 2.54mm (1x20)

$0.41

40 Pin - Female Headers

$3.05

Take a look at our PiicoDev Starter Kit for Raspberry Pi Pico - electronics modules designed and made right here in Newcastle. For makers by makers!

You'll also need some Male Headers to use with our PiicoDev Kit.

Introducing the Raspberry Pi Pico: a microcontroller board built using silicon designed by Raspberry Pi. And that's the special sauce - the onboard microcontroller (RP2040) has had input from the whole Raspberry Pi team, from design through to educational resources. Pico will likely become a popular contender for industrial applications along with projects around the home/classroom. If you are new to the world of Pico and MicroPython, then take a look at our Getting Started Guide for Pico.

All of that, and at a price that can't be ignored thanks to the scale of Raspberry Pi. What an age we live in!

We also have available an option with headers pre-soldered.

Make sure the USB cable you are using carries data like ours does.

Whether you prefer MicroPython or C , here is everything you need:

Utilities:

PicoTool (command line utility to find out these details for inspecting code on the Pico)
debugprobe (to use one Raspberry Pi Pico to debug another Pico, as a USB → SWD and UART converter)
Resetting Flash memory (if you want to make sure your Flash memory is empty)

Board Specifications

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core ARM Cortex M0 processor, flexible clock running up to 133 MHz
264kB of SRAM, and 2MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 Host and Device support
Low-power sleep and dormant modes
Drag & drop programming using mass storage over USB
26 multi-function GPIO pins
2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating point libraries on-chip
8×Programmable IO (PIO) state machines for custom peripheral support

If you purchase in increments of 480 units, then we will send a full reel of boards. The reel specs:

Units per reel: 480
Reel size: 308mm x 77.4mm (3” tape width)

Pico Pinout

	Non-Wireless	Wireless
Without Headers	Pico	Pico W
Male Headers	Pico H - Pico with Headers	Pico W with Headers
Female Headers	Pico with Female Headers
Stackable Headers	Pico with Stackable Headers

All of that, and at a price that can't be ignored thanks to the scale of Raspberry Pi. What an age we live in!

We also have available an option with headers pre-soldered.

Make sure the USB cable you are using carries data like ours does.

Whether you prefer MicroPython or C , here is everything you need:

Utilities:

PicoTool (command line utility to find out these details for inspecting code on the Pico)
debugprobe (to use one Raspberry Pi Pico to debug another Pico, as a USB → SWD and UART converter)
Resetting Flash memory (if you want to make sure your Flash memory is empty)

Board Specifications

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
264kB of SRAM, and 2MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 Host and Device support
Low-power sleep and dormant modes
Drag & drop programming using mass storage over USB
26 multi-function GPIO pins
2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating point libraries on-chip
8×Programmable IO (PIO) state machines for custom peripheral support

If you purchase in increments of 480 units, then we will send a full reel of boards. The reel specs:

Units per reel: 480
Reel size: 308mm x 77.4mm (3” tape width)

Pico Pinout

The whole Pico family:

	Pico 1	Pico 1 W (Wireless)	Pico 2	Pico 2 W (Wireless)
Without Headers	Pico	Pico W	Pico 2	Pico 2 W
Male Headers	Pico H - Pico with Headers	Pico W with Headers	Pico 2 with Soldered Male Headers

Pico 1

Pico 1 W (Wireless)

Pico 2

Pico 2 W (Wireless)

Without Headers

Male Headers

Pico H - Pico with Headers

Pico W with Headers

Pico 2 with Soldered Male Headers

Other Pico Variants

Check out other microcontroller boards with Raspberry PI Silicon!

Pi Pico Resources

Raspberry Pi Pico 2 | Overview, Features and Specs

If you haven't already check out the latest Raspberry Pi Pico release:

The Pico 2!

Features include:

Inbuilt security
RISC-V Cores
Improved power consumption

Raspberry Pi Pico Workshop

This workshop is the best place to get started for all things Raspberry Pi Pico.

This course attempts to be one of the most comprehensive Pico courses for all levels of Maker, teaching not only fundamental skills in microcontrollers, coding, and electronics but also the wisdom and insights from many of the folks here at Core Electronics.
