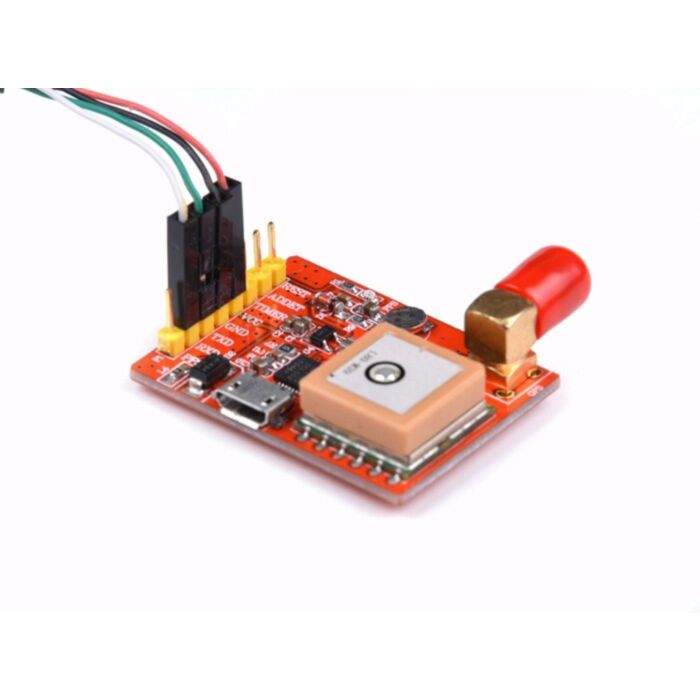

Raspberry PI GPS Module (Seeed Studio)

SKU: SS114990732 Brand: Seeed Studio

Support Raspberry Pi model A, B, A+, B+, Zero, 2, 3 with its' L80-39 GPS chip inside. Communicates satellite with UART or USB. CP2102 as USB to UART Bridge...

$78.10 AUD, inc GST

$71.00 AUD, exc GST

Quantity Discounts:

6-12 $68.16 (exc GST)
12+ $66.03 (exc GST)

Out of Stock

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

Features

-165 dBm sensitivity, 1Hz (Default), up to 5Hz, 66 channels
At least 100mA current draw to startup.
PPS output can be used to coordinate a time with a satellite.
Internal patch antenna which works quite well when used outdoors SMA connector for external active antenna for when used indoors
Fix status LED blinks to let you know when the GPS has determined the current coordinates
EASY™, advanced AGPS technology without external memory
Support time service application which can be achieved by PPS sync NMEA feature
Built-in LNA for better sensitivity
RTC battery-compatible
1x8 male headers, USB micro Interface
Includes CP2102 Module Serial Converter USB 2.0 To TTL UART

You will need a GPS module to determine the location of your Raspberry Pi, especially if the Raspberry Pi is set up for outdoor projects.

This Raspberry Pi GPS Module is built with CP2102 as USB to UART Bridge chip, which is stable and faster.
You can easily apply on your Raspberry Pi model A/A+/Zero/2/3B/3B+. There is also an L80-39 GPS chip inside the chip. The L80-39 is with 66 search channels and 22 simultaneous tracking channels, which can help communicate satellite with UART or USB.

Note

This module only fits for outdoor operation, please put the antenna in the open air.

As the serial port issue of Raspberry Pi 3 Model B, it may cause unexpected problems, we suggest that you do not connect the GPS module with Raspberry Pi directly with GPIO Pins.

The easiest way to get started is using a USB-to-TTL cable to connect GPS module and Raspberry Pi, and you can wire it up like this chart:

GPS module	Wire color
VCC	Red wire
GND	Black wire
TXD	Green wire
RXD	White wire

Hardware Overview

Part List

1 x USB-Port-GPS(L80-39) module
1 x USB data wire

Documentations

USB-Port-GPS Module SKU:EZ-0048
