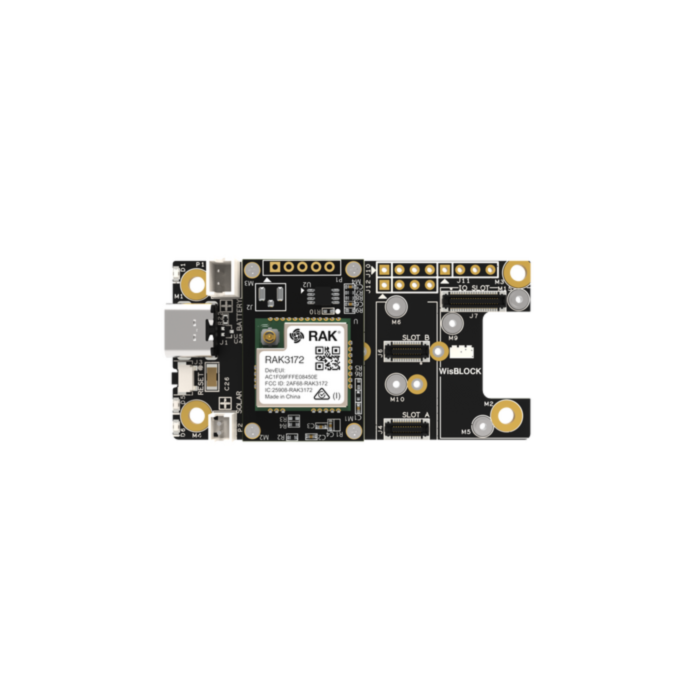

WisBlock RAK3172 LoRaWAN Evaluation Board Kit

SKU: RW-316045 Brand: RAKwireless

Break out STM32WLE5CC pins and prototype LoRaWAN A/B/C or P2P networks with slots for add-on modules, battery, solar and on-board charging.

$46.75 AUD, inc GST
$42.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 12th of Aug

Quantity Discounts:

  • 10+ $40.80 (exc GST)
  • 25+ $39.53 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

  • Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz  (check the product description for compatible frequency ranges).
  • If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

  • Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introducing the RAK3172-E Evaluation Board: a powerful platform combining the STM32WLE5CC SoC with LoRaWAN 1.0.4 Class A, B & C and Point-to-Point modes. Ideal for rapid prototyping of battery or solar powered IoT devices, it simplifies pin access and module integration.

Based on the RAK3372 WisBlock Core and compatible with the RAK19007 WisBlock Base Board, this board supports expandable IoT projects with integrated charging, RUI3 firmware APIs and seamless development workflows.

Technical Specifications

Parameter Details
SoC STM32WLE5CC
Frequency Bands EU868/IN865/RU864, US915/AU915/KR920/AS923, AS923-1, CN470, EU433
LoRaWAN Class A, B & C (1.0.4)
P2P Mode Supported
Firmware RAKwireless Unified Interface V3 (RUI3)
Core PCB RAK3372 WisBlock Core
Base Board RAK19007 WisBlock Base Board
Interfaces SPI, I2C, UART, GPIO, ADC
Power Battery/solar connector, on-board charging
Connectivity USB-C

Additional Resources

What’s Included

  • 1 x RAK3372 + 1 x RAK19007
  • 1 x USB-C cable
  • 1 x SubG antenna (iPEX)
  • 2 x 4-pin header
  • 14 x Dupont jumper wires

WisBlock is RAKWireless's modular hardware development ecosystem designed to make a customised solutions for any IoT project
