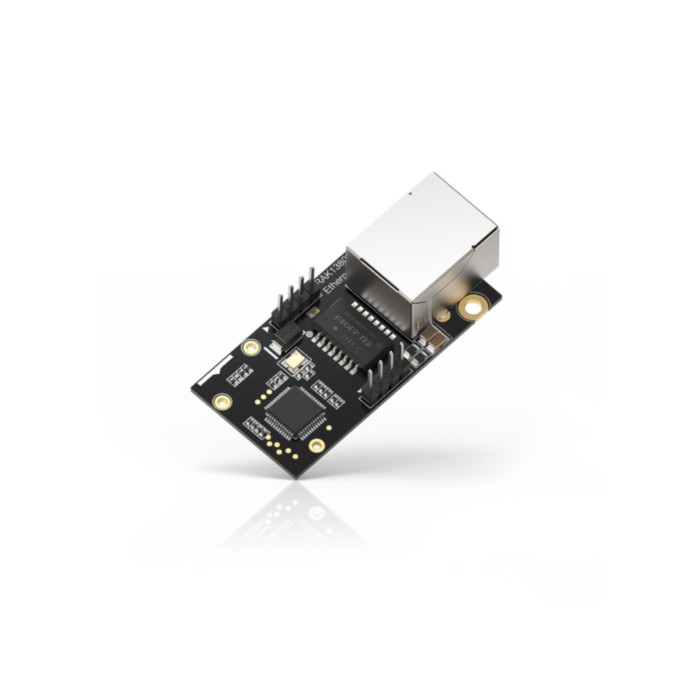

WisBlock Ethernet Module WIZnet W5100S-L RAK13800

SKU: RW-100076 Brand: RAKwireless

Extend WisBlock with 10/100 Base-T Ethernet via SPI using WIZnet W5100S, featuring PoE headers, Wake-on-LAN, power-down modes and auto-MDIX negotiation.

$15.80 AUD, inc GST

$14.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $13.79 (exc GST)
25+ $13.35 (exc GST)

Add robust wired networking to your WisBlock modules setup with the RAK13800 WisBlock Ethernet Board. Powered by the WIZnet W5100S-L chip, it delivers stable 10BaseT and 100BaseTX Ethernet connectivity for industrial IoT, OEM prototypes and university-level STEM projects.

Its SPI host interface, low-power modes and network indicator LEDs integrate seamlessly into existing WisBlock configurations.

Technical Specifications

Specification	Details
Ethernet controller	WIZnet W5100S-L
Transfer speeds	10BaseT, 100BaseTX
Host interface	SPI
Memory	Internal 16 KB for TX/RX buffers
Supply voltage	2.97 - 3.63 V
Size	25 x 50 mm
Power-down modes	Ethernet Power-down and main clock gating
Socket support	Four independent SOCKETs and socket-less command
Auto-negotiation	Yes (includes Auto-MDIX)
Wake on LAN	UDP-based WOL support
Indicators	Network status LEDs
PoE support	Via RAK19018 PoE Module

Additional Resources

What’s Included

RAK13800 WisBlock Ethernet Board
