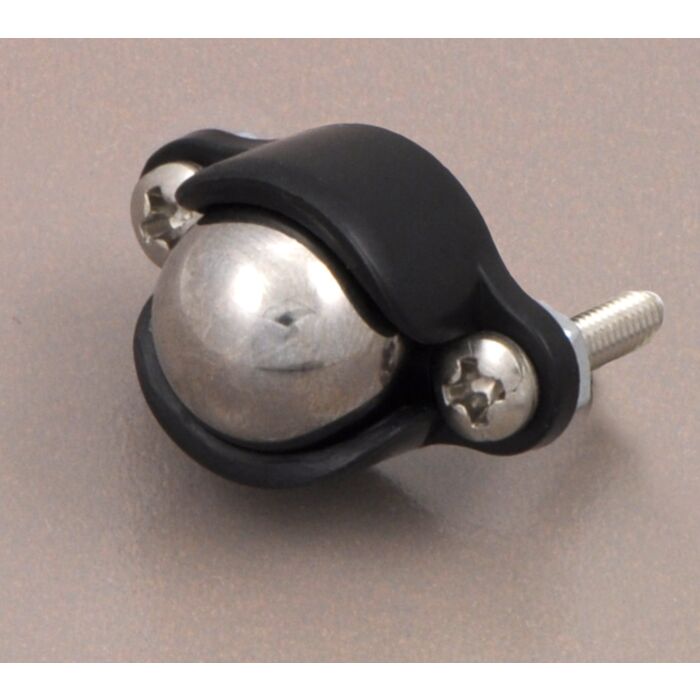

Pololu ball caster with 3/8" metal ball with included hardware. |
---|
This ball caster kit includes a black ABS housing, a 3/8" diameter metal ball, two spacers (1/16" and 1/8" thick), and two 7/16" #2 screws and nuts. The total height of the ball caster, 0.4", can be increased to about 0.6" using the included spacers. The two included #2 screws can be used to mount the ball caster to your chassis, or you can use your own #2 or M2 screws if your application requires a different length.
Note that Pololu's ball casters are designed for small robots; they are not intended to bear more than a few pounds. With more weight than this, friction between the ball and the housing will generally keep it from rolling well.
For detailed dimensions, see the dimension diagram (164k pdf).
Comparison of Pololu ball casters
Pololu ball casters with plastic and metal balls. Ball diameter from left to right: 1", 3/4", 1/2", and 3/8". |
---|
Pololu ball caster ball diameter | height with no spacers | distance between screw holes | weight with no spacers or screws |
0.40" | 0.53" | 0.03 oz | |
0.40" | 0.53" | 0.14 oz | |
0.53" | 0.58" | 0.07 oz | |
0.53" | 0.58" | 0.32 oz | |
0.88" | 0.24" | 0.25 oz | |
0.82" | 0.61" | 1.05 oz | |
1.10" | 0.48" | 0.65 oz | |
1.10" | 0.48" | 0.58 oz | |
1.10" | 0.70" | 0.36 oz |
People often buy this product together with:
Pololu Ball Caster with 3/8" Plastic Ball |
QTR-8A Reflectance Sensor Array |
Pololu Micro Metal Gearmotor Bracket Pair - Black |
Dimensions
Ball diameter: | 0.375 in |
---|---|
Weight: | 4 g1 |
General specifications
Ball material: | metal |
---|
Notes:
