Pololu Stamped Aluminum L-Bracket Pair for 37D mm Metal Gearmotors

Rating:

100% of 100

SKU: POLOLU-1084 Brand: Pololu

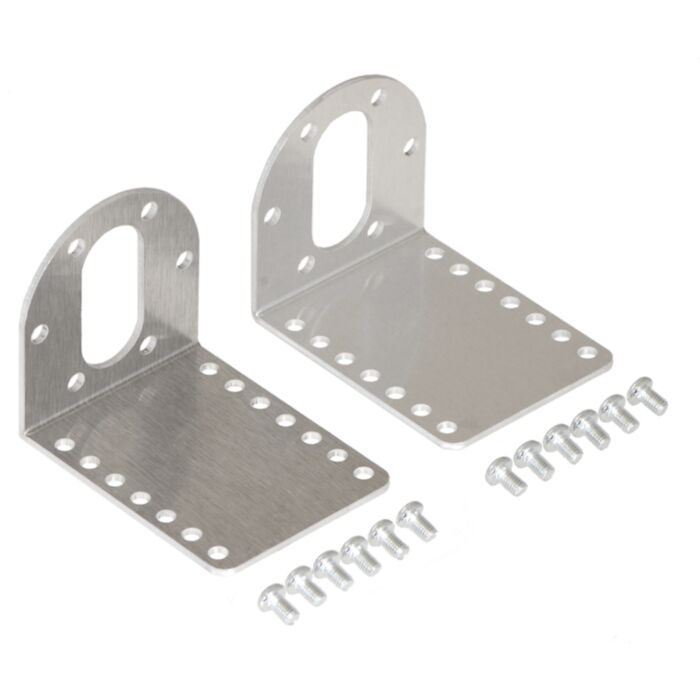

These aluminum gearmotor brackets let you mount Pololu’s 37D mm metal gearmotors to your project. The brackets are sold in pairs, and each bracket includes six M3 screws for securing the motor to the bracket. Each bracket also features fourteen mounting holes for M3 or #4-size screws (not included), giving you a variety of mounting options.

$16.30 AUD, inc GST

$14.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

10-25 $14.23 (exc GST)
25+ $13.78 (exc GST)

37D mm gearmotor (without encoder) with L-bracket and 6mm universal mounting hub.

These light-weight brackets are specifically designed for Pololu’s 37D mm metal gearmotors. Each bracket features fourteen mounting holes (seven along each edge) for M3 or #4-size screws, giving you a variety of mounting options. A total of twelve 5 mm M3 screws (six for each bracket) are included for securing the motors to the brackets.

Pololu also carry a machined bracket for Pololu's 37D mm gearmotors that provides an alternate, sturdier mounting option (this stamped L-bracket can bend under heavy load).

Mechanical drawing for the Pololu stamped aluminum L-bracket for 37D mm metal gearmotors. Units are mm over [inches].

This drawing is also available as a downloadable PDF (81k pdf).

Note: As of June 11, 2014, the thickness of these brackets has increased from 1.5 mm to 2 mm.

People often buy this product together with:

Pololu Universal Aluminum Mounting Hub for 6mm Shaft, #4-40 Holes (2-Pack)

Pololu Wheel 90×10mm Pair - Black

Pololu Universal Aluminum Mounting Hub for 6mm Shaft, M3 Holes (2-Pack)

Dimensions

Weight:	11 g¹

Notes:

1: For a single bracket only (no screws or nuts).

File downloads

Pololu stamped L-bracket for 37D mm metal gearmotors mechanical drawing (81k pdf)

These dimensions apply to all brackets sold on or after June 11, 2014. The only change is the thickness of the bracket, which went from 1.5 mm to 2 mm.
Pololu stamped L-bracket for 37D mm metal gearmotors mechanical drawing (older, thinner version) (82k pdf)

These dimensions apply to all brackets sold before June 11, 2014; brackets sold after this date are 0.5 mm thicker.
3D model of Pololu Stamped Aluminum L-Bracket for 37D mm Metal Gearmotors (1MB step)

This product is listed in:

Components & Parts>Motors>Metal Gearmotors
Components & Parts>Motors>Metal Gearmotors>Mounting & Accessories
Components & Parts>Motors>Metal Gearmotors>37D mm
