Pololu Ball Caster with 1/2" Metal Ball

Rating:
100% of 100
SKU: POLOLU-953 Brand: Pololu
This ball caster uses a 1/2" diameter metal ball. The height of the assembled kit ranges from 0.5" to 0.8".
$4.70 AUD, inc GST
$4.27 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 03 and Jun 07

Quantity Discounts:

  • 10-25 $4.15 (exc GST)
  • 25+ $4.05 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

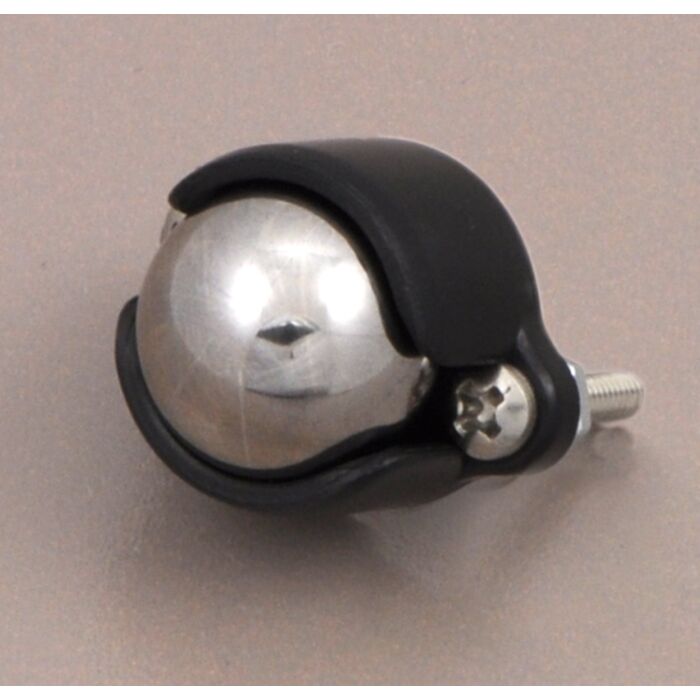

Pololu ball caster with 1/2" metal ball with included hardware.

This ball caster kit includes a black ABS housing, a 1/2" diameter metal ball, two spacers (1/16" and 1/8" thick), and two 7/16" #2 screws and nuts. The total height of the ball caster, 0.53", can be increased to about 0.7" using the included spacers. The two included #2 screws can be used to mount the ball caster to your chassis, or you can use your own #2 or M2 screws if your application requires a different length.

Note that Pololu's ball casters are designed for small robots; they are not intended to bear more than a few pounds. With more weight than this, friction between the ball and the housing will generally keep it from rolling well.

For detailed dimensions, see the dimension diagram (162k pdf).

Comparison of Pololu ball casters

Pololu ball casters with plastic and metal balls. Ball diameter from left to right: 1", 3/4", 1/2", and 3/8".

Pololu ball caster
ball diameter
height with
no spacers
distance
between
screw holes
weight with
no spacers
or screws
0.40" 0.53" 0.03 oz
0.40" 0.53" 0.14 oz
0.53" 0.58" 0.07 oz
0.53" 0.58" 0.32 oz
0.88" 0.24" 0.25 oz
0.82" 0.61" 1.05 oz
1.10" 0.48" 0.65 oz
1.10" 0.48" 0.58 oz
1.10" 0.70" 0.36 oz

People often buy this product together with:

Pololu Ball Caster with 3/8Pololu Ball Caster with 3/8" Metal Ball
Pololu Ball Caster with 1/2Pololu Ball Caster with 1/2" Plastic Ball
Pololu Ball Caster with 3/4Pololu Ball Caster with 3/4" Metal Ball

Dimensions

Ball diameter: 0.5 in
Weight: 9 g1

General specifications

Ball material: metal

Notes:

1
Without screws or spacers.
