Planetary Gearmotor - 140RPM

SKU: ROB-15277 Brand: Sparkfun

This is a simple ~140RPM (no load), DC planetary gearmotor. This motor is great for various applications such as robotics, electric locks, household automation...

$14.17 AUD, inc GST

$12.88 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 07 and Apr 10

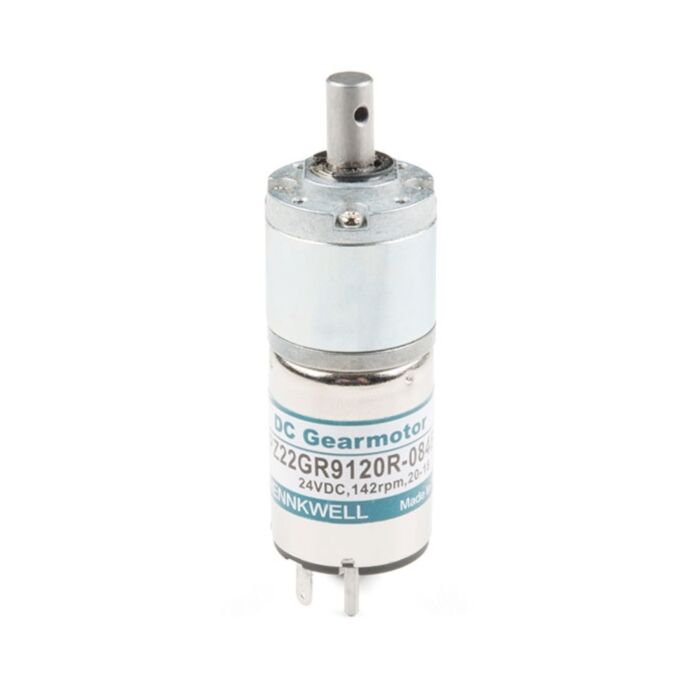

This is a simple ~140RPM (no load), DC planetary gearmotor. This motor is great for various applications such as robotics, electric locks, household automation, and small actuators.

The supply voltage range is 6VDC - 24VDC with the polarity maker at the base of the motor. The planetary gear box, mounted on top of the motor housing, gives this motor a relatively large stall torque for its size. The overall body of the motor is made of metal, with the exception of the set of planet gears on the first input gear set, which are plastic.

This planetary gearmotor has an over all body dimension of 76.1mm length with a 22mm diameter while the drive shaft is 12mm in length and 6mm in diameter.

Features

Body Dimensions:
- 22mm diameter
- 76.1mm overall length
Drive Shaft Dimensions:
- 12mm length
- 6mm diameter
Planetary Gears:
- Material: Plastic and Metal
- Gear Ratio: 1/84
- Rated Load: 1.5kgf-cm
- Min. Stall Torque: 5.6kgf-cm
Motor:
- Operating Voltage Range: 6VDC ~ 24VDC
- Bi-direction
- Graphite motor brush
- Max Stall Current: 1.3A

Documents

Datasheet
