Adafruit PiTFT Plus Assembled 320x240 2.8 TFT + Capacitive Touchscreen

SKU: ADA2423

$80.00 AUD, inc GST
$72.73 AUD, exc GST

More Views

Adafruit PiTFT Plus Assembled 320x240 2.8 TFT + Capacitive Touchscreen
80 AUD

SKU: ADA2423

$80.00 AUD, inc GST
$72.73 AUD, exc GST
3 reviews 0 5 4.7
In stock, ships today if ordered before 2PM
Delivered by Fri, 25th of Aug

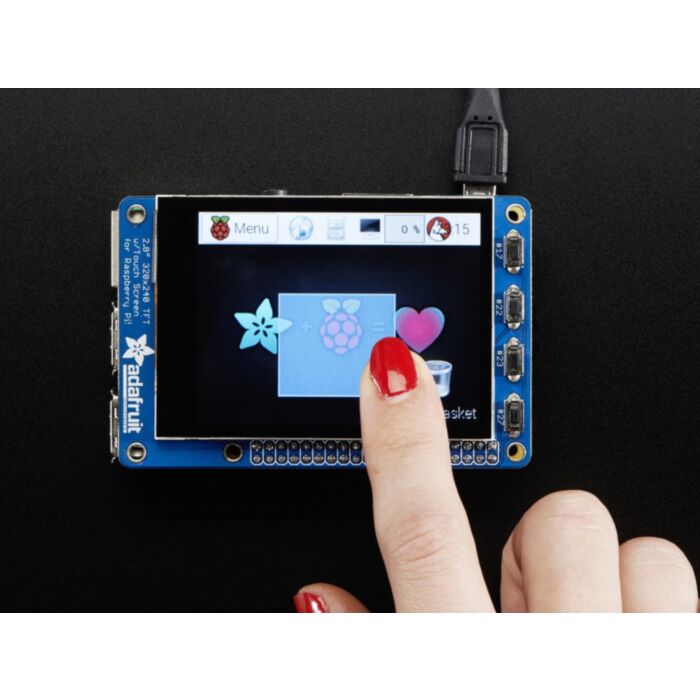

Is this not the cutest little display for the Raspberry Pi? It features a 2.8" display with 320x240 16-bit color pixels and a capacitive touch overlay. That's right, instead of a resistive touchscreen, which requires a fingernail or stylus, you can now use a fingerpad. The screen looks much nicer, with a black bezel and glass overlay. If you don't need a capacitive touchscreen, check out the resistive touch version.

This updated design fits perfectly onto the Pi Zero, Pi 3, Pi 2 or Model A+, B+! (Any Pi with a 2x20 connector) Not for use with an old Pi 1 with 2x13 connector If you'd like to use a 2.8" display with the original Pi A or Pi B, check out the Model B version. This version also has all 40 pins GPIO pins brought out so you can connect a 40-pin GPIO cable underneath. Now that it's the same outline as a Pi 3/2/B+ it fits well on top of a Pi in Adafruit's Raspberry Pi Enclosure base and can use Adafruit's faceplate for a compact touchscreen Pi

The display and touchscreen uses the hardware I2C Pins (SDA & SCL), SPI pins (SCK, MOSI, MISO, CE0) as well as GPIO #25 and #24. All other GPIO are unused and you can still share the I2C pins with sensors, LED drivers, etc. Since Adafruit had a tiny bit of space, there's 4 slim tactile switches wired to four GPIOs, that you can use if you want to make a basic user interface. For example, you can use one as a power on/off button.

Use it for console access or easily pop up X11 onto the PiTFT for a mini monitor, although its rather small at 320x240. Instead, Adafruit recommend using PyGame or other SDL-drawing programs to write onto the frame buffer.

Raspberry Pi computer and enclosure not included! As of July 22nd, 2015 this display comes fully assembled with tactile switches too

Check out Adafruit's detailed tutorial on how to play videos, display images, and otherwise customize your PiTFT.

Technical Details

  • Screen Dimensions: 50mm x 69mm x 4mm / 2" x 2.7" x 0.16"
  • PCB Dimensions: 56mm x 85mm x 11mm / 2.2" x 3.3" x 0.4"
  • Weight: 47g

Datasheets, EagleCAD PCB files, Fritzing object and more in the tutorial!

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Luke verified purchaser
    Rating
    80

    This touchscreen is responsive and easy to setup if you know how. However, it is a little difficult to use at the edges, especially if you have a faceplate on it. Otherwise awesome! (Posted on 2/10/2016)

  2. Review by Daniel verified purchaser
    Rating
    100

    Fantastic! (Posted on 29/07/2016)

  3. Review by Simon verified purchaser
    Rating
    100

    Awesome little TFT. Just that little bit clearer and nicer to use than the restrictive touch screens. (Posted on 6/06/2016)
