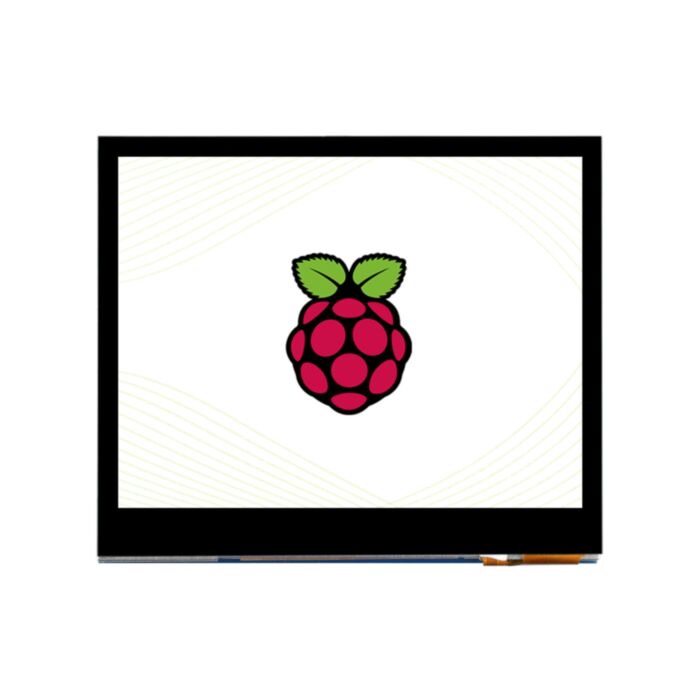

Waveshare 3.5inch LCD For Raspberry Pi, 640×480, IPS, Capacitive Touch

SKU: WS-19173 Brand: Waveshare
High accuracry colours and capacitive touch - perfect for a Raspberry Pi Interface
$51.75 AUD, inc GST
$47.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

  • 6-12 $45.16 (exc GST)
  • 12+ $43.75 (exc GST)
- +

7 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

3.5inch Capacitive Touch Screen LCD for Raspberry Pi, 640×480, DPI, IPS, Toughened Glass Cover, Low Power Solution
3.5" DPI Touch Display
  • Size3.5"
  • Resolution640×480
  • Display PortDPI666 (262K Colors)
  • Display PanelIPS
  • Viewing Angle160°
  • Touch TypeCapacitive
  • Touch Points5-Points
  • Touch PortI2C
  • Touch PanelToughened Glass
  • Power ConsumptionLow Power
Device & System Support

Raspberry Pi
Based on Raspberry Pi 40PIN GPIO header
Driven by Raspberry Pi DPI666 interface, up to 60Hz refresh rate
5-Points touch control through Raspberry Pi I2C interface
Supports systems like Raspbian, Kali...

Supports future version which is backward compatible

Connection Examples

Working with Raspberry Pi 4

Working with Raspberry Pi 3B+

Working with Raspberry Pi Zero W

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Appearance and Dimensions
Resources & Services

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumber Display Touch Audio Device Support
Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-
aker		 Signal Output Pi JETSON NANO PC
SPI DISPLAYS
PROS: low price.
CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × v × ×
3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × v × ×
3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × v × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × v × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × v × ×
4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × v × ×
DPI DISPLAYS
PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C v v × × v × ×
3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C v × × × v × ×
4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C v v × × v × ×
5inch DPI LCD 800×480 DPI IPS 160° – – × × × × v × ×
7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × v × ×
DSI DISPLAYS
PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only.
2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C v v × × v × ×
3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C v v × × v × ×
4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C v v × × v × ×
4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C v v × × v × ×
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C v × × × v × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C v × × × v × ×
4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C v × × × v × ×
5inch DSI LCD 800×480 DSI TFT – Capacitive I2C v × × × v × ×
5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C v × × × v × ×
5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C v × × × v × ×
7inch DSI LCD 800×480 DSI TFT – Capacitive I2C v × × × v × ×
7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C v × × × v × ×
7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C v × × × v × ×
7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C v × × × v × ×
7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C v × × × v × ×
7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C v × × × v × ×
7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C v × × × v × ×
7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C v × × × v × ×
7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C v × × × v × ×
8inch DSI LCD 800×480 DSI TFT – Capacitive I2C v × × × v × ×
8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C v × × × v × ×
8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C v v × × v × ×
10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C v v × × v × ×
11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C v × × × v × ×
HDMI / TYPE-C DISPLAYS
PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: somewhat costly.
2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C v v × × v v v
3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × v v Display ONLY
3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C v v × v v v v
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × v v × Display ONLY
3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × v v v
4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C v v × v v v v
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × v × Display ONLY
4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C v v × v v v v
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × v v × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × v v v v
5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C v × × v v v v
5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C v v × v v v v
5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C v × × v v v v
5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × v × ×
5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × v × ×
5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × v × v
5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × v × v
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × v v × v
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB v × × v v v v
5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB v × × × v × v
5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB v v × v v v v
5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C v v v v v v v
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB v v × v v v v
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB v v × v v × ×
5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB v v × v v × v
5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB v v × v v × ×
6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C v v v × v v v
7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB v v v v v v v
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × v × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × v × v
7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × v × v
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × v × v
7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × v × v
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × v v v v
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB v × × v v v v
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB v × × v v v v
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB v × × v v v v
7.9inch Side Monitor 400×1280 HDMI IPS 170° × × v × v × v v v
7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB v × v × v v v
8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB v v × v v v v
8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB v v v v v v v
8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C v × v v v v v
8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C v v v v v v v
8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × v × v v Display ONLY
9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB v × × v v v v
9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C v v v v v v v
9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C v × v v v v v
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × v × Display ONLY
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB v × × × v × v
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB v v × v v v v
10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB v v v v v v v
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × v v v
10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB v × v × v v v
10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB v v × v v v v
10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB v × × v v v v
10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB v v v v v v v
10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C v v v v v v v
10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB v v v v v v v
11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × v v v v
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB v v × v v v v
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB v v v v v v v
11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB v × × v v v v
11.9inch Side Monitor 320×1480 HDMI IPS 170° × × v × v × v v v
11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB v × v × v v v
12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × v v v v
12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB v v v v v v v
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB v × × v v v v
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB v × v v v v v
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB v × v v v v v
13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C v v v v v v v
14inch 2160x1440 LCD 2160×1440 HDMI/Type-C/DP IPS 178° Capacitive Type-C v v × v v v v
15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × v v v v v
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB v × × v v v v
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB v × v v v v v
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB v × v v v v v
15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB v v × v v v v
15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C v v v v v v v
18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C v v × v v v v
21.5inch FHD LCD 1080×1920 HDMI IPS 170° Capacitive Type-C v v × v v v v
21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C v v v × v v v

Have a look :
RPi LCD Comparing

Weight: 0.08 kg

Quick Overview

  1. 3.5inch DPI LCD x1
  2. Screws pack x1
1
2

This product is listed in:

Raspberry Pi>Displays

Product Comments

Exact shipping can be calculated on the view cart page (no login required).

Products that weigh more than 0.5 KG may cost more than what's shown (for example, test equipment, machines, >500mL liquids, etc).

We deliver Australia-wide with these options (depends on the final destination - you can get a quote on the view cart page):

  • $3+ for Stamped Mail (typically 10+ business days, not tracked, only available on selected small items)
  • $7+ for Standard Post (typically 6+ business days, tracked)
  • $11+ for Express Post (typically 2+ business days, tracked)
  • Pickup - Free! Only available to customers who live in the Newcastle region (must order online and only pickup after we email to notify you the order is ready). Orders placed after 2PM may not be ready until the following business day.

Non-metro addresses in WA, NT, SA & TAS can take 2+ days in addition to the above information.

Some batteries (such as LiPo) can't be shipped by Air. During checkout, Express Post and International Methods will not be an option if you have that type of battery in your shopping cart.

International Orders - the following rates are for New Zealand and will vary for other countries:

  • $12+ for Pack and Track (3+ days, tracked)
  • $16+ for Express International (2-5 days, tracked)

If you order lots of gear, the postage amount will increase based on the weight of your order.

Our physical address (here's a PDF which includes other key business details):

Unit 18, 132 Garden Grove Parade
Adamstown
NSW, 2289
Australia

Take a look at our customer service page if you have other questions such as "do we do purchase orders" (yes!) or "are prices GST inclusive" (yes they are!). We're here to help - get in touch with us to talk shop.

Have a product question? We're here to help!

Write Your Own Review

Videos

View All
How to Set Up a Raspberry Pi Kiosk - Launch a Fullscreen Web ...
Raspberry Pi 5 Vs Raspberry Pi 4 Model B | Comparison & Benc ...
Raspberry Pi 5 | Review, Performance & Benchmarks
Waveshare 5.5 Inch AMOLED Screen for Raspberry Pi

Guides

How to Set Up a Raspberry Pi Kiosk - Launch a Fullscreen Webpage on Boot!

How to Set Up a Raspberry Pi Kiosk - Launch a Fullscreen Webpage on Boot!

By Jaryd
Date 16 August 2024
In this guide, we will be transforming your Raspberry Pi into a bespoke device to interface humans ...
#raspberry pi #pi #kiosk
In this guide, we will be transforming your Raspberry Pi into a bespoke device to interface humans ...
#raspberry pi #pi #kiosk
Raspberry Pi 5 Vs Raspberry Pi 4 Model B | Comparison & Benchmarking

Raspberry Pi 5 Vs Raspberry Pi 4 Model B | Comparison & Benchmarking

By Jaryd
Date 04 October 2023
The Raspberry Pi 5 is here and one of the biggest questions is, how does it stack up against the pr...
#raspberry pi
The Raspberry Pi 5 is here and one of the biggest questions is, how does it stack up against the pr...
#raspberry pi
Raspberry Pi 5 | Review, Performance & Benchmarks

Raspberry Pi 5 | Review, Performance & Benchmarks

By Jaryd
Date 04 October 2023
The Raspberry Pi 5 is here! Our favourite credit card-sized computer has just gotten an update and ...
#raspberry pi
The Raspberry Pi 5 is here! Our favourite credit card-sized computer has just gotten an update and ...
#raspberry pi
Waveshare 5.5 Inch AMOLED Screen for Raspberry Pi

Waveshare 5.5 Inch AMOLED Screen for Raspberry Pi

By Tim
Date 15 February 2023
Ever wanted a pocket computer with a Full HD screen (1080x1920)? Love tiny GPIO screens like this ...
#pi #raspberry #screen #tiny #touch #5.5 #amoled
Ever wanted a pocket computer with a Full HD screen (1080x1920)? Love tiny GPIO screens like this ...
#pi #raspberry #screen #tiny #touch #5.5 #amoled

Projects

safePower

safePower

By Tim
Date 05 December 2021
I like working with the Pi Zero W and Pi 4 as they are very compact, very powerful and very cheap fo...
#raspberry pi #lipo #raspberry pi pico #ups
I like working with the Pi Zero W and Pi 4 as they are very compact, very powerful and very cheap fo...
#raspberry pi #lipo #raspberry pi pico #ups
ESP32 IR-Triggered Camera with Home Assistant Integration

ESP32 IR-Triggered Camera with Home Assistant Integration

By Diego
Date 06 February 2022
I love the ESP line-up. I started by messing around with the ESP8266 and I completely fell in love w...
#camera #printing #esp32 #3d #diy
I love the ESP line-up. I started by messing around with the ESP8266 and I completely fell in love w...
#camera #printing #esp32 #3d #diy
LuMa 1 - The Neo Disco Ball

LuMa 1 - The Neo Disco Ball

By Tim
Date 14 April 2022
It is real and here it is! Including everything you need to make one a Luma 1 for yourself! S...
#raspberry pi #3d printing #leds #luma #mirrors
It is real and here it is! Including everything you need to make one a Luma 1 for yourself! S...
#raspberry pi #3d printing #leds #luma #mirrors

Educational Workshops

Raspberry Pi Workshop for Beginners

Raspberry Pi Workshop for Beginners

By Michael
Date 30 May 2022
Welcome to the Raspberry Pi Workshop for Beginners! Here you'll be able to follow along with our s...
#raspberry pi #workshop
Welcome to the Raspberry Pi Workshop for Beginners! Here you'll be able to follow along with our s...
#raspberry pi #workshop
Feedback

Please continue if you would like to leave feedback for any of these topics:

  • Website features/issues
  • Content errors/improvements
  • Missing products/categories
  • Product assignments to categories
  • Search results relevance

For all other inquiries (orders status, stock levels, etc), please contact our support team for quick assistance.

Note: click continue and a draft email will be opened to edit. If you don't have an email client on your device, then send a message via the chat icon on the bottom left of our website.

Follow us on instagram

@coreelectronics

About Us

Core Electronics is a maker education and retail company based in Newcastle Australia. We specialise in DIY electronics, desktop manufacturing and educational technology.

sign up for maker mail!
Payment

Have a product question? We're here to help!

Makers love reviews as much as you do, please follow this link to review the products you have purchased.

Copyright © Core Electronics. All rights reserved.
