Pimoroni Pico Plus 2 - RP2350 Dev Board with Pico Shape and Pins - PIM724

SKU: ADA6244 Brand: Adafruit

The Pimoroni Pico Plus 2 is a top of the line Pirate-brand RP2350 microcontroller with 16MB of flash memory, 8MB of PSRAM, USB-C, Qw/ST, and debug...

$37.05 AUD, inc GST

$33.68 AUD, exc GST

Available with a lead time
Expect dispatch between Aug 14 and Aug 18

Quantity Discounts:

10+ $32.34 (exc GST)
25+ $31.33 (exc GST)

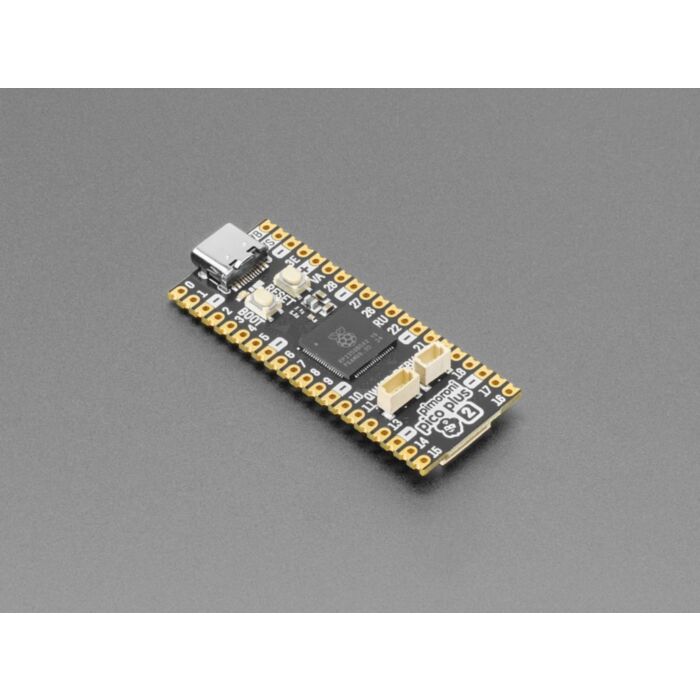

The Pimoroni Pico Plus 2 is a top of the line Pirate-brand RP2350 microcontroller with 16MB of flash memory, 8MB of PSRAM, USB-C, Qw/ST, and debug connectors. It's an excellent 'drop in' upgrade to the classic Pico 2 when you need MOAR power and memory.

Adafruit adore the versatility and value of Raspberry Pi Pico 2, but They also enjoy a souped-up RP2350 board with all the extras baked in. The team at Pimoroni crammed in as much extra functionality as they possibly could whilst keeping to the original Pico footprint to maintain compatibility with existing Pico add-ons.

Check out Adafruit's collection of PiCowbells for ways to extend/expand your Pico Plus's hardware capabilities

Pimoroni Pico Plus 2 has the same shape and pinout as the classic Pico 2 but with the 'B variant of the RP2350 which lets them shoehorn in so much more:

powered and programmable via USB-C
comes with an upgraded 8MB PSRAM
16MB of flash storage
Easy-to-read pin labels. It's super easy to connect up to things without soldering
Qwiic/Stemma connector (for adding I2C sensors and breakouts via cable)
SP/CE connector (for hooking up SPI/serial devices via cable)
JST-SH Debug connector (for if you like to program using a SWD debugger)
Reset button (luxury!)
BOOT button, which can also be used as a user switch.
Supported with Pico SDK, Arduino, MicroPython & CircuitPython

Technical Details

Getting Started

Features

Powered by RP2350B (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
16MB of QSPI flash supporting XiP
8MB of PSRAM
USB-C connector for power, programming, and data transfer
Qw/ST (Qwiic/STEMMA QT) connector for attaching breakouts
Intriguing SP/CE connector
3 pin debug connector (JST-SH)
Reset and BOOT buttons (the BOOT button can also be used as a user button)
User LED indicator
On-board 3V3 regulator (max regulator current output 600mA)
Input voltage range 3V - 5.5V
Compatible with Raspberry Pi Pico add-ons
Measurements: approx 53mm x 21mm x 9mm (L x W x H, including connectors)

Notes

The user LED is wired to GP25, just like an ordinary Pico. You can blink it in exactly the same way!
As well as being useful for putting your Pico Plus 2 into bootloader mode, you can also use the BOOT button as a user button. It's wired to GP45 and active low.
