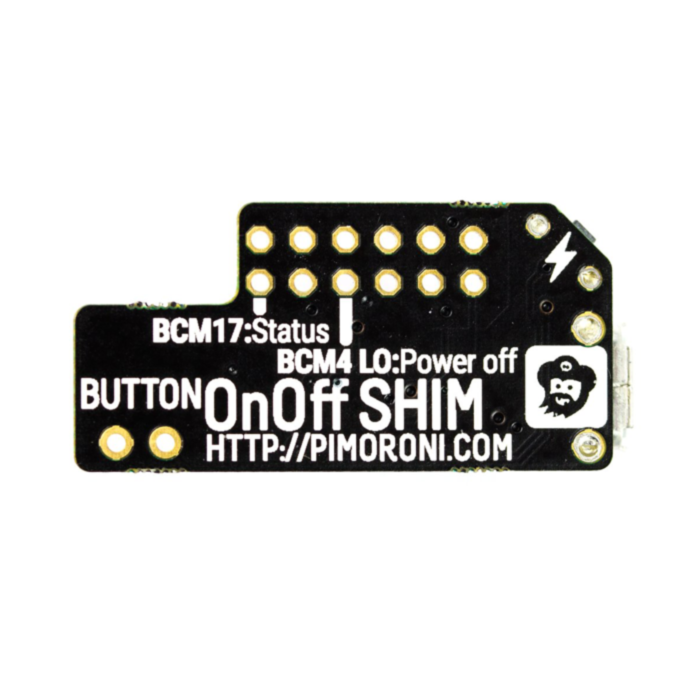

Pimoroni OnOff SHIM for Raspberry Pi

Rating:
100% of 100
SKU: PIM269 Brand: Pimoroni
Add a tiny yet convenient power switch to your Pi with Pimoroni's On-Off SHIM! Pimoroni's SHIMs (Shove Hardware in the Middle) are a new range of boards designed...
$14.50 AUD, inc GST
$13.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $12.78 (exc GST)
  • 25+ $12.53 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Add a tiny yet convenient power switch to your Pi with Pimoroni's On-Off SHIM!

Pimoroni's SHIMs (Shove Hardware in the Middle) are a new range of boards designed to be small, affordable, and handy. They're just 0.8mm thick (the bare board, not including mounted components) and designed to be soldered straight onto the GPIO pins of your Pi, if you wish, so that you can use them with HATs and pHATs on top.

Usage

Just plug your micro-USB power supply into the micro-B connector on OnOff SHIM, and then press the button once to switch on power and boot up your Pi. After installing our software (details below), you can press the button again to initiate a clean shutdown and completely cut the power to your Pi.

Features

  • Super-small SHIM-format board
  • 0.8mm thick PCB
  • Can be used with HATs and pHATs
  • Corner-mounted push button for on/off
  • Micro-B connector for power supply
  • Red status LED
  • Optional breakout pins to connect an external momentary button
  • 2x6 female header included
  • Supports up to 2.5A power supply
  • Software daemon to shutdown cleanly
  • Requires soldering
Technical Details

Software

Pimoroni put together a one-line-installer to install the clean shutdown daemon. It watches the state of BCM pin 17 and, when pulled low (pressed), it initiates a clean shutdown. Last thing, just before your Pi shuts down, BCM pin 4 is pulled low to completely cut power to your Pi.

To install the software, open a terminal and type curl https://get.pimoroni.com/onoffshim | bash to run the one-line-installer.

For product support, replacement parts and warranty for Pimoroni products visit our Maker Forum.

Product Dimensions: 33.4mm x 16.1mm x 3.6mm / 1.3" x 0.6" x 0.1"

Product Weight: 1.3g / 0.0oz
