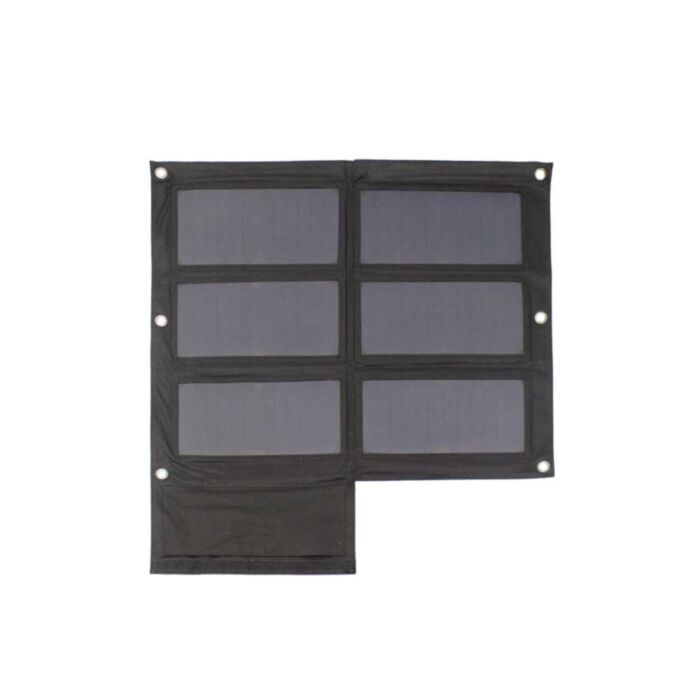

The PiJuice 40 Watt Solar panel is the ideal way to charge and/or power your PiJuice HAT and Raspberry Pi for free when you're in a sunny location. By using a solar panel and PiJuice, containing our revolutionary PiAnywhere technology, you can truly take your Raspberry Pi off the grid!
- Highly portable - a large 40 watt panel that folds down and velcros into a super compact size. Easy to pack up and go
- Easily mountable - three metal eye-holes on each edge (6 total) allow easy attachment to backpacks, trees, or tents
- Has a useful velcro storage pouch for storing any essential items
- Lightweight - The panel weighs only 900 grams
- Water resistant up to IPX4 rating
- Incredibly durable stitching and construction
- Two Regulated 5v/2.4A USB outputs and a 19 volt DC jack - it works with your PiJuice, smartphones, tablets, audio players and more!
- Features SunPower solar panels which provide industry-leading solar conversion efficiency
- Solar panel - 6.5 volts / 40 watts
- Regulated Max output - 5 volts / 35 watts
- Single USB max output - 12 watts (there are two on board which can be used simultaneously)
- Includes 19 volt DC jack output
- Built in smart-power chip
- Boxed dimensions - 34.7 x 17.1 x 5.1cm
- Unboxed, folded dimensions - 33 x 16 x 4cm
- Unboxed, unfolded dimensions - 70.5 x 65 x 1.8cm
- Boxed weight - 1.1kg
- Unboxed weight - 0.9kg
- Country of origin - China
- CE and FCC tested
- PiJuice Solar Panel - 40 Watt
- USB to microUSB Cable
- User Manual
