Panel Mount HDMI Socket to Terminal Block Breakout

SKU: ADA3120

$9.95 AUD, inc GST
$9.05 AUD, exc GST

More Views

Panel Mount HDMI Socket to Terminal Block Breakout
9.95 AUD

SKU: ADA3120

$9.95 AUD, inc GST
$9.05 AUD, exc GST
1 reviews 0 5 5

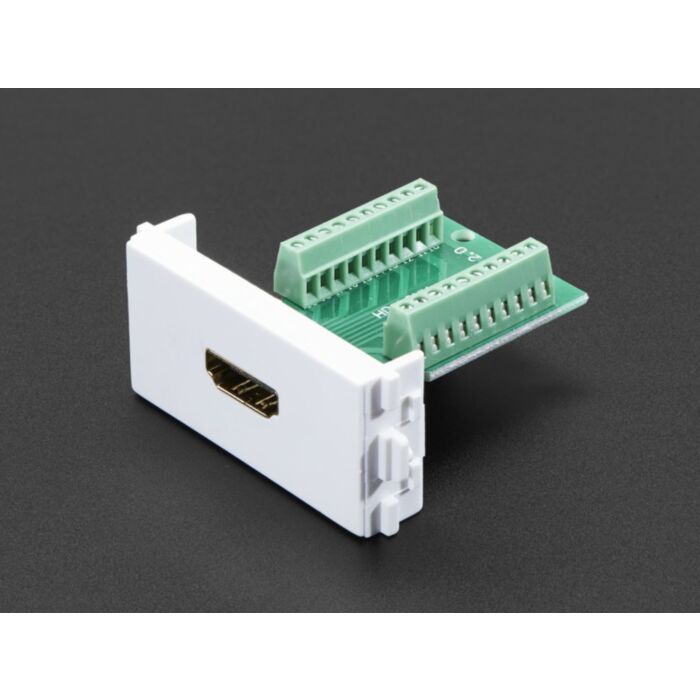

Make your own custom HDMI input or HDMI interface with ease, using this HDMI Socket to Terminal Block Breakout. You get a nice solid PCB with an HDMI socket and two strips of terminal blocks that you can use with stranded or solid core wire to assemble your own wiring jigs.

Adafruit recommend this adapter when you have some unusual setup like wiring HDMI directly to your FPGA or wiring needs like splicing off the I2C or power pins.

Comes with one fully assembled breakout and a panel mounting.

Technical Details

Product Dimensions: 55.0mm x 49.6mm x 24.5mm / 2.2" x 2.0" x 1.0"

Product Weight: 16.1g / 0.6oz

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by George verified purchaser
    Rating
    100

    I had to replace a broken HDMI plug on a cable that ran behind a wall and would have been a nightmare to replace. I used one of your HDMI plug breakout boards. Using this socket at the unbroken end with a couple of metres of hookup wire and a multimeter made a simple tester that allowed me to easily match the 20 conductors with the right pins. Worked perfectly. Thanks guys. (Posted on 8/12/2017)
