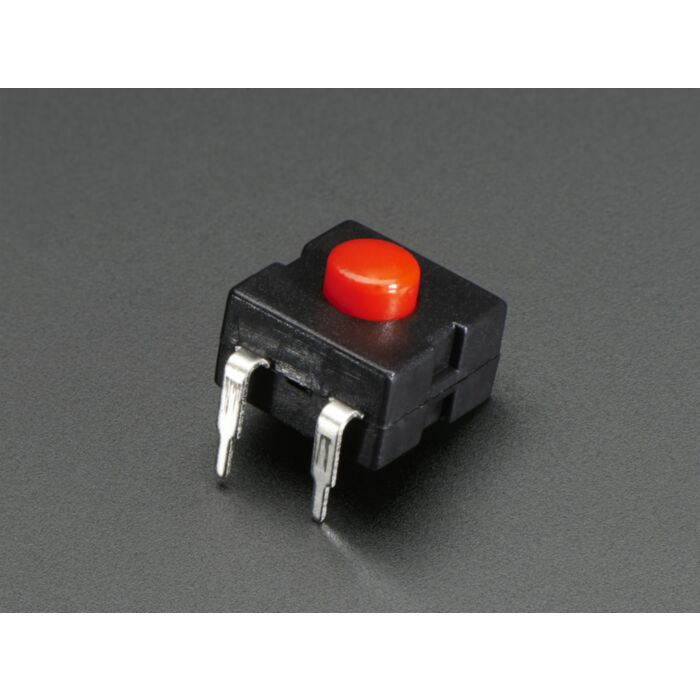

On-Off Power Button / Pushbutton Toggle Switch

Rating:

100% of 100

SKU: ADA1683 Brand: Adafruit

Push once to turn on, push again to turn off! This clicky switch makes a great power switch or mode toggler. Adafruit like this switch because it's breadboard friendly...

$3.85 AUD, inc GST

$3.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $3.36 (exc GST)
25+ $3.25 (exc GST)

Push once to turn on, push again to turn off! This clicky switch makes a great power switch or mode toggler. Adafruit like this switch because it's breadboard friendly and more fun than a power switch. Can reliably handle up to 500mA and up to 50V. This is a really satisfying switch.

The leads are not on a perfect 0.1" grid so for use with a breadboard just bend the leads out just a tad and snap into a solderless breadboard or perfboard.

Technical Details

Ambient Temperature: -25ºC ~ 70ºC
Rated Load: 50V @ 0.5A
Contact Resistance: =50mO
Operating force: 5N ~ 12N

Dimensions:

12mm x 12mm x 7mm / 0.5" x 0.5" x 0.3"
Length of Pins: 4mm / 0.2"
Distance Between Pins: 7mm / 0.3"
Weight: 1.2g

This product is listed in:

Components & Parts>Switches>Pushbutton Switches
Components & Parts>Switches>Toggle Switches
