OAK-D Pro W
Available with a lead time
Expect dispatch between May 27 and Jun 12
Quantity Discounts:
- 3-6 $750.50 (exc GST)
- 6+ $727.05 (exc GST)

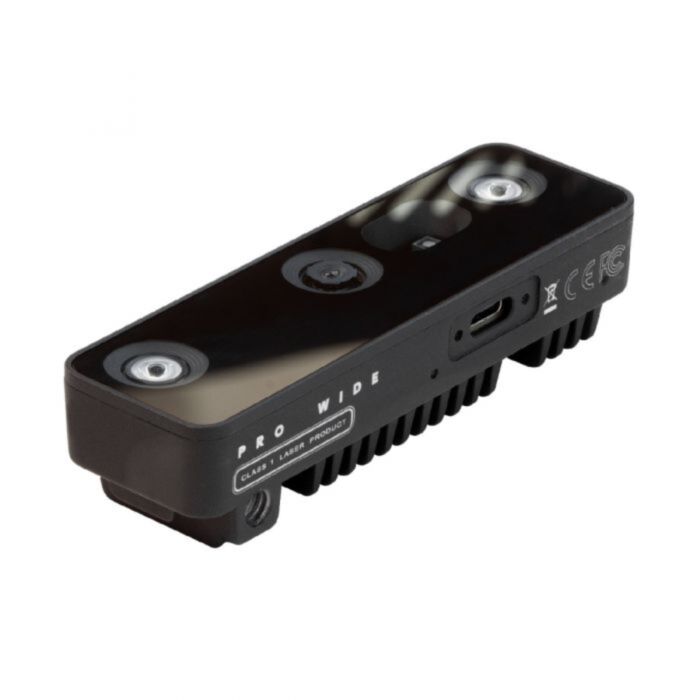

OAK-D Pro W: The Pinnacle of Robotic Vision Technology
Introducing the OAK-D Pro W, a cutting-edge camera designed to revolutionize robotic and machine vision. Engineered to mimic human perception, this device integrates a wide active stereo depth camera and a high-resolution color camera, enhanced with on-device Neural Network inferencing and Computer Vision (CV) capabilities. Its night vision feature ensures exceptional performance in low-light and no-light environments, making it the ideal choice for applications demanding superior stereo depth perception across diverse conditions.
Whether it's for multi-camera setups, Autonomous Mobile Robots (AMRs), or object tracking and counting, the OAK-D Pro W's wide Field of View (FOV) captures extensive areas in a single shot. This capability is crucial for reducing the number of cameras needed for full coverage, enhancing feature detection for localization and 3D mapping, and improving vehicle or people counting over larger areas.
Key Features
- Unparalleled processing power with 4 TOPS (1.4 TOPS dedicated to AI - RVC2 NN Performance).
- Active stereo vision enhanced by an IR dot projector for improved depth perception on low-visual-interest surfaces.
- Advanced night vision capabilities through IR illumination LED, supporting AI and CV algorithms in challenging light conditions.
- Compatibility with any AI model, including custom-designed architectures (conversion required).
- Comprehensive encoding options: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS.
- Robust computer vision functionalities including warp, resize, crop, edge detection, and feature tracking, alongside support for custom CV functions.
- Enhanced stereo depth perception with filtering, post-processing, RGB-depth alignment, and extensive configurability.
Technical Specifications
| Central RGB Camera | |
|---|---|
| Sensor | IMX378 |
| DFOV / HFOV / VFOV | 120° / 95° / 70° |
| Resolution | 12MP (4056x3040) |
| Focus | FF: 60cm - ∞ |
| Max Framerate | 60 FPS |
| Stereo Pair Cameras | |
| Sensor | OV9282 |
| DFOV / HFOV / VFOV | 150° / 127° / 79.5° |
| Resolution | 1MP (1280x800) |
| Focus | FF: 18 cm - ∞ |
| Max Framerate | 120 FPS |
Package Contents
- OAK-D Pro W camera
- Cable USB-CA-1m
