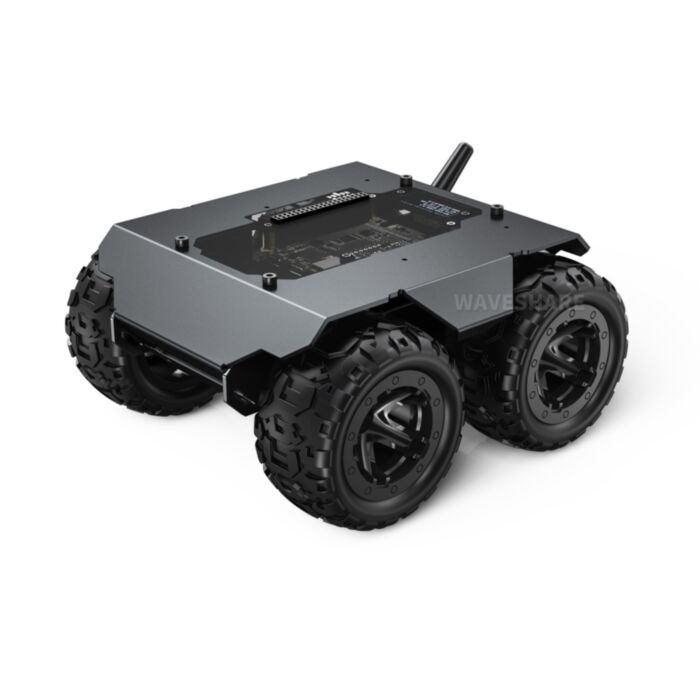

WAVE ROVER (With ESP32 Module)

SKU: WS-25376 Brand: Waveshare

WAVE ROVER Flexible And Expandable 4WD Mobile Robot Chassis, Full Metal Body, Multiple Hosts Support, With Onboard ESP32 Module...

$189.95 AUD, inc GST

$172.68 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 31 and Feb 03

Quantity Discounts:

5-10 $167.50 (exc GST)
10+ $164.05 (exc GST)

Recommended Essentials:

18650 Lithium Ion (Li-Ion) and NiMH USB Battery Charger

$22.95

WAVE ROVER Flexible And Expandable 4WD Mobile Robot Chassis, Full Metal Body, Multiple Hosts Support, With Onboard ESP32 Module

Does not include battery charger, we recommend this 18650 charger

Features

TheWAVE ROVER is a full metal body 4WD mobile robot chassis, which features superb off-road crossing ability and shock-absorbing performance, open source all code for secondary development. It supports multiple host computers (Raspberry Pi, Jetson Nano, Jetson Orin Nano, etc), the host computer can communicate with the ESP32 slave computer through the serial port. Equipped with four N20 geared motors using a high-quality gearbox, which allows the mobile robot to drive at high speed with great power.Built in 3S UPS power supply module, supports 3 x 18650 Li batteries (in series, NOT included), which provides uninterruptible power for the robot and supports charging and power output at the same time. Built in multi-functional robot driver board, based on ESP32, with onboard WIFI and Bluetooth, for driving serial bus servos, outputting PWM signal, expanding TF card slot, etc.

TheWAVE ROVER adopts flexible rubber tires which greatly reduce the impact of complex terrains, can easily meet the needs of high-speed driving, shock absorption, and off-road. Comes with a mounting plate, can be used to install the host computers (Raspberry Pi 4B, Jetson Nano, Jetson Orin Nano, etc.), LD19/STL-27L lidar, and pan-tilt camera, providing more possibilities for secondary development.

Specifications

Outline dimensions	194×168×100mm	Tire material	Nylon wheel hub, rubber tire
Chassis height	33.70mm	OLED screen	0.91inch
Tire width	42.50mm	Running speed	1.25m/s
Tire diameter	80mm	Number of driving wheels	4
Motor	N20 12V 200RPM × 4	Body material	2mm (thickness) 5052 Aluminum Alloy
Weight	860g	Vertical obstacle ability	40mm
Driving payload	0.8kg	Climbing ability	22°
Battery support	18650 Lithium battery × 3 (NOT Included)	Minimum turning radius	0m (In-situ Rotation)
Motor power	1.5W × 4	Remote control function	WIFI AP/STA
Upper surface area	17551mm²	Communication interface	UART / serial bus servo interface / I2C

Connect to Jetson Orin Nano

Connect to Raspberry Pi 4B

Connect to Raspberry Pi Zero

? About the slave computer driver board, please refer to General-Driver-for-Robots product page for more details. ? The driver board has onboard UART to USB circuit for data transmission between Lidar and the host computer.Dimensions

Resources

Wiki for Wave Rover

This product is listed in:

Robotics>Kits
