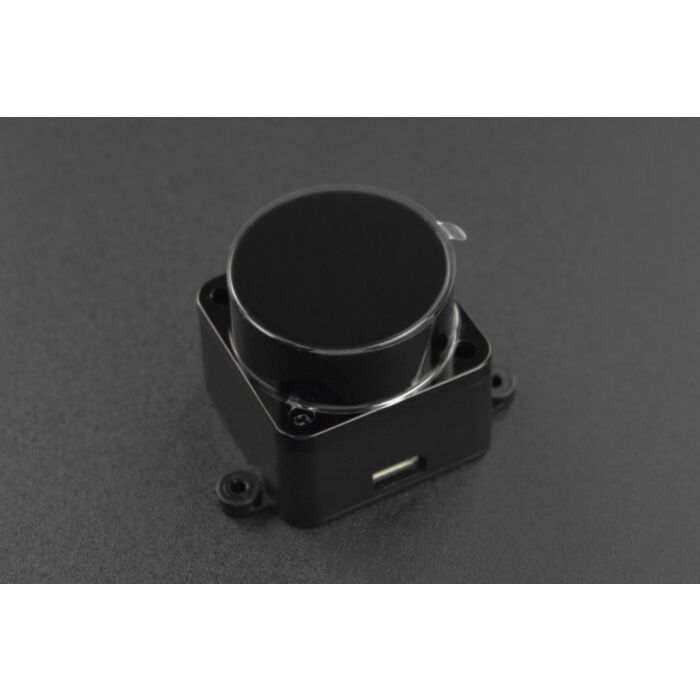

DTOF LD19 Laser LiDAR Sensor Kit (12m)

SKU: SEN0547 Brand: DFRobot

This compact 360° LD19 LiDAR sensor can resist the strong light of 30Klux and thus it is suitable for both indoor and outdoor high-precision distance...

$214.95 AUD, inc GST

$195.41 AUD, exc GST

Quantity Discounts:

5-10 $189.55 (exc GST)
10+ $185.64 (exc GST)

Out of Stock

DTOF LD19 LiDAR Sensor Kit

This LD19 LiDAR sensor offers a ranging distance of up to 12m and 360° environmental scanning, which can realize autonomous mapping, and obstacle detection.

DTOF LD19 LiDAR Sensor Kit

The sensor is compact and light, and its size nearly equals to a ping-pong ball and the weight nearly to 2 AA dry batteries.

DTOF LD19 LiDAR Sensor Kit

Also, it can resist the strong light of 30 Klux, which achieves high-precision distance measurement indoors and outdoors.

The provided SDK works well with both ROS1 and ROS2 systems.

DTOF LD19 LiDAR Sensor Kit

And the adopted brushless motor boasts long-lasting operation with high-speed data transmission.

DTOF LD19 LiDAR Sensor Kit

High cost-effective LiDAR, wide range of applications.

It is recommended to use it in drones, robot obstacle avoidance, smart sweeper, gesture control, 2D gesture recognition, etc.

DTOF LD19 LiDAR Sensor Kit

Features

Distance measurement up to 12m radius

Compact and stylish

Anti-Strong Light Interference

Long Lasting

Applications

Education

Scientific Research

Frequency of shelf visits

Robot obstacle avoidance

Autonomous navigation

Navigation and positioning

Specification

Model: LD19

Ranging Distance: 0.02m~12m (target reflectivity of 70%)

Ranging Frequency: 4500Hz

Scanning Frequency: 10Hz(Typical)

Ranging Average Accuracy: ±45mm (0.3m~12m)

Ranging Standard Deviation: 10mm (0.3m~12m)

Measurement Resolution: 15mm

Scanning Range: 360°

Angle Error: ±2°

Angle Resolution: 0.8°@10Hz

Ambient Light Resistance: 30KLux

Laser Wavelength: 895~915nm(Typical 905nm)

Pitch Angle: 0-2°

Input Voltage: 5V

Operating Current: 180mA

Product Power: 0.9W

Dimensions: 38.59*38.89*33.50mm/1.52*1.53*1.32” (L*W*H)

Weight: 47g

Baud Rate: 230400

Communication Interface: UART (3.3V level)

Operating Temperature: -10°C ~ 40°C

Storage Temperature: -30°C ~ 70°C

Motor: Brushless Motor

Documents

LD19 Raspberry Pi Raspbian User manual_v2.9

LD19_Datasheet_v2.5

LD19_Development_Manual_v2.5

LD19_SDK

LiDAR_LD19_3D_STP_V1.0

Parts List

LD19 LiDAR Sensor ×1

Adapter Board ×1

4PIN Cable ×1

USB Cable ×1
