Non-invasive AC Current Sensor (20A max) (Seeed Studio)

SKU: SS101990061 Brand: Seeed Studio

Introduction: What is CT sensors Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for...

$20.15 AUD, inc GST

$18.32 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 27 and Dec 30

Quantity Discounts:

10-25 $17.58 (exc GST)
25+ $17.04 (exc GST)

What are CT sensors

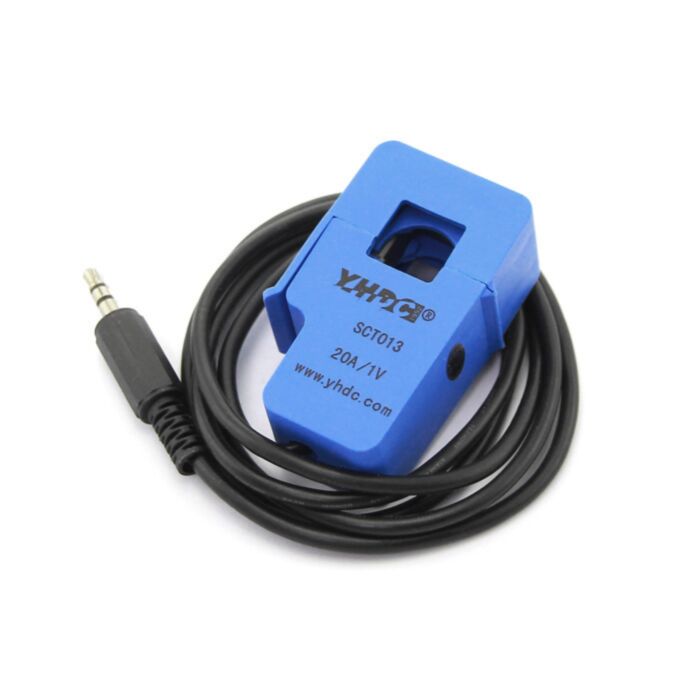

Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter). The split-core type such as the CT in the picture above, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.

Applications

Suitable for current measuring
Monitoring and protection of AC motors
Lighting equipment
Air compressors

Specifications

Turns Ratio: 1800:1
Input Current: 0~20A AC
Output Mode: 0~1V
Non-linearity: ±3%
Build-in sampling resistance(RL): 93Ω
Resistance Grade: Grade B
Work Temperature: -25°C ~ 70°C
Dielectric Strength(between shell and output): 1000V AC/1min 5mA
Leading Wire in Length: 1m
Open Size: 13mm x 13mm
Fire resistance property: in accordance with UL94-VO
