Raspberry Pi Compute Module 4 IO Board

Rating:
100% of 100
SKU: CE07363 Brand: Raspberry Pi Guides (2)
Exposing every interface from Raspberry Pi Compute Module 4, the Compute Module 4 IO Board provides a development platform and reference base-board design for Raspberry Pi's most powerful Compute Module yet.
$83.10 AUD, inc GST
$75.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 13th of Nov

Quantity Discounts:

  • 6+ $74.41 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

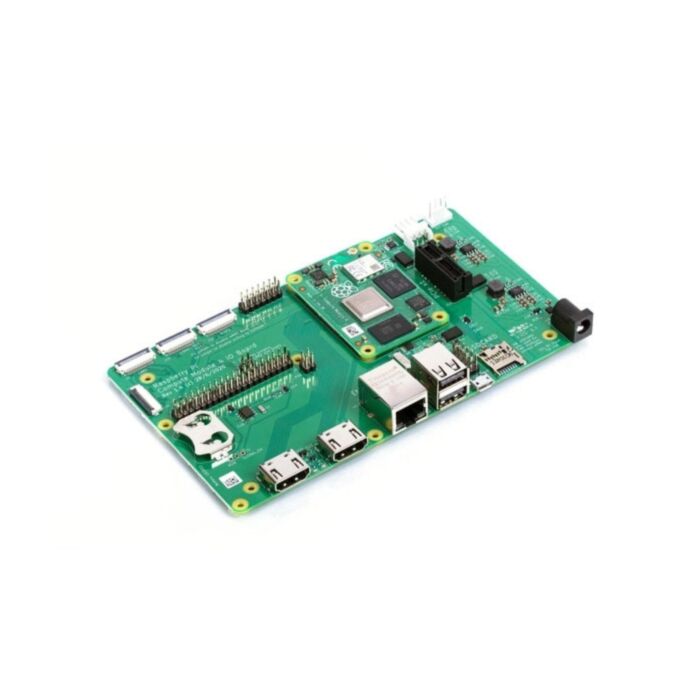

Exposing every interface from Raspberry Pi Compute Module 4, the Compute Module 4 IO Board provides a development platform and reference base-board design for Raspberry Pi'smost powerful Compute Module yet. Please note that the compute module is not included, and is only in the image for purposes of scale.

Specifications

  • External power connector (+12V, +5V)
  • 2 x full-size HDMI 2.0 connectors
  • 2 x USB 2.0 connectors, with header for two additional connectors
  • Gigabit Ethernet RJ45 with PoE support
  • Micro USB socket for updating Compute Module 4
  • MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
  • PCIe Gen 2 x1 socket
  • Standard fan connector
  • 2 x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable)
  • 2 x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable)
  • Standard Raspberry Pi HAT connectors
  • Real-time clock with battery socket and ability to wake Compute Module 4
  • Various jumpers to disable specific features, e.g. wireless connectivity, EEPROM writing

Documents

The CM4 IO Board KiCad design files require features that are not present in the current stable release of KiCad. Please install the latest nightly build. Nightly builds for your operating system are available from the KiCAD Downloads page.

Compliance

The Raspberry Pi Compute Module 4 IO Board has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at raspberrypi.org/compliance.

If you are integrating the Compute Module 4 IO Board into a product and need assistance with compliance, the Raspberry Pi Integrator Programme can help: more information and contact details here.
