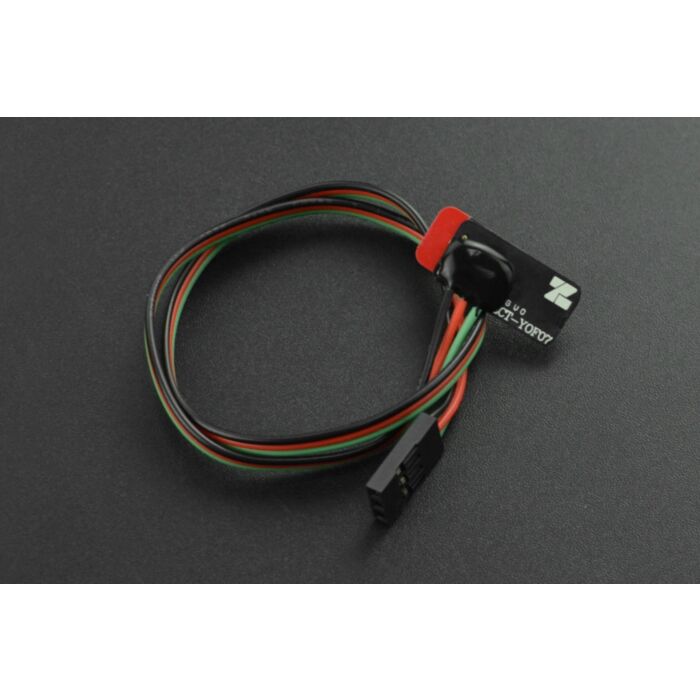

Non-contact Flexible Liquid Level Sensor

SKU: SEN0508 Brand: DFRobot

This non-contact capacitive liquid level sensor uses flexible substrate with light and thin design. With temperature-resistant and waterproof 3M adhesive...

$17.05 AUD, inc GST

$15.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 29th of Apr

Quantity Discounts:

10+ $14.88 (exc GST)
25+ $14.42 (exc GST)

This non-contact capacitive liquid level sensor uses a flexible substrate with a light and thin design. With temperature-resistant and waterproof 3M adhesive tape on the back, it can be easily attached to surfaces of any kind of non-conductive container whose thickness is less than 5m.

The sensor outputs digital high/low level (low when liquid detected) and adopts 3-pin DuPont connector, which can be widely used in water tank detection, beverage machine, water pipe level detection, scientific experiment test tube level detection and other scenarios.

Working Principle

The intelligent liquid level sensor uses the sensing capacitance of water to detect the presence of liquid. When there is no liquid approaching the sensor, the sensor has a certain static capacitance due to the distributed capacitance. When the liquid level slowly rises close to the inductor, the parasitic capacitance of the liquid will be coupled to the static capacitor, causing the final capacitance of the inductor to become larger. The changed capacitance signal is then input to the control IC for signal conversion, which will change. The capacitance is converted into the amount of change of an electrical signal, and then a certain algorithm detects and judges the degree of the change. When the amount of change exceeds a certain threshold, the liquid level is considered to reach the sensing point.

Features

Light and thin design
Can be attached to surfaces of non-conductive containers

Specification

Working Voltage: 2.5~5.5VDC
Working Current: 5V290uA 3V235uA
Output: low (liquid detected), high level(no liquid detected)
Detection Distance: 5mm
Hysteresis: ±0.25%FS
Protection Level: IP62
Working Temperature: -30~85°C
Weight: 2g

Documents

Product wiki

Parts List

Flexible Non-contact Liquid Level Sensor x1
