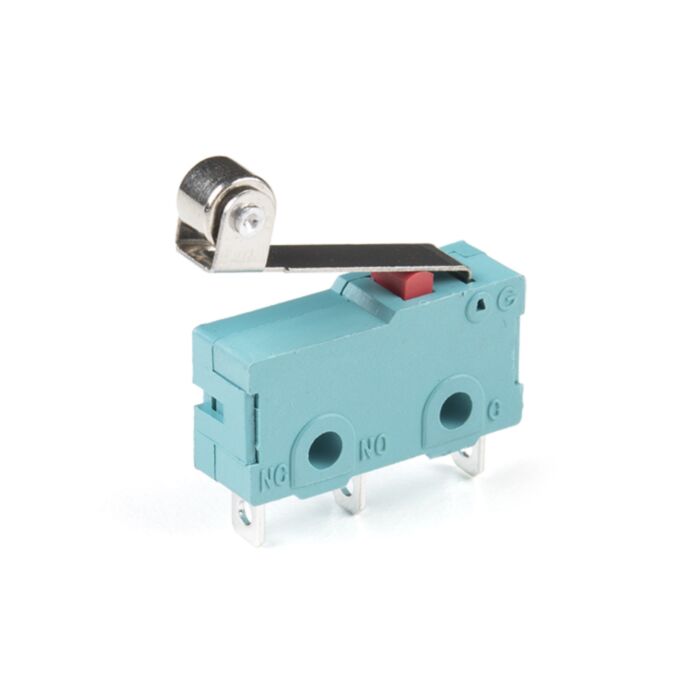

Mini Microswitch - SPDT (Roller Lever)

SKU: COM-18161 Brand: Sparkfun

Although small in size, KW4-Z5F roller microswitches are rated for controlling electrical loads ranging from logic level (computer based circuits) to power duty...

$2.70 AUD, inc GST

$2.45 AUD, exc GST

Available with a lead time
Expect dispatch between Sep 06 and Sep 09

Quantity Discounts:

10-25 $2.38 (exc GST)
25+ $2.34 (exc GST)

Although small in size, KW4-Z5F roller microswitches are rated for controlling electrical loads ranging from logic level (computer based circuits) to power duty switching (up to 16.1 A and 250 Vac). The package size of the subminiature switch is ideal for applications where space on the equipment is at a premium. The overall length of KW4-Z5F roller microswitch are less than 20 mm [0.78 in].

Features

Housing: Nylon 66
Terminal: Brass with silver plating
Contact Configuration: SPDT
Rating: 5A 250VAC / 10A 125VAC
Contact Resistance: ≤30mΩ
Insulation Resistance: ≥100mΩ (500VDC)
Dielectric Strength: 1500VAC 1 minute
Lever: Roller lever
Switch Operation: OFF - momentary ON
Operating Temperature: -25?~+85?
Ambient Temperature Used:<85% RH
Electrical Life: ≥ 10,000 Cycles
Mechanical Life: ≥ 100,000 Cycles
Compliance - EU "CE" certified
