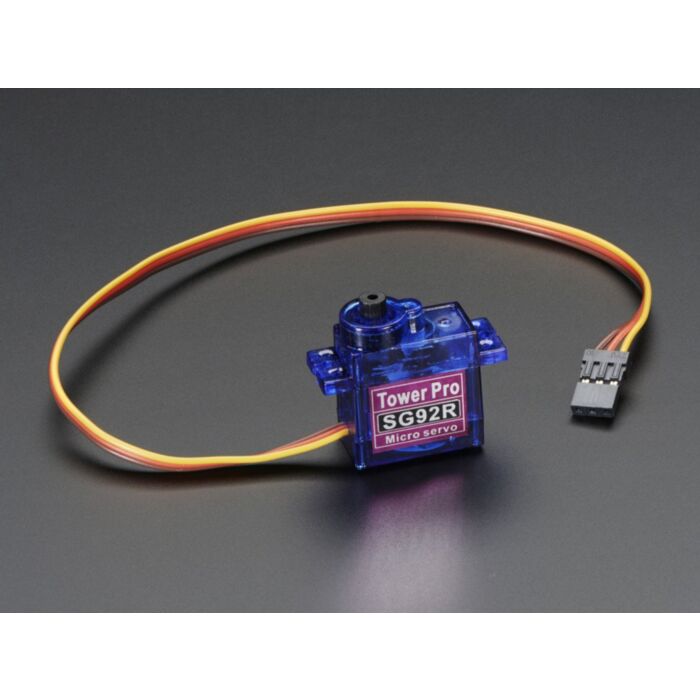

Micro servo - SG92R

SKU: ADA169 Brand: Adafruit
Tiny little servo can rotate approximately 180 degrees (90 in each direction), and works just like the standard kinds you're used to but smaller. You can use any...
$12.80 AUD, inc GST
$11.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 10th of Dec

Quantity Discounts:

  • 10-25 $11.29 (exc GST)
  • 25+ $11.05 (exc GST)
- +

15 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

If this product is unavailable, we have alternatives here

Tiny little servo can rotate approximately 180 degrees (90 in each direction), and works just like the standard kinds you're used to but smaller. You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. Of course, its not nearly as strong as a standard servo. Works great with the Motor Shield for Arduino or by just wiring up with the Servo library. Comes with a few horns and hardware.

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (see here for an example sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left.

Technical Details

Details:

  • Size : 23x11x29 mm
  • Voltage : 3V to 6V DC
  • Weight: 9g / 0.32oz
  • Speed : 0.1 sec/60 (at 4.8V)
  • Torque : 2.5 kg-cm
  • Working Temp : -30C~60C
  • Teflon Bushing, 19cm wire, coreless motor, servo arms & screw included

This product is listed in:

Components & Parts>Motors>Servos>Micro
