MCP23008 - i2c 8 input/output port expander

Rating:

80% of 100

SKU: ADA593 Brand: Adafruit

Add another 8 pins to your microcontroller using a MCP23008 port expander. The MCP23008 uses two i2c pins (these can be shared with other i2c devices), and in exchange...

$4.30 AUD, inc GST

$3.91 AUD, exc GST

Quantity Discounts:

10-25 $3.75 (exc GST)
25+ $3.64 (exc GST)

Out of Stock

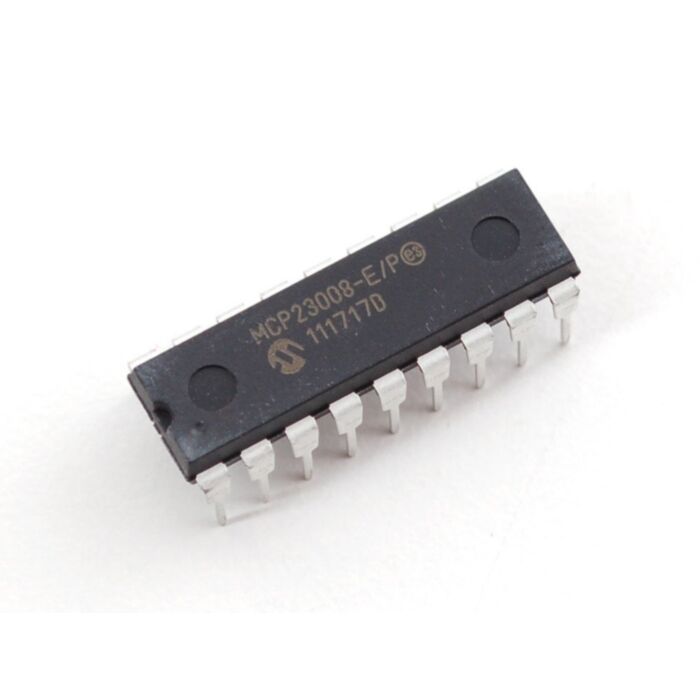

Add another 8 pins to your microcontroller using a MCP23008 port expander. The MCP23008 uses two i2c pins (these can be shared with other i2c devices), and in exchange gives you 8 general purpose pins. You can set each of 8 pins to be input, output, or input with a pullup. There's even the ability to get an interrupt via an external pin when any of the inputs change so you don't have to keep polling the chip.

Use this chip from 2.7-5.5V (good for any 3.3V or 5V setup), and you can sink/source up to 20mA from any of the I/O pins so this will work for LEDs and such. Team it up with a high-power MOSFET if you need more juice. DIP package means it will plug into any breadboard or perfboard.

You can set the i2c address by tying the ADDR0-2 pins to power or ground, for up to 8 unique addresses. That means 8 chips can share a single i2c bus - that's 64 I/O pins!

Adafruit used this chip in Adafruit's SPI/i2c backpack and found it to be very reliable and easy to get up and running. Adafruit even have an Arduino library with example code written which will set pin state, read and write from individual pins, and set the pullups.

Technical Details

This board/chip uses I2C 7-bit address between 0x20-0x27, selectable with jumpers

Downloads:

Datasheet for MCP23008

This product is listed in:

Components & Parts>General ICs>Shift Registers & Expanders
Breakouts & Modules>Expanders
