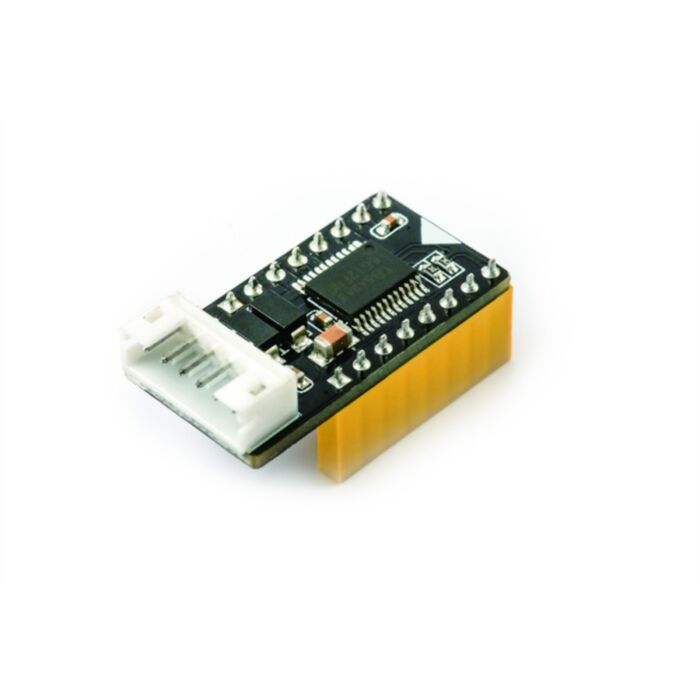

Makeblock MegaPi Encoder/DC Motor Driver

SKU: MB12040

$17.50 AUD, inc GST
$15.91 AUD, exc GST

More Views

Makeblock MegaPi Encoder/DC Motor Driver
17.5 AUD

SKU: MB12040

$17.50 AUD, inc GST
$15.91 AUD, exc GST
In stock, ships same business day if ordered before 2PM
Delivered by Wed, 18th of Jul

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Description:

This encoder motor is capable of driving two DC motors or one encoder motor. It has 16 pins, allowing you to connect with MegaPi by simply plugging in. The motor driver IC on the board is TB6612, which is a high efficiency MOSFET driver with low heat dissipation. Overcurrent protection included to prevent the driver IC from burning out.



Features:

    • 6 V to 12 V motor supply rang;

    • 1 A maximum continuous current per motor (2 A peak);

    • Over-current protection;

    • Capable of driving one encoder driver (white interface) or two DC motors (green interface);

    • Color-code male and female pins ensure connecting with MegaPi correctly;

    • TVS protection included in the interface for driving encoder motors;

    • Small size for easy connecting with MegaPi;



Specification:

    • Motor driver: TB6612FNG

    • Motor channels: 2

    • Minimum operating voltage: 6 V

    • Maximum operating voltage: 12 V

    • Logic voltage: 5V

    • Continuous output current per channel: 1 A

    • Peak output current per channel: 2 A



Dimensions:

    • 1.5cm x 3.0cm



User Guide:

• MegaPi: http://learn.makeblock.com/megapi/

• Arduino IDE: http://learn.makeblock.com/learning-arduino/

•Makeblock HD App: http://learn.makeblock.com/makeblock-app-hd/

Documentation and Resources:
