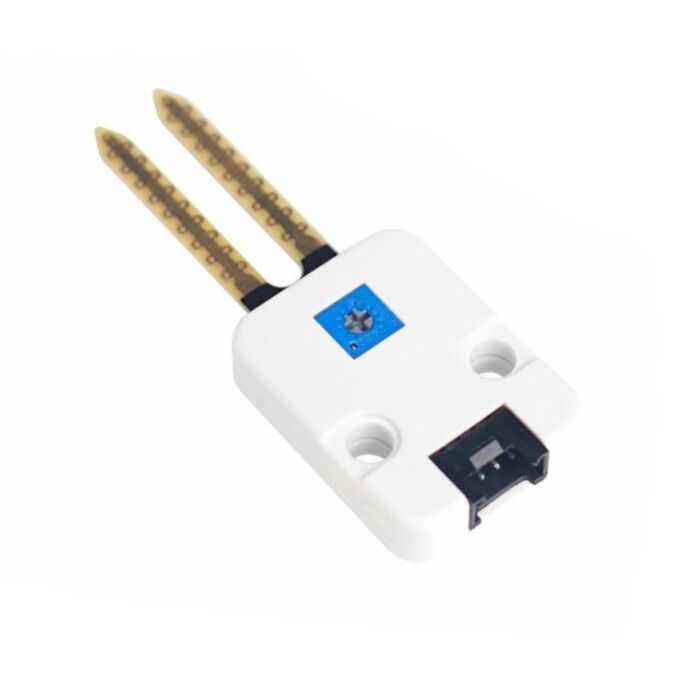

M5Stack Earth Moisture Sensor Unit Analog and Digital Output

SKU: CE07674 Brand: M5Stack

This universal connector for your M5 Stack, connects to pin, commonly used of this part is for the RGB LED strip extension.

Special Price $6.12 AUD, inc GST

Regular Price $7.20 AUD, inc GST

$5.56 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 19th of Nov

EARTH unit is a Soil Moisture Sensor for measuring the moisture in soil and similar materials.

The soil moisture sensor usage is pretty straight forward, the two large exposed pads function as probes for the sensor, together acting as a variable resistor.

The higher moisture that is in the soil means the better the conductivity between the two so that the sensor will result in a lower resistance, and a higher SIG out.

You can read the moisture in soil by using the ADC. Inside this Unit we've added an extra potentiometers to change the measurement range.

Features

Adjustable threshold, including 10K adjustable resistor
Analog & Digital output
GROVE interface, support UIFlow and Arduino
Two Lego-compatible holes

Include

1x EARTH unit
1x GROVE Cable

Applications

Potted soil moisture monitoring

Specification

Net weight 5g
Gross weight 18g
Product Size 64.4*24.1*8.1mm
Product Size 67*53*12mm
