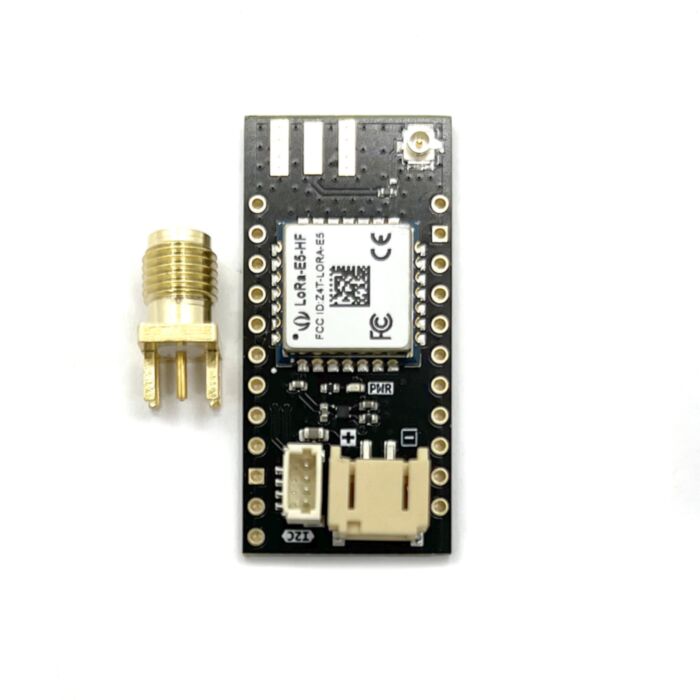

LoRa E5 Shield

SKU: CE09722 Brand: Unexpected Maker

LoRa E5 Shield for the TinyPICO, TinyS2 & TinyS3 This shield includes an E5 LoRa module from Seeed, that works in a range of regions

$31.86 AUD, inc GST
$28.96 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $28.10 (exc GST)
  • 25+ $27.52 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Features

  • A shield for the TinyPico range of ESP32's
  • Uses the LoRa E5 Module from Seeed Studio
  • STEMMA/QT I2C connectors
  • JST PH connector for easy battery connection
  • On board 3V3 LDO regulator controlled by IO to allow the entire LoRa board to be powered down to conserve battery
  • u.FL and SMA Antenna connectors with a 0R resistor bridge for antenna selection

NOTE: The SMA connector is selected by default, but requires soldering to be used.

Pinout



What libraries do I need?

For MicroPython, Mike Causer is currently developing a comprehensive library for this LoRa E5 Shield. It covers using it with the Helium Network, the Things Network as some P2P stuff as well.

A link to his MP library will be posted here once it’s published.

For Arduino development, Seeed have a library with examples available at https://github.com/Seeed-Studio/Seeed_Arduino_LoRaE5

There are also CircuitPython examples available if you search on Google.

NOTE: When using libraries provided by other people, please remember to enable the 3V3 regulator as it is off by default.
