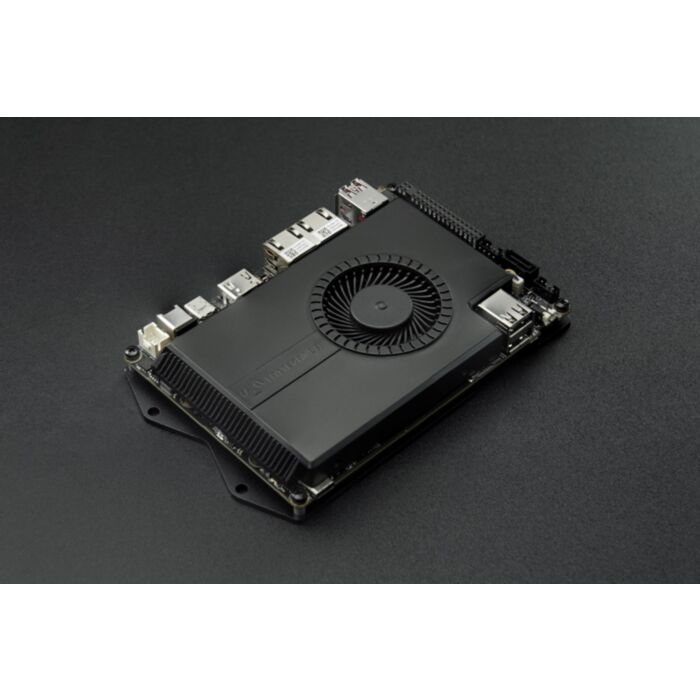

LattePanda Sigma - x86 Windows / Linux Single Board Computer Server (32GB RAM)

Comparison Tables

Selection Guide of LattePanda Single Board Computer Series

Features

• Ultimate Performance: The Intel Core i5-1340P processor has 12 cores and 16 threads with a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient-core), making it a powerful and efficient processor for multitasking and demanding applications.
• Lightning-fast Memory: The dual-channel LPDDR5-6400 RAM with a capacity of 16GB ensures smooth and fast performance.
• High-level Graphics Capability: as it features the Intel Iris Xe Graphics, LattePanda Sigma Single Board Server supports multiple display outputs with high resolutions and refresh rates.
• Quad 4K displays: Experience unparalleled visual clarity with support for quad 4K displays, bringing your content to life like never before.
• User-friendly Interface Layout: plug and play with ease
• Rich Interfaces: Unlock limitless possibilities with rich interfaces, offering seamless connectivity and enhanced user experience.
• Diverse OS Support: Support Windows 10, Windows 11, and Ubuntu operating systems

Applications

Specification

Processor

• CPU: Intel® Core™ i5-1340P
• Cores / Threads: 12C(4P+8E) / 16T
• Max Turbo Frequency: 4.60 GHz(Performance-core), 3.4 GHz(Efficient-core)
• L2 Cache: 12 MB
• Base Power: 28 W
• Graphics: Intel® Iris® Xe Graphics
• Max Dynamic Frequency: 1.45 GHz
• Execution Units: 80
• Co-processor: Microchip® ATmega32U4-MU

Memory

• Dual-Channel 16GB LPDDR5-6400
• Dual-Channel 32GB LPDDR5-6000

Storage

• Drive Form Factor: M.2 SSD (NVMe/SATA), SATA Drive

Wireless

• Wireless Form Factor: M.2 Wireless Module (PCIe/CNVio)

Display

• HDMI Port: HDMI 2.1, Up to 4096 x 2304 @ 60Hz
• USB Type-C Port: DP 1.4a, Up to 7680 x 4320 @ 60Hz (One Monitor)
• Embedded Display Port: eDP 1.4b, Up to 4096 x 2304 @ 120Hz

External I/O

• USB Type-A: 2 x USB2.0 (480Mbps)          2 x USB3.2 Gen 2 (10Gbps)
• USB Type-C: 2 x Thunderbolt™ 4 (40Gbps)
• HDMI: HDMI 2.1
• Ethernet: 2 x 2.5GbE RJ45 Ports (Intel® i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)
• Power: 5.5mm x 2.5mm DC Jack
• Audio: 3.5mm Microphone Headphone Combo Connector
• Sim Card: Micro Sim Card Slot

Internal I/O

• USB 2.0: 2.0mm Pitch 4-Pin Connector, 480Mbps
• Fan: 1.27mm Pitch,12V 4-Wire Fan Connector, PWM Control
• SATA: SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power Connector
• Front Panel: 2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LED
• Front Audio Panel: 2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-in
• COM: 2.54mm Pitch 9-Pin Header,Supports RS232, RS485
• GPIO: 2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State Pins
• eDP: 0.5mm Pitch 40-Pin Connector, 4 Lanes

Expansion Slot

• M.2 M Key: Type 2280, Supports PCIe 3.0 x4          Type 2280, Supports PCIe 4.0 x4
• M.2 B Key: Type 2242/2252/2280, Supports SATA III/PCIe 3.0 x1, USB2.0, USB3.0, SIM
• M.2 E Key: Type 2230, Supports PCIe 3.0 x1,USB2.0, Intel CNVio

Security

• TPM: Built-in TPM (2.0)

Power

• Power Input: 5.5mm x 2.1mm DC Jack: DC 12~20V          USB Type C: PD 20V
• Power Adapter: 19V DC, 4.74A, 90W
• RTC Battery: CR1220 Battery Holder: 3V1.27mm Pitch 2-Pin Connector: 3V

Operating System

• Microsoft Windows: Windows 10, Windows 11
• Linux: Ubuntu 22.04

Environment

• Operating Temperature: 0°C ~ 45°C
• Relative Humidity: 0%~80%

Dimension

• Form Factor: 3.5", 146 x 102 mm

Projects

1. Review: The Sigma: The Most Powerful Single Board Windows PC

This video demos and benchmarks the new LattePanda Sigma single-board computer, which features 12 cores, 16 threads, 16GB RAM, 500GB Storage, dual 2.5Gn NICs, dual 10Gb USB, dual 40Gb Thunderbolt, and much more!

2. Review: The All New LattePanda Sigma May Just Be The Ultimate X86 SBC! First Look

In this video we take look at the all new Lattepanda SIGMA! A Powerful X86 SBC with a 12 Core CPU, 16Gb of DDR5 Ram Running at 6400Mhz, Dual Thunderbolt 4 and loads More! It runs WIndos Or Linux and Has ThePower To Games and Run high end emulators like PCSX2 for PS2, RPCS3 for PS3 and even YUZU of Nintendo Switch! Plus when you need more GPU power you can connect an eGPU and turn it into a real gaming SBC!

3. Review: This Single Board Computer is Faster than a Mac Mini AND a Raspberry Pi

This single-board computer integrates a 12-core processor, fast memory with in-band ECC support, lots of expandability, and even an integrated Arduino controller with GPIO pins. That makes the LattePanda Sigma a step beyond the Apple Mac Mini M2 (and M1) and in another stratosphere than a Raspberry Pi. This is interesting not just for the #Homelab but also those building edge applications that need a faster CPU and GPU on a SBC.

Documents

• Product Wiki
• Certificates

Documentation

• Pin-out Diagram
• Datasheets

Tutorials

• Installing Ubuntu Operating System
• Using eDP Touch Display
• Set up Auto Power-on

Download

• Operating System
• Drivers & Software
• 3D Model

Parts List

• LattePanda Sigma Single Board Server x1
• Active Cooling Fan (Assembled) x1
• Metal Protective Bottom Plate x1
• Thermal Pads for M.2 SSD x2
• Power Adapter with DC cable x1
• AC Cable(EU & US & UK) for power adapter x3
• RTC Battery (Assembled)x 1
• User Manual x 1
