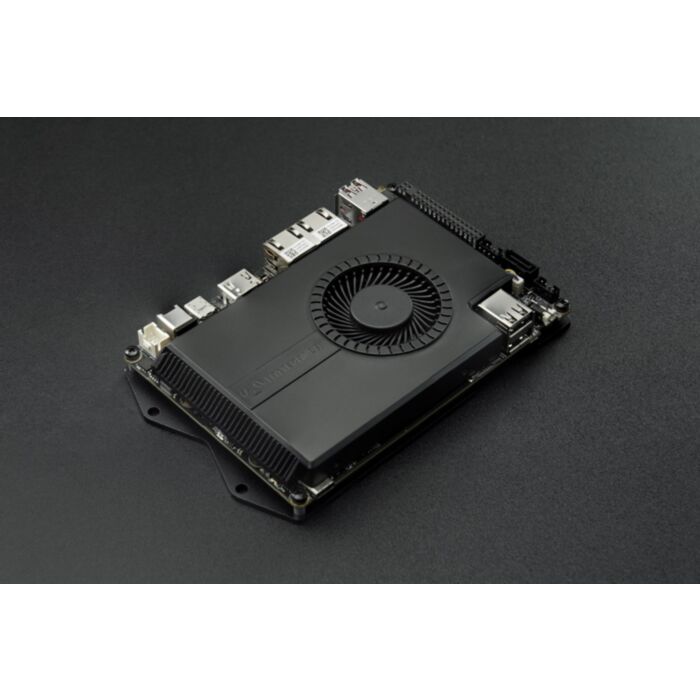

LattePanda Sigma - The Small Hackable x86 Windows/Linux Single Board Computer Server (16GB RAM)

SKU: DFR1080 Brand: DFRobot
A small x86 Windows single board computer server featuring an Intel Core i5-1340P, Intel Iris Xe Graphics, and 16GB Dual-Channel LPDDR5-6400 RAM. It can...
Special Price $1,227.00 AUD, inc GST
Regular Price $1,264.95 AUD, inc GST
$1,149.95 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 21 and Nov 25

Quantity Discounts:

  • 3+ $1092.45 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The LattePanda Sigma offers ultimate performance, lightning-fast memory, high-level graphics capability, and quad 4K displays for an unparalleled user experience. Powered by the Intel Core i5-1340P processor with 12 cores and 16 threads, this device delivers efficient and powerful multitasking for demanding applications. The processor has a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient-core), making it both powerful and efficient.

The dual-channel LPDDR5-6400 RAM with a capacity of 16GB ensures smooth and fast performance, making it ideal for tasks ranging from gaming to data processing. Additionally, the device features Intel Iris Xe Graphics, which offers high-level graphics capability and supports multiple display outputs with high resolutions and refresh rates. With quad 4K displays, the LattePanda Sigma delivers unparalleled visual clarity, bringing your content to life like never before.

This incredibly user-friendly device offers a rich interface with seamless connectivity. The plug-and-play system is easy to set up and use with diverse operating system support for Windows 10, Windows 11, and Ubuntu. Whether you're gaming, creating content, or processing data, the LattePanda Sigma has the capability and flexibility to meet all of your needs.

 LattePanda Sigma Hackable Single Board Computer and Server

13th Intel Core i5-1340P CPU,  Ultimate Performance of LattePanda Sigma

LattePanda Sigma GPU Intel Iris X2 Graphics 80 EUs,up to 1.45GHz

LattePanda Sigma has Lightning-Fast Memory, with Dual-Channel LPDDR5-6400 and Bandwidth: 102.4GB/s

LattePanda Sigma Efficient Cooling and Rapid Chill,44W TDP

LattePanda Sigma LattePanda Sigma Low Noise Operation

LattePanda Sigma Perfect Balance Between,Performance and Energy

LattePanda Mini Size Single Board Computer and Server

LattePanda Supports 4K Displays Output

LattePanda Sigma has rich Interfaces and user-Friendly Layout

LattePanda Sigma supports Windows 10,Windows 11,and Ubuntu OS

LattePanda Sigma

LattePanda Sigma Single Board Server Key Features



Comparison Tables

SKU Model Processor Memory Storage   Wireless
DFR1080 LattePanda Sigma Intel Core i5-1340P 16GBLPDDR5- 6400 / /
DFR1081 LattePanda Sigma(with 500GB SSD and WiFi 6E Module) 500GB WD SN770PCIe 4.0 x4 SSD with Windows 11 Pro (not activated) Intel AX211WiFi 6E Module



Selection Guide of LattePanda Single Board Computer Series

Product LattePanda V1 LattePanda 3 Delta LattePanda Sigma
Processor



Intel® Atom® x5-Z8350



Intel® Celeron® N5105 Intel® Core™ i5-1340P
CPU Spec.



4-Core, 4-Thread

1.44 ~ 1.92GHz2M Cache

2W TDP



4-Core, 4-Thread2.00 ~ 2.90GHz4M Cache10W TDP 12-Core, 16-Thread1.9 ~ 4.60GHz (Performance-core), 3.4 GHz (Efficient-core)  12M Cache28W  TDP
Graphics



Intel® HD Graphics



Intel® UHD Graphics  Intel® Iris® Xe Graphics
Graphics Spec.



200 ~ 500MHz

12 Execution Units



450 ~ 800 MHz24 Execution Units 400 ~ 1450 MHz80 Execution Units
Memory



2GB/4GB DDR3L 1066MHz

Single Channel



8GB LPDDR4 2933MHzSingle Channel 16GB LPDDR5 6400MHzDual Channel
Storage



32GB/64GB eMMC V5.1



64GB eMMC  V5.1 M.2 NVMe SSD (separately installed)
Network



802.11n, 2.4G, up to 150Mbps

Bluetooth 4.0

100M Ethernet



802.11ax, 2.4G & 5G(160MHz), up to 2.4GbpsBluetooth 5.21000M Ethernet 2 x 2500M EthernetM.2 Wi-Fi Module (separately installed)
USB Ports



1 x USB 3.2 Gen1 Type-A (5Gbps)

2 x USB 2.0 Type-A (480Mbps)



1 x USB 3.2 Gen2 Type-A (10Gbps)2 x USB 3.2 Gen1 Type-A (5Gbps)1 x USB 2.0 Type-C (480Mbps) 2 x USB2.0 Type-A (480Mbps)2 x USB3.2 Gen2 Type-A (10Gbps)2 x Thunderbolt™ 4 Type-C (40Gbps)
Display



HDMI 1.4b, up to 1920 x 1080 @ 60Hz

MIPI DSI 1.1, up to 1920 x 1080 @ 60Hz



HDMI 2.0b, up to 4096 x 2304 @ 60HzDP 1.4 via USB Type C, up to 4096 x 2304 @ 60HzeDP 1.4b, up to 1920 x 1080 @ 60Hz HDMI 2.1, up to 4096 x 2304 @ 60HzDP 1.4a, up to 7680 x 4320 @ 60HzeDP 1.4b, up to 4096 x 2304 @ 120Hz
Expansion Slots TF Card Slot M.2 Key B: SATA III, USB2.0, USB3.0, SIMM.2 Key M: PCIe 3.0 x 2TF & Micro SIM Card Slot



M.2 M Key: PCIe 3.0 x 4

M.2 M Key: PCIe 4.0 x 4M.2 B Key: SATA III/PCIe 3.0 x 1, USB2.0, USB3.0, SIMM.2 E Key: PCIe 3.0 x 1, USB2.0, Intel CNVio

Micro SIM Card Slot



Audio



3.5mm Microphone/Headphone Combo Connector



3.5mm Microphone/Headphone Combo Connector 3.5mm Microphone/Headphone Combo Connector
Co-Processor Microchip® ATmega32U4-MU Microchip® ATmega32U4-MU Microchip® ATmega32U4-MU
GPIO 20 x Digital IO Pins, incluing: 7 x PWM Pins, 12 x Analog Pins, 1 x UART, 1 x I2C, 1 x SPI, 2 x 5V Power Pins



20 x Digital IO Pins

incluing: 7 x PWM Pins, 12 x Analog Pins, 1 x UART

1 x I2C, 1 x SPI, 4 x 5V Power Pins, 4 x 3.3V Power Pins, 1 x ICSP, 1 x BIOS Flash, 1 x RS232, 1 x USB 2.0, 1 x Audio, 1x I2C (CPU Pins), 1 x DC Input, 1 x Power Switch, 1 x Reset Switch, 1 x S0/S3/S4



20 x Digital IO Pins, incluing: 7 x PWM Pins, 12 x Analog Pins, 1 x UART, 1 x I2C, 1 x SPI, 2 x 5V Power Pins, 1 x ICSP, 1 x S0/S3/S4, 1 x USB2.0, 1 x SATA III Data, 1 x SATA Power, 1 x Front Panel, 1 x Front Audio Panel, 1 x COM (RS232/RS485), 1 x DC Input
Security



None



Built-in TPM (2.0) Built-in TPM (2.0)

Operating System



Windows 10

Ubuntu 18.04, 20.04



Windows 10 & 11Ubuntu 22.04 Windows 10 & 11Ubuntu 22.04
Dimension



88mm*70mm*22mm



125mm*78mm*16mm 146mm*102mm*24mm

Power Supply

MicroUSB: 5V 2.5A USB  Type C: 15V  2.4APH2.0 4-Pin Header: 12V 3A  USB Type C: 20V 4.5ADC Jack: 19V 4.7A

BIOS Function

Auto Power-on Auto Power-onWatchdog Timer Auto Power-onWatchdog Timer
Fan Fanless Built-in fan Built-in fan

Applications



Portable Device

Logistics Robot

Intelligent Gateway



Portable DeviceImage RecognitionAuto Optical Inspection HomelabEdge ServerAI Inference
Recommendation



The choice of the most industry customers.



The most cost-effective version. The latest and most powerful version.





Features



  • Ultimate Performance: The Intel Core i5-1340P processor has 12 cores and 16 threads with a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient-core), making it a powerful and efficient processor for multitasking and demanding applications.
  • Lightning-fast Memory: The dual-channel LPDDR5-6400 RAM with a capacity of 16GB ensures smooth and fast performance.
  • High-level Graphics Capability: as it features the Intel Iris Xe Graphics, LattePanda Sigma supports multiple display outputs with high resolutions and refresh rates.
  • Quad 4K displays: Experience unparalleled visual clarity with support for quad 4K displays, bringing your content to life like never before.
  • User-friendly Interface Layout: plug and play with ease
  • Rich Interfaces: Unlock limitless possibilities with rich interfaces, offering seamless connectivity and enhanced user experience.
  • Diverse OS Support: Support Windows 10, Windows 11, and Ubuntu operating systems

Applications

LattePanda Sigma Applications

Specification



Processor

  • CPU: Intel® Core™ i5-1340P
  • Cores / Threads: 12C(4P+8E) / 16T
  • Max Turbo Frequency: 4.60 GHz(Performance-core), 3.4 GHz(Efficient-core)
  • L2 Cache: 12 MB
  • Base Power: 28 W
  • Graphics: Intel® Iris® Xe Graphics
  • Max Dynamic Frequency: 1.45 GHz
  • Execution Units: 80
  • Co-processor: Microchip® ATmega32U4-MU



Memory

  • Technology: Dual-Channel LPDDR5-6400
  • Capacity: 16GB



Storage

  • Drive Form Factor: M.2 SSD (NVMe/SATA), SATA Drive



Wireless

  • Wireless Form Factor: M.2 Wireless Module (PCIe/CNVio)



Display

  • HDMI Port: HDMI 2.1, Up to 4096 x 2304 @ 60Hz
  • USB Type-C Port: DP 1.4a, Up to 7680 x 4320 @ 60Hz (One Monitor)
  • Embedded Display Port: eDP 1.4b, Up to 4096 x 2304 @ 120Hz



External I/O

  • USB Type-A: 2 x USB2.0 (480Mbps)
              2 x USB3.2 Gen 2 (10Gbps)
  • USB Type-C: 2 x Thunderbolt™ 4 (40Gbps)
  • HDMI: HDMI 2.1
  • Ethernet: 2 x 2.5GbE RJ45 Ports (Intel® i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)
  • Power: 5.5mm x 2.5mm DC Jack
  • Audio: 3.5mm Microphone Headphone Combo Connector
  • Sim Card: Micro Sim Card Slot



Internal I/O

  • USB 2.0: 2.0mm Pitch 4-Pin Connector, 480Mbps
  • Fan: 1.27mm Pitch,12V 4-Wire Fan Connector, PWM Control
  • SATA: SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power Connector
  • Front Panel: 2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LED
  • Front Audio Panel: 2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-in
  • COM: 2.54mm Pitch 9-Pin Header,Supports RS232, RS485
  • GPIO: 2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State Pins
  • eDP: 0.5mm Pitch 40-Pin Connector, 4 Lanes



Expansion Slot

  • M.2 M Key: Type 2280, Supports PCIe 3.0 x4
              Type 2280, Supports PCIe 4.0 x4
  • M.2 B Key: Type 2242/2252/2280, Supports SATA III/PCIe 3.0 x1, USB2.0, USB3.0, SIM
  • M.2 E Key: Type 2230, Supports PCIe 3.0 x1,USB2.0, Intel CNVio



Security

  • TPM: Built-in TPM (2.0)



Power

  • Power Input: 5.5mm x 2.1mm DC Jack: DC 12~20V
              USB Type C: PD 20V
  • Power Adapter: 19V DC, 4.74A, 90W
  • RTC Battery: CR1220 Battery Holder: 3V
    1.27mm Pitch 2-Pin Connector: 3V



Operating System

  • Microsoft Windows: Windows 10, Windows 11
  • Linux: Ubuntu 22.04



Environment

  • Operating Temperature: 0~45°C
  • Relative Humidity: 0%~80%



Dimension

  • Form Factor: 3.5", 146 x 102 mm

Projects

1. The Sigma: The Most Powerful Single Board Windows PC

This video demos and benchmarks the new LattePanda Sigma single-board computer, which features 12 cores, 16 threads, 16GB RAM, 500GB Storage, dual 2.5Gn NICs, dual 10Gb USB, dual 40Gb Thunderbolt, and much more!

2. The All New LattePanda Sigma May Just Be The Ultimate X86 SBC! First Look

In this video we take look at the all new Lattepanda SIGMA! A Powerful X86 SBC with a 12 Core CPU, 16Gb of DDR5 Ram Running at 6400Mhz, Dual Thunderbolt 4 and loads More! It runs WIndos Or Linux and Has ThePower To Games and Run high end emulators like PCSX2 for PS2, RPCS3 for PS3 and even YUZU of Nintendo Switch! Plus when you need more GPU power you can connect an eGPU and turn it into a real gaming SBC!

Documents



Documentation



Tutorials


Download

Parts List

  • LattePanda Sigma x1
  • Active Cooling Fan (Assembled) x1
  • Metal Protective Bottom Plate x1
  • Thermal Pads for M.2 SSD x2
  • Power Adapter with DC cable x1
  • AC Cable(EU & US & UK) for power adapter x3
  • RTC Battery (Assembled)x 1
  • User Manual x 1
