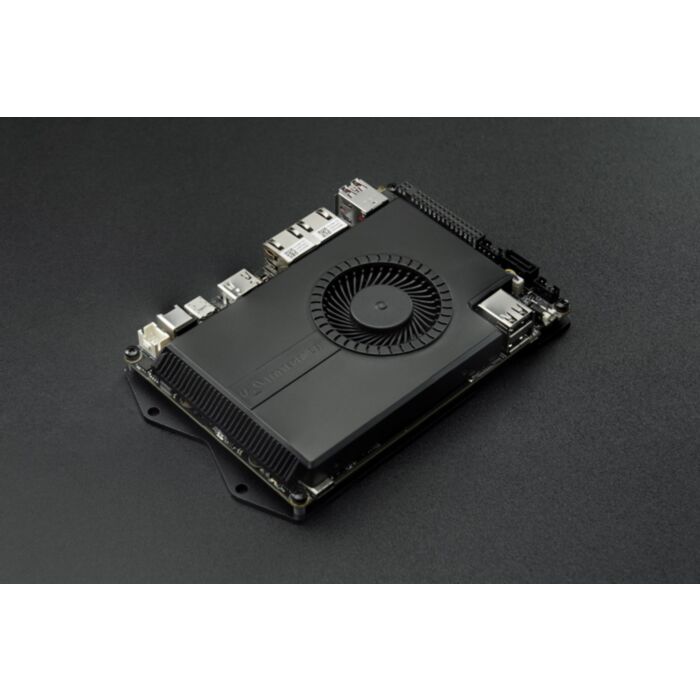

LattePanda Sigma - The Small Hackable x86 Windows/Linux Single Board Computer Server (16GB RAM/500GB SSD and WiFi 6E Module)

SKU: DFR1081 Brand: DFRobot
LattePanda Sigma is a compact x86 Windows SBC server with an Intel Core i5-1340P CPU, Intel Iris Xe Graphics, and 16GB Dual-Channel LPDDR5-6400 RAM. It...
$1,349.73 AUD, inc GST
$1,227.03 AUD, exc GST

Available with a lead time
Expect dispatch between May 17 and May 23

Quantity Discounts:

  • 3+ $1208.62 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

 LattePanda Sigma Hackable Single Board Computer and Server
13th Intel Core i5-1340P CPU,  Ultimate Performance of LattePanda Sigma
LattePanda Sigma GPU Intel Iris X2 Graphics 80 EUs,, up to 1.45GHz
LattePanda Sigma has Lightning-Fast Memory, with Dual-Channel LPDDR5-6400 and Bandwidth: 102.4GB/s
LattePanda Sigma Efficient Cooling and Rapid Chill, 44W TDP
LattePanda Sigma LattePanda Sigma Low Noise Operation
LattePanda Sigma Perfect Balance Between, Performance and Energy
LattePanda Mini Size Single Board Computer and Server
LattePanda Supports 4K Displays Output
LattePanda Sigma has rich Interfaces and user-Friendly Layout
LattePanda Sigma supports Windows 10, Windows 11, and Ubuntu OS
LattePanda Sigma
LattePanda Sigma Single Board Server Key Features


Comparison Tables

SKUModelProcessorMemoryStorage  Wireless
DFR1080LattePanda SigmaIntel Core i5-1340P
16GB
LPDDR5- 6400
//
DFR1081
LattePanda Sigma
(with 500GB SSD and WiFi 6E Module)
500GB WD SN770
PCIe 4.0 x4 SSD with Windows 11 Pro (not activated)
Intel AX211
WiFi 6E Module


Selection Guide of LattePanda Single Board Computer Series

ProductLattePanda V1LattePanda 3 DeltaLattePanda Sigma
Processor


Intel® Atom® x5-Z8350


Intel® Celeron® N5105Intel® Core™ i5-1340P
CPU Spec.


4-Core, 4-Thread

1.44 ~ 1.92GHz
2M Cache

2W TDP


4-Core, 4-Thread
2.00 ~ 2.90GHz
4M Cache
10W TDP
12-Core, 16-Thread
1.9 ~ 4.60GHz (Performance-core), 3.4 GHz (Efficient-core)
12M Cache
28W  TDP
Graphics


Intel® HD Graphics


Intel® UHD Graphics Intel® Iris® Xe Graphics
Graphics Spec.


200 ~ 500MHz

12 Execution Units


450 ~ 800 MHz
24 Execution Units
400 ~ 1450 MHz
80 Execution Units
Memory


2GB/4GB DDR3L 1066MHz

Single Channel


8GB LPDDR4 2933MHz
Single Channel
16GB LPDDR5 6400MHz
Dual Channel
Storage


32GB/64GB eMMC V5.1


64GB eMMC  V5.1M.2 NVMe SSD (separately installed)
Network


802.11n, 2.4G, up to 150Mbps

Bluetooth 4.0

100M Ethernet


802.11ax, 2.4G & 5G(160MHz), up to 2.4Gbps
Bluetooth 5.2
1000M Ethernet
2 x 2500M Ethernet
M.2 Wi-Fi Module (separately installed)
USB Ports


1 x USB 3.2 Gen1 Type-A (5Gbps)

2 x USB 2.0 Type-A (480Mbps)


1 x USB 3.2 Gen2 Type-A (10Gbps)
2 x USB 3.2 Gen1 Type-A (5Gbps)
1 x USB 2.0 Type-C (480Mbps)
2 x USB2.0 Type-A (480Mbps)
2 x USB3.2 Gen2 Type-A (10Gbps)
2 x Thunderbolt™ 4 Type-C (40Gbps)
Display


HDMI 1.4b, up to 1920 x 1080 @ 60Hz

MIPI DSI 1.1, up to 1920 x 1080 @ 60Hz


HDMI 2.0b, up to 4096 x 2304 @ 60Hz
DP 1.4 via USB Type C, up to 4096 x 2304 @ 60Hz
eDP 1.4b, up to 1920 x 1080 @ 60Hz
HDMI 2.1, up to 4096 x 2304 @ 60Hz
DP 1.4a, up to 7680 x 4320 @ 60Hz
eDP 1.4b, up to 4096 x 2304 @ 120Hz
Expansion SlotsTF Card Slot
M.2 Key B: SATA III, USB2.0, USB3.0, SIM
M.2 Key M: PCIe 3.0 x 2
TF & Micro SIM Card Slot


M.2 M Key: PCIe 3.0 x 4

M.2 M Key: PCIe 4.0 x 4
M.2 B Key: SATA III/PCIe 3.0 x 1, USB2.0, USB3.0, SIM
M.2 E Key: PCIe 3.0 x 1, USB2.0, Intel CNVio

Micro SIM Card Slot


Audio


3.5mm Microphone/Headphone Combo Connector


3.5mm Microphone/Headphone Combo Connector3.5mm Microphone/Headphone Combo Connector
Co-ProcessorMicrochip® ATmega32U4-MUMicrochip® ATmega32U4-MUMicrochip® ATmega32U4-MU
GPIO20 x Digital IO Pins, incluing: 7 x PWM Pins, 12 x Analog Pins, 1 x UART, 1 x I2C, 1 x SPI, 2 x 5V Power Pins


20 x Digital IO Pins

incluing: 7 x PWM Pins, 12 x Analog Pins, 1 x UART

1 x I2C, 1 x SPI, 4 x 5V Power Pins, 4 x 3.3V Power Pins, 1 x ICSP, 1 x BIOS Flash, 1 x RS232, 1 x USB 2.0, 1 x Audio, 1x I2C (CPU Pins), 1 x DC Input, 1 x Power Switch, 1 x Reset Switch, 1 x S0/S3/S4


20 x Digital IO Pins, incluing: 7 x PWM Pins, 12 x Analog Pins, 1 x UART, 1 x I2C, 1 x SPI, 2 x 5V Power Pins, 1 x ICSP, 1 x S0/S3/S4, 1 x USB2.0, 1 x SATA III Data, 1 x SATA Power, 1 x Front Panel, 1 x Front Audio Panel, 1 x COM (RS232/RS485), 1 x DC Input
Security


None


Built-in TPM (2.0)Built-in TPM (2.0)

Operating System


Windows 10

Ubuntu 18.04, 20.04


Windows 10 & 11
Ubuntu 22.04
Windows 10 & 11
Ubuntu 22.04
Dimension


88mm*70mm*22mm


125mm*78mm*16mm146mm*102mm*24mm

Power Supply

MicroUSB: 5V 2.5A
USB  Type C: 15V  2.4A
PH2.0 4-Pin Header: 12V 3A
USB Type C: 20V 4.5A
DC Jack: 19V 4.7A

BIOS Function

Auto Power-on
Auto Power-on
Watchdog Timer
Auto Power-on
Watchdog Timer
FanFanlessBuilt-in fanBuilt-in fan

Applications


Portable Device

Logistics Robot

Intelligent Gateway


Portable Device
Image Recognition
Auto Optical Inspection
Homelab
Edge Server
AI Inference
Recommendation


The choice of the most industry customers.


The most cost-effective version.The latest and most powerful version.

Features

  • Ultimate Performance: The Intel Core i5-1340P processor has 12 cores and 16 threads with a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient-core), making it a powerful and efficient processor for multitasking and demanding applications.
  • Lightning-fast Memory: The dual-channel LPDDR5-6400 RAM with a capacity of 16GB ensures smooth and fast performance.
  • High-level Graphics Capability: as it features the Intel Iris Xe Graphics, LattePanda Sigma supports multiple display outputs with high resolutions and refresh rates.
  • Quad 4K displays: Experience unparalleled visual clarity with support for quad 4K displays, bringing your content to life like never before.
  • User-friendly Interface Layout: plug and play with ease
  • Rich Interfaces: Unlock limitless possibilities with rich interfaces, offering seamless connectivity and enhanced user experience.
  • Diverse OS Support: Support Windows 10, Windows 11, and Ubuntu operating systems
  • Applications

    LattePanda Sigma Applications

    Specification

    Processor

  • CPU: Intel® Core™ i5-1340P
  • Cores / Threads: 12C(4P+8E) / 16T
  • Max Turbo Frequency: 4.60 GHz(Performance-core), 3.4 GHz(Efficient-core)
  • L2 Cache: 12 MB
  • Base Power: 28 W
  • Graphics: Intel® Iris® Xe Graphics
  • Max Dynamic Frequency: 1.45 GHz
  • Execution Units: 80
  • Co-processor: Microchip® ATmega32U4-MU
  • Memory
  • Technology: Dual-Channel LPDDR5-6400
  • Capacity: 16GB
  • Storage
  • Drive Form Factor: M.2 SSD (NVMe/SATA), SATA Drive
  • Wireless
  • Wireless Form Factor: M.2 Wireless Module (PCIe/CNVio)
  • Display
  • HDMI Port: HDMI 2.1, Up to 4096 x 2304 @ 60Hz
  • USB Type-C Port: DP 1.4a, Up to 7680 x 4320 @ 60Hz (One Monitor)
  • Embedded Display Port: eDP 1.4b, Up to 4096 x 2304 @ 120Hz
  • External I/O
  • USB Type-A: 2 x USB2.0 (480Mbps)
              2 x USB3.2 Gen 2 (10Gbps)
  • USB Type-C: 2 x Thunderbolt™ 4 (40Gbps)
  • HDMI: HDMI 2.1
  • Ethernet: 2 x 2.5GbE RJ45 Ports (Intel® i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)
  • Power: 5.5mm x 2.5mm DC Jack
  • Audio: 3.5mm Microphone Headphone Combo Connector
  • Sim Card: Micro Sim Card Slot
  • Internal I/O
  • USB 2.0: 2.0mm Pitch 4-Pin Connector, 480Mbps
  • Fan: 1.27mm Pitch,12V 4-Wire Fan Connector, PWM Control
  • SATA: SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power Connector
  • Front Panel: 2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LED
  • Front Audio Panel: 2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-in
  • COM: 2.54mm Pitch 9-Pin Header,Supports RS232, RS485
  • GPIO: 2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State Pins
  • eDP: 0.5mm Pitch 40-Pin Connector, 4 Lanes
  • Expansion Slot
  • M.2 M Key: Type 2280, Supports PCIe 3.0 x4
              Type 2280, Supports PCIe 4.0 x4
  • M.2 B Key: Type 2242/2252/2280, Supports SATA III/PCIe 3.0 x1, USB2.0, USB3.0, SIM
  • M.2 E Key: Type 2230, Supports PCIe 3.0 x1,USB2.0, Intel CNVio
  • Security
  • TPM: Built-in TPM (2.0)
  • Power
  • Power Input: 5.5mm x 2.1mm DC Jack: DC 12~20V
              USB Type C: PD 20V
  • Power Adapter: 19V DC, 4.74A, 90W
  • RTC Battery: CR1220 Battery Holder: 3V
    1.27mm Pitch 2-Pin Connector: 3V
  • Operating System
  • Microsoft Windows: Windows 10, Windows 11
  • Linux: Ubuntu 22.04
  • Environment
  • Operating Temperature: 0~45°C
  • Relative Humidity: 0%~80%
  • Dimension
  • Form Factor: 3.5", 146 x 102 mm
  • Projects

    1. The Sigma: The Most Powerful Single Board Windows PC

    This video demos and benchmarks the new LattePanda Sigma single-board computer, which features 12 cores, 16 threads, 16GB RAM, 500GB Storage, dual 2.5Gn NICs, dual 10Gb USB, dual 40Gb Thunderbolt, and much more!

    2. The All New LattePanda Sigma May Just Be The Ultimate X86 SBC! First Look

    In this video we take look at the all new Lattepanda SIGMA! A Powerful X86 SBC with a 12 Core CPU, 16Gb of DDR5 Ram Running at 6400Mhz, Dual Thunderbolt 4 and loads More! It runs WIndos Or Linux and Has ThePower To Games and Run high end emulators like PCSX2 for PS2, RPCS3 for PS3 and even YUZU of Nintendo Switch! Plus when you need more GPU power you can connect an eGPU and turn it into a real gaming SBC!

    Documents

    Parts List

  • LattePanda Sigma x1
  • Active Cooling Fan (Assembled) x1
  • Metal Protective Bottom Plate x1
  • Thermal Pads for M.2 SSD x2
  • Power Adapter with DC cable x1
  • AC Cable(EU & US & UK) for power adapter x3
  • RTC Battery (Assembled)x 1
  • User Manual x 1
  • M.2 NVMe SSD 500GB x1
  • M.2 Intel WiFi 6E Module x1
  • WiFi/BT Antenna x2
  • Product Comments

    Exact shipping can be calculated on the view cart page (no login required).

    Products that weigh more than 0.5 KG may cost more than what's shown (for example, test equipment, machines, >500mL liquids, etc).

    We deliver Australia-wide with these options (depends on the final destination - you can get a quote on the view cart page):

    • $3+ for Stamped Mail (typically 10+ business days, not tracked, only available on selected small items)
    • $6+ for Standard Post (typically 6+ business days, tracked)
    • $10+ for Express Post (typically 2+ business days, tracked)
    • Pickup - Free! Only available to customers who live in the Newcastle region (must order online and only pickup after we email to notify you the order is ready). Orders placed after 2PM may not be ready until the following business day.

    Non-metro addresses in WA, NT, SA & TAS can take 2+ days in addition to the above information.

    Some batteries (such as LiPo) can't be shipped by Air. During checkout, Express Post and International Methods will not be an option if you have that type of battery in your shopping cart.

    International Orders - the following rates are for New Zealand and will vary for other countries:

    • $11+ for Pack and Track (3+ days, tracked)
    • $16+ for Express International (2-5 days, tracked)

    If you order lots of gear, the postage amount will increase based on the weight of your order.

    Our physical address (here's a PDF which includes other key business details):

    Unit 18, 132 Garden Grove Parade
    Adamstown
    NSW, 2289
    Australia

    Take a look at our customer service page if you have other questions such as "do we do purchase orders" (yes!) or "are prices GST inclusive" (yes they are!). We're here to help - get in touch with us to talk shop.

    Have a product question? We're here to help!

    Write Your Own Review

    Videos

    View All

    Guides

    Linux In Windows

    The Windows Subsystem for Linux (WSL) is a powerful new feature that lets you run a Linux terminal f...
    The Windows Subsystem for Linux (WSL) is a powerful new feature that lets you run a Linux terminal f...

    C Programming for Makers

    Welcome to the C Programming Workshop for Makers! Here you'll be able to follow along with our serie...
    Welcome to the C Programming Workshop for Makers! Here you'll be able to follow along with our serie...

    The Maker Revolution

    The Maker Revolution celebrates the creation of new devices and the modification of existing ones - ...
    The Maker Revolution celebrates the creation of new devices and the modification of existing ones - ...

    Raspberry Pi vs. LattePanda

    Ah, what a glorious time we live in, where we have to compare which micro-computer is going to best ...
    Ah, what a glorious time we live in, where we have to compare which micro-computer is going to best ...

    Projects

    Raspberry Pi Microscope

    The Raspberry Pi Microscope was put together to help with soldering PCBs that have small surface mo...
    The Raspberry Pi Microscope was put together to help with soldering PCBs that have small surface mo...

    Accurate IoT Clock With ESP8266

    Being punctual is important. Hence accurate time is required. Clocks tend to miss out when it comes...
    Being punctual is important. Hence accurate time is required. Clocks tend to miss out when it comes...

    Days2Bin: Pico Powered Bin Reminder

    Our recycle bin is collected fortnightly, but I can never remember which week, and the printed cale...
    Our recycle bin is collected fortnightly, but I can never remember which week, and the printed cale...
    Feedback

    Please continue if you would like to leave feedback for any of these topics:

    • Website features/issues
    • Content errors/improvements
    • Missing products/categories
    • Product assignments to categories
    • Search results relevance

    For all other inquiries (orders status, stock levels, etc), please contact our support team for quick assistance.

    Note: click continue and a draft email will be opened to edit. If you don't have an email client on your device, then send a message via the chat icon on the bottom left of our website.

    Makers love reviews as much as you do, please follow this link to review the products you have purchased.
