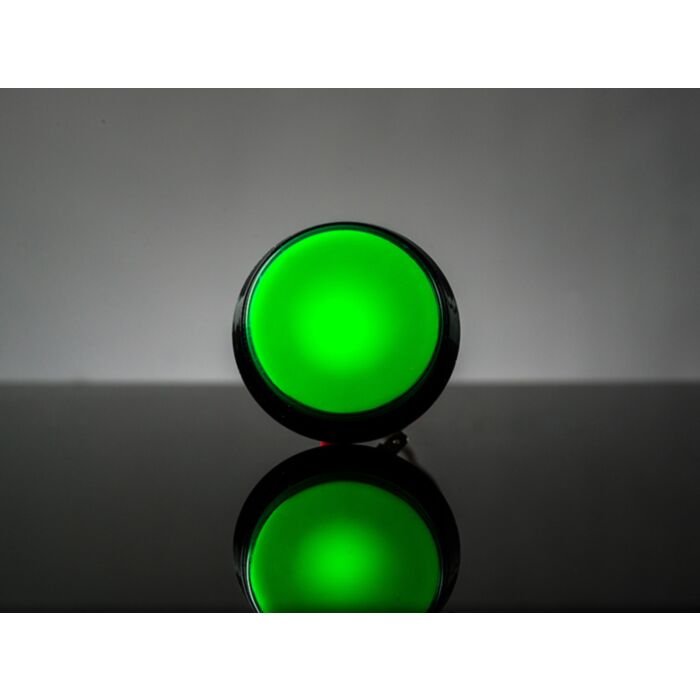

Large Arcade Button with LED - 60mm Green

SKU: ADA1193 Brand: Adafruit

BAM! This 60mm diameter arcade button is large and inviting and ready for all sorts of pressing and pushing. We've seen these on some games of skill in arcades...

$15.95 AUD, inc GST

$14.50 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 29 and Apr 30

Quantity Discounts:

10-25 $13.92 (exc GST)
25+ $13.48 (exc GST)

BAM! This 60mm diameter arcade button is large and inviting and ready for all sorts of pressing and pushing. We've seen these on some games of skill in arcades, they're easy to mount on nearly any kind of enclosure. They're not waterproof or weatherproof, so best used indoors.

This button has a flat green plastic cover with a black retaining ring around it. There's an optional LED included that will light up the button. The LED has a built in resistor so you can run it up to 12V but given the shallow depth of the button, it doesn't illuminate the entire button face evenly. The button draws about 10mA at full brightness (12V) and is barely visible at 2V.

The button activates a common arcade microswitch (included), the switch contacts are normally open. When the button is pressed, the contacts close.

Large Arcade Button with LED - 60mm Green (4:27)

Technical Details

12mm / .5" height when pressed
15.2mm / .6" height when not pressed
52.5mm / 2.1" long stem with switch installed
