Large Arcade Button with LED - 60mm Red

SKU: ADA1190 Brand: Adafruit

BAM! This 60mm diameter arcade button is large and inviting and ready for all sorts of pressing and pushing. We've seen these on some games of skill in arcades...

$16.20 AUD, inc GST

$14.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $14.14 (exc GST)
25+ $13.70 (exc GST)

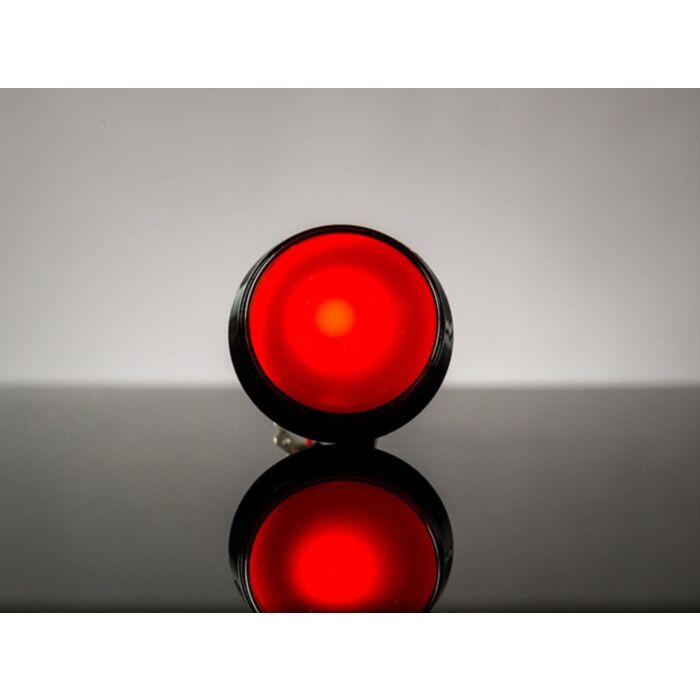

BAM! This 60mm diameter arcade button is large and inviting and ready for all sorts of pressing and pushing. We've seen these on some games of skill in arcades, they're easy to mount on nearly any kind of enclosure. They're not waterproof or weatherproof, so best used indoors.

This button has a flat red plastic cover with a black retaining ring around it. There's an optional LED included that will light up the button. The LED has a built in resistor so you can run it up to 12V but given the shallow depth of the button, it doesn't illuminate the entire button face evenly. The button draws about 10mA at full brightness (12V) and is barely visible at 2V.

The button activates a common arcade microswitch (included), the switch contacts are normally open. When the button is pressed, the contacts close.

Large Arcade Button with LED - 60mm Red (4:27)

Technical Details

12mm / .5" height when pressed
15.2mm / .6" height when not pressed
52.5mm / 2.1" long stem with switch installed
