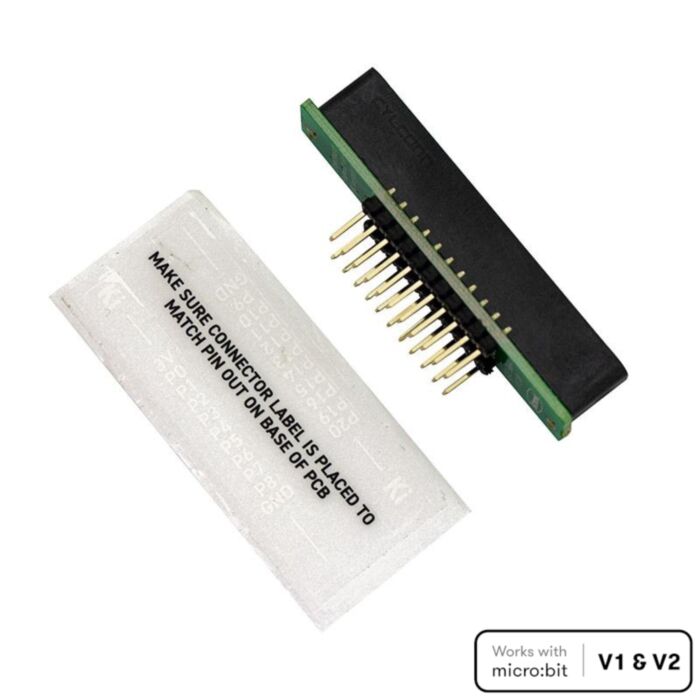

Kitronik Breadboard breakout for the BBC micro:bit

Rating:

100% of 100

SKU: CE06483 Brand: Kitronik

With the Breadboard breakout for the BBC micro:bit you can plug a microbit into a standard 2.54mm pitch breadboard, across the center, just like a standard IC.

$7.70 AUD, inc GST

$7.00 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 16 and Dec 16

Quantity Discounts:

10-25 $6.79 (exc GST)
25+ $6.65 (exc GST)

Recommended Essentials:

micro:bit V2.2 Board

$27.78

The Breadboard breakout for the BBC micro:bit allows the user to plug a BBC microbit into a standard 2.54mm pitch breadboard. Two 11 way pin headers are used to make connections into the breadboard.

The micro:bit slots into the edge connector on the top side of the PCB. No extra tools are required for installation. The front of the BBC micro:bit (the side with the LEDs) should be inserted facing the same side as the 3V pin.

The edge connector has connections on only one side, so if the BBC micro:bit is inserted in reverse orientation, it will not work.

The PCB is designed to plug across the middle slot of a breadboard, the same placement as an IC component.

Features

Works with both the micro:bit V1 and micro:bit V2
The microbit slots into the on-board edge connector.
This breakout board plugs straight across the middle slot of a standard 2.54mm pitch breadboard, just like an IC component.
The microbits pins are broken out to 2 x 11 way header pins.
Use jumper wires to connect from the header pins to the breadboard.
No tools or soldering required for installation.
microbit to breadboard prototyping made easy.

Contents

1 x Breadboard breakout for the BBC micro:bit.

Dimensions

Length: 58.4mm.
Width: 12.8mm.
Height: 20.76.
Pin Pitch: 2.54mm

Requires

Resources:

Datasheet

This product is listed in:

Micro:bit>Accessories
