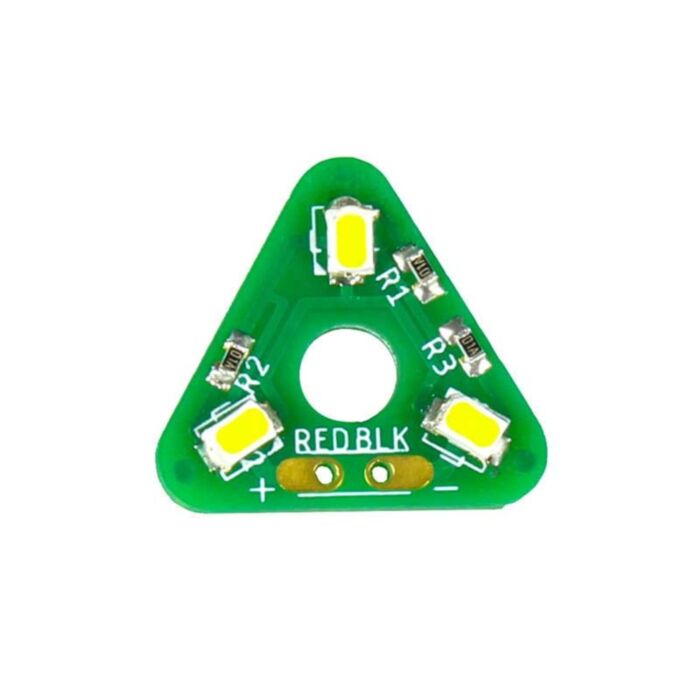

Kitronik 5V Mini LED Lamp Module

The 5V Mini LED Lamp Module is the perfect board for anyone who wishes to design a low power lighting enclosure, such as a desk lamp or accent light. The board comes fully assembled and all of the components are surface mounted, including the LEDs.

The triangular PCB has been designed to fit inside a 20mm diameter, or to put it another way, it can fit inside the 2D shape of a 20 pence piece with room to spare! Its small size means that you can focus on aesthetics and function rather than on working out how to make something look pleasing that has to incorporate a large PCB.

The board has been specifically designed so that its power requirements are well within the supply rating of a computer USB port (5V and well under 100mA).

The board also features two power connection pads with a 2.54mm pitch which are compatible with standard 2.54mm pin headers. Additionally, the board also features a single central M3 (4.5mm) mounting hole.

Note

• Although the board comes pre-assembled and soldered, soldering a power source connection may be required.
• Care should be taken when soldering to the + and pads so that the surface mount LEDs are not inadvertently damaged.

Features

• There are three white LEDs with a luminous intensity of 4800mCd.
• The triangular PCB will fit into a diameter of 20mm, making it ideal for discreet lighting.
• It has been designed such that it is well within the of the supply rating of a computer USB port (under 100mA).
• The power connection pads have a pitch of 2.54mm.
• It also features a single central M3 (4.5mm) mounting hole.

Contains

• 1 x 5V Mini LED Lamp Module board.

Dimensions

• Diameter: 20mm.
• Pad Pitch: 2.54mm.
• Mounting Hole Diameter: 4.5mm.
• PCB Height: 1.6mm.
• Max Height: 3mm.

Requires

• Soldering Iron.
• Solder.
• Wire Cutters.
• A method of connecting to a power source.
• Multi Stranded Cable.
• USB Power Cable.

Resources

Datasheet
