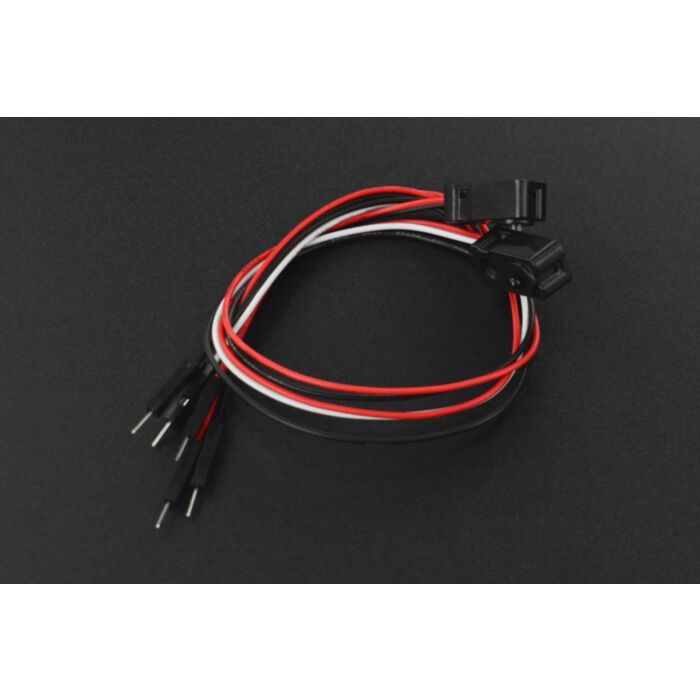

IR Break Beam Sensor (50cm)

SKU: SEN0503 Brand: DFRobot
Infrared break-beam sensors are a simple way to detect motion. This IR break beam sensor works up to 50cm with a fast and stable response of <2ms...
$8.10 AUD, inc GST
$7.36 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 02 and Jan 06

Quantity Discounts:

  • 10-25 $7.15 (exc GST)
  • 25+ $6.99 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Infrared break-beam sensors are a simple way to detect motion.

This IR break beam sensor works up to 50cm with a fast and stable response of <2ms. With a small size of 20*10*9mm, the module can be conveniently installed in a narrow space. Besides, it can operate within a temperature of -25°C to 60°C.

Power the sensor by a voltage of DC 3.0~5V. It can be used with Arduino for some simple motion detection, speed detection, timing, etc. in smart robot competitions.

IR Break Beam Sensor - 50cm

They work by having an emitter side that sends out a beam of human-invisible IR light, then a receiver across the way which is sensitive to that same light. When something passes between the two, and it’s not transparent to IR, then the “beam is broken“. The voltage level on the output (white wire) will match the supply voltage of the receiver whenever it has a clear view of the detector. Breaking the beam causes the signal on the output to drop to zero volts.

IR Break Beam Sensor - 50cm



Features

  • Fast and stable response speed
  • Can be conveniently installed in a narrow space

Applications

  • Simple motion detection
  • Speed detection
  • Timing

Specification

  • Induction Distance: 50CM / (5V), 20CM / (3.3V)
  • Induction Method: through-beam type (non-transparent)
  • Working Voltage: DC 3.0 V-5V
  • Working Current: 25mA
  • Output Mode: NPN normally open
  • Output Current: 100mA (can directly drive the relay)
  • Emitting Angle: straight line (infrared light)
  • Receiving Angle: <10°
  • Response Time: 2ms
  • Working Temperature: -25°C ~ 60°C
  • Working Environment: indoor (not waterproof)
  • Dimensions: 20*10*9mm (L*W*H)
  • Cable Length: 25cm / 9.84 inch
  • Light Hole: 3MM / 0.12 inch
  • Transmitter: red wire=5V DC, black wire=GND
  • Receiving: red wire =5V DC, black wire=GND, white wire=OUT (NPN)

Parts List

  • IR Break Beam Sensor (50cm) - Receiver x1
  • IR Break Beam Sensor (50cm) - Transmitter x1
