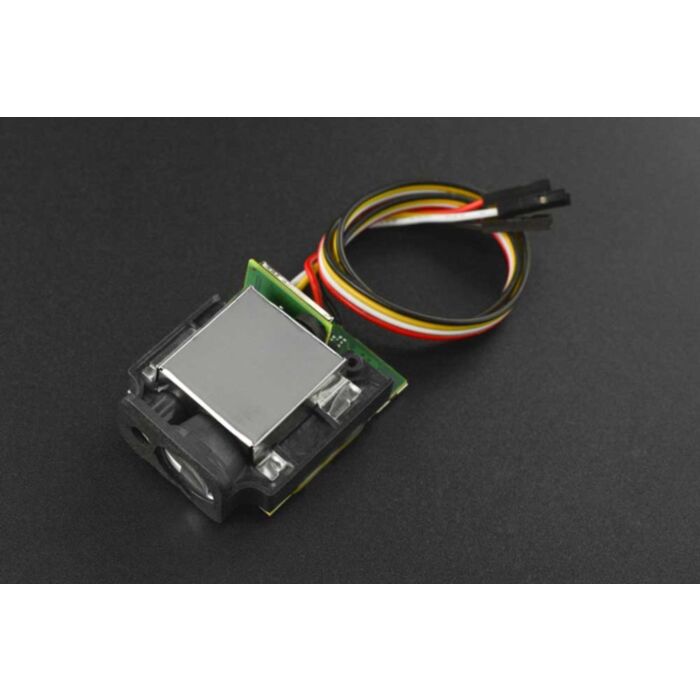

Infrared Laser Distance Sensor (50m/80m)

SKU: SEN0366 Brand: DFRobot
This is an infra-red laser distance sensor with impressive range and accuracy for the price ...Read more
$129.95 AUD, inc GST
$118.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 27th of Nov

Quantity Discounts:

  • 5-10 $114.59 (exc GST)
  • 10+ $112.23 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a cost-effective IR laser distance sensor that features high accuracy, long-distance detection, visible IR laser, and small FOV. It offers the measuring ranges 0.05~80m for indoor use and 0.05~50m outdoor. With serial port output, it is compatible with all kinds of controller boards like Arduino. The sensor can be used in applications like UAV automatic landing, electronic scale, barn material level monitoring, etc.

Visible Infrared Laser, Small FOV

The sensor will emit infrared laser to point to an object, then there will be an IR laser dot on that object. It can measure objects of size 5x5cm within 80m when used indoors. Long-distance detection of small objects, more accurate and easier to use.

Infrared Laser Distance Sensor (50m/80m)

High Accuracy, Long Distance

Measuring Range 80m for using indoor, 50m outdoor. 0.05m Blind zone

Infrared Laser Distance Sensor (50m/80m)

Easy to Get Started

Infrared Laser Distance Sensor (50m/80m)

3.3~5V power supply, UART communication port, compatible with Arduino.

Note:

For different objects and operating environments, the measurement range of the sensor may be shortened or its performance may be affected due to factors like excessive intensity of ambient light, too high or too low operating temperature, rough surface of target, and too weak or strong light reflection of target object.

Features

  • High accuracy
  • Small size
  • Long-distance measurement

Specification

  • Power Supply: DC3.3V~5V
  • Measuring Range: 0.05~50m(outdoor), 0.05~80m(indoor)
  • Accuracy(Standard Deviation): ±1.0mm
  • Laser Type: 620~690nm
  • Laser Class: Ⅱ, <1mW
  • Spot Diameter at Distance M: 6mm@10m,30mm@50m
  • Single Measurement Time: 0.05~1s
  • Protection Level: IP40
  • Operating Temperature: -10~+60°C
  • Storage Temperature: -20~+80°C
  • Weight: about 60g
  • Dimension(L*W*H): 48×42×18mm/1.89×1.65×0.71”

Documents

Parts List

  • Infrared Laser Distance Sensor(50m/80m) ×1
  • USB to TTL Converter ×1
  • This product is listed in:

    Sensors>Distance>Infrared
