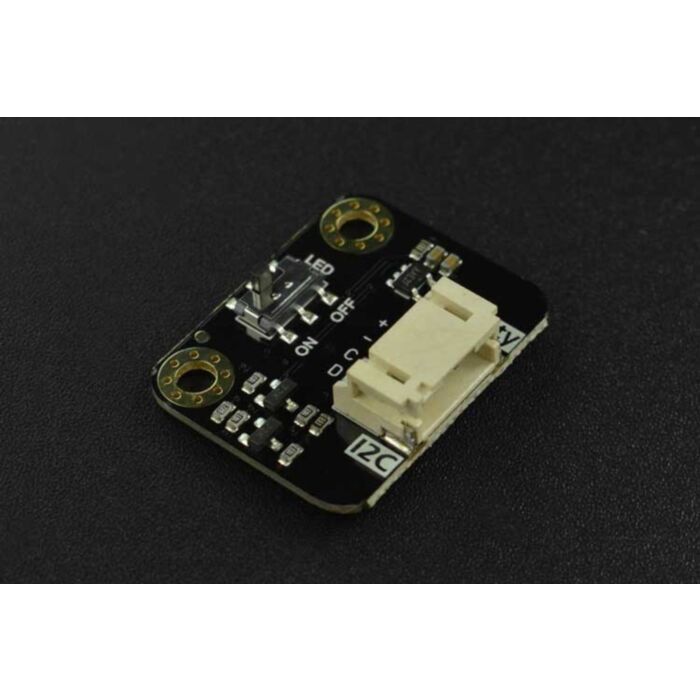

Gravity: TCS3430 Tristimulus Color Sensor

SKU: SEN0404 Brand: DFRobot

DFRobot Gravity: TCS3430 XYZ Tristimulus Color Sensor employs the new generation of TCS3430 spectral sensor IC launched by the well-known AMS company. It features...

$29.95 AUD, inc GST

$27.23 AUD, exc GST

Available with a lead time
Expect dispatch between May 23 and May 29

Quantity Discounts:

10-25 $26.41 (exc GST)
25+ $25.86 (exc GST)

DFRobot Gravity: TCS3430 XYZ Tristimulus Color Sensor employs the new generation of TCS3430 spectral sensor IC launched by the well-known AMS company. It features advanced digital ambient light sensing(ALS) and CIE 1931 tristimulus color sensing(XYZ). Each of the channels has a filter to control its optical response, which allows the device to accurately measure ambient light and sense color. These measurements are used to calculate chromaticity, illuminance, and color temperature, all of which are used to support various potential applications.

You can learn more about the CIE 1931-XYZ system here: https://en.wikipedia.org/wiki/CIE_1931_color_space

Board Overview

Connection Diagram

Features

XYZ Tristimulus Filter
Capable of ±10% illuminance and correlated color temperature accuracy
Wide dynamic range and high sensitivity
Programmable gain and integration time

Applications

Color detection
Brightness detection
White balance detection
Color temperature measurement

Specification

Power Supply: 3.3V~5V
Operating Current: <5mA
LED Operating Current: <15mA
I2C Address: 0x39
Operating Temperature Range: -30°C ~ 85°C
Dimension: 22*27mm/0.87*1.06”

Documents

Product wiki

Parts List

Gravity: TCS3430 Tristimulus Color Sensor x1
Gravity-4P I2C/UART Sensor Connector x1
