Fermion: TCS3200 RGB Colour Sensor Breakout

Rating:
93% of 100
SKU: SEN0101 Brand: DFRobot

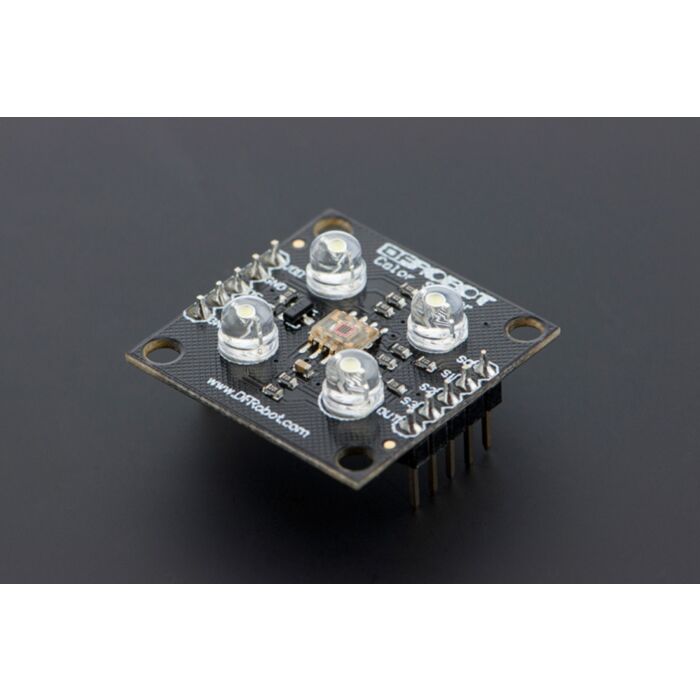

TCS3200 Color Sensor is a complete color detector, including a TAOS TCS3200 RGB sensor chip and 4 white LEDs.
$13.20 AUD, inc GST
$12.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $11.52 (exc GST)
  • 25+ $11.16 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is an Arduino RGB Color Sensor breakout uses TAOS TCS3200 RGB sensor chip and 4 white LEDs.  The TCS3200 arduino color sensor can detect and measure a nearly limitless range of visible colors. Applications include test strip reading, sorting by colour, ambient light sensing and calibration, and colour matching, to name just a few.

The TCS3200 has an array of photodetectors, each with either a red, green, or blue filter or no filter (clear). The filters of each colour are distributed evenly throughout the array to eliminate location bias among the colours. Internal to the device is an oscillator which produces a square-wave output whose frequency is proportional to the intensity of the chosen colour.

Specification

  • Power: (2.7V to 5.5V)
  • Interface: Digital TTL
  • High-Resolution Conversion of Light Intensity to Frequency
  • Programmable Color and Full-Scale Output Frequency
  • Power Down Feature
  • Communicates Directly to Microcontroller
  • Size: 28.4x28.4mm(1.12x1.12")

Documents

Parts List

  • TCS3200 RGB Color Sensor For Arduino ×1
