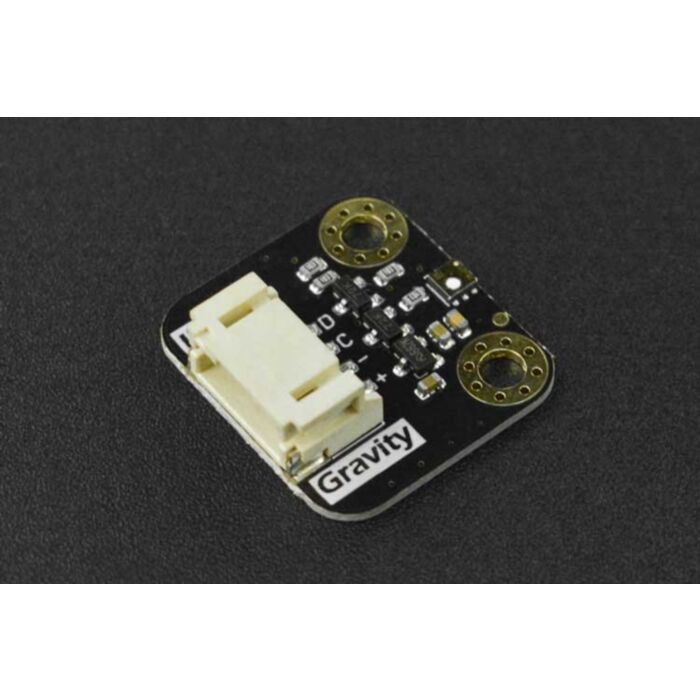

Gravity: SGP40 Air Quality Sensor

Rating:

100% of 100

SKU: SEN0394 Brand: DFRobot

The SGP40 Air Quality sensor adopts the new SGP40 digital VOC sensor chip launched by the well-known Sensirion. Based on the Sensirion’s CMOSens® technology, the...

$24.25 AUD, inc GST

$22.05 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 19 and Feb 24

Quantity Discounts:

10-25 $21.38 (exc GST)
25+ $20.95 (exc GST)

The SGP40 Air Quality sensor adopts the new SGP40 digital VOC sensor chip launched by the well-known Sensirion. Based on the Sensirion’s CMOSens® technology, the SGP40 offers a complete sensor system on a single chip, a temperature-controlled micro-hotplate and a humidity-compensated indoor air quality signal. In combination with Sensirion’s powerful VOC algorithm, the sensor signal can be directly used to evaluate indoor air quality. It features low power(2.6mA), fast response(2s) and small size. The data from the sensor can be directly used to evaluate air quality without calibration.

Integrated with an easy-to-connect Gravity interface, this Gravity SGP40 Air Quality sensor is very suitable for indoor projects that will be used for a long time, such as refitting air purifiers, kitchen hoods, etc. Besides, we provide you with C and Python libraries for use with different main-controllers.

Note: VOC index is obtained by converting the detected ethanol equivalent in air.

Features

Ultra-low power consumption(2.6mA)
Built-in temperature and humidity compensation, no need to calibrate
VOC index for direct air quality indication

Applications

Air Purifiers
Kitchen Hoods
Demand-controlled Ventilation
Thermostats
Indoor Air Quality Monitoring

Specification

Power Supply: 3.3V~5V
Operating Current: 2.6mA
Preheat Time: 10S
Response Time: 2S
Communication: I2C
I2C Address: 0x59
Operating Temperature Range: -10°C ~ 50°C
Storage Temperature Range: 5°C ~ 30°C
Operating Humidity Range: 0%RH~90%RH
VOC Index: 0-500
Measuring Range: 0-1000ppm(Ethanol Equivalent)
Dimension: 20*22mm/ 0.79*0.87”

Documents

Product wiki

Parts List

Gravity: SGP40 Air Quality Sensor x1
Gravity-4P I2C/UART Sensor Cable x1
