FT232RNL USB TO RS232/485/422/TTL Converter

SKU: WS-23996 Brand: Waveshare
FT232RNL USB TO RS232/485/422/TTL Interface Converter, Industrial Isolation
$41.20 AUD, inc GST
$37.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 8th of Oct

Quantity Discounts:

  • 10-25 $36.33 (exc GST)
  • 25+ $35.58 (exc GST)
- +

9 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

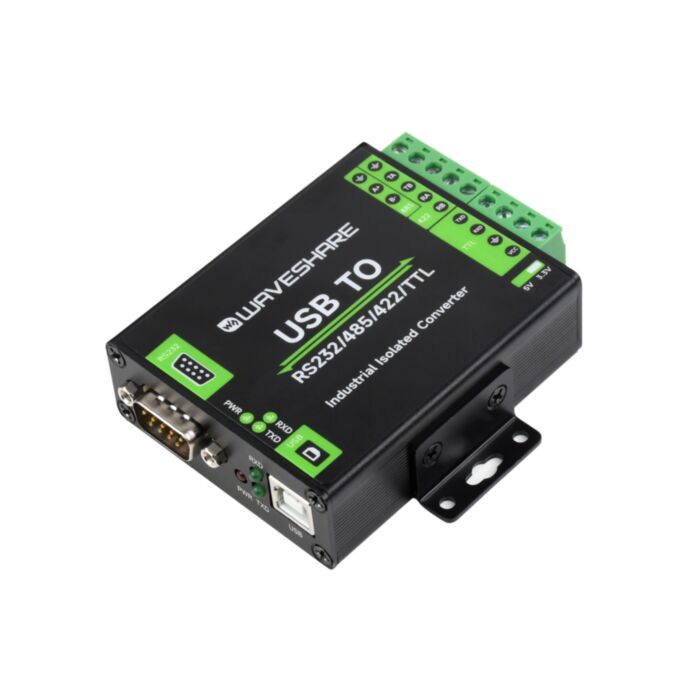

FT232RNL USB TO RS232/485/422/TTL Interface Converter, Industrial Isolation
Industrial Grade Isolated USB Converter

USB TO RS232/485/422/TTL

Original FT232RNL | Stable transmission | Multiple devices applicable | Multi-OS compatible

Features At A Glance
  • Adopt original FT232RNL chip, fast communicating, stable and reliable, better compatibility
  • Supports multiple communication interface conversion: USB to RS232, USB to RS485, USB to RS422, USB to TTL
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
  • Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering with each other
  • Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
  • 3 LEDs for indicating the power and transceiver status
  • High quality USB-B and RS232 connectors, smoothly plug/pull
  • Industrial grade metal case, supports wall-mount and rail-mount installations, solid and beautiful, easy to install
Specifications
PRODUCT TYPE Industrial grade digital isolated converter
USB Operating voltage 5V
Connector USB-B
Protection 200mA self-recovery fuse, isolated output
RS232 Connector DB9 male
Protection TVS diode, surge protection & ESD protection
Transmission mode Point-to-point
Baud rate 300bps ~ 921600bps
RS485/422 Connector Screw terminal
Direction control Hardware automatic control
Protection 600W lightningproof and surge-suppress, 15KV ESD protection (reserved two 120R balancing resistors, enabled/disabled via jumper)
Transmission mode Point-to-multipoints (485 mode: up to 32 nodes, it is recommended to use repeaters for 16 nodes or more; 422 mode: up to 256 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate 300bps ~ 2Mbps
TTL (UART) Operating voltage 3.3V / 5V
Connector Screw terminal
Pins TXD, RXD, GND, 5V/3.3V
Protection clamp protection diode, over-voltage/negative-voltage proof, shock proof
Transmission mode Point-to-point
Baud rate 300bps ~ 2Mbps
Indicators PWR Red power indicator, light up when there is USB connection and voltage is detected
TXD TX indicator, light up when the USB port sends data
RXD RX indicator, light up when the device ports send data back
Operating environment Temperature -40? ~ 85?
Humidity 5%RH ~ 95%RH
Operating system Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

Original Industrial Grade Chip

Onboard original FT232RNL chip,
Fast communication, stable & reliable, better compatibility


Safer Isolated Design
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

Multiple Protection, Safe And Stable

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.


Multi system Support

Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, etc.

Aluminium Alloy Enclosure

Aluminium alloy enclosure with sand blasting and anodic oxidation
Solid and durable, Fashionable and good hand feeling
Wall-Mount And Rail-Mount Support, More flexible for industrial installation

Interface Introduction

Product Show


Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.204 kg

Quick Overview

  1. USB TO RS232/485/422/TTL x1
  2. Rail-mount buckle x1
  3. USB type A to type B cable ~1.2m x1
  4. Screwdriver x1
