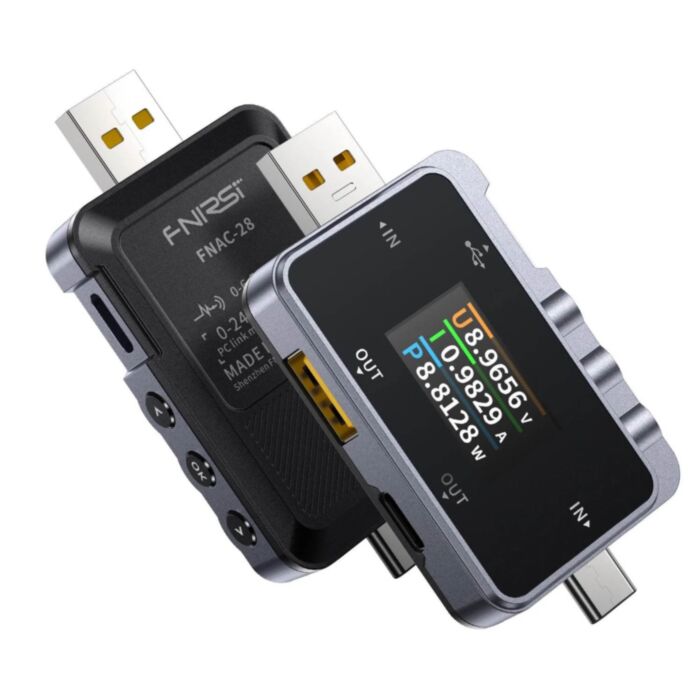

FNAC-28 Two-in-One USB Type-C Tester

SKU: CE10557 Brand: FNIRSI

Diagnose power delivery and verify fast charging standards. Featuring a 16-bit ADC and bi-directional ports, it accurately monitors voltage curves and current flow up to 24V and 6.5A.

$28.10 AUD, inc GST

$25.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

A high-precision USB tester designed to monitor voltage, current, and power across both USB-A and USB-C interfaces. It serves as a comprehensive diagnostic tool for evaluating the performance of chargers, power banks, and cables, utilising a 16-bit ADC (analog-to-digital converter) to deliver great measurement accuracy on your workbench.

For makers and technicians, the "black box" nature of modern fast charging can be frustrating; it is often unclear why a device isn't charging at full speed or if a power supply is delivering stable voltage. The FNAC-28 solves this by visualising real-time power data and automatically detecting supported fast-charge protocols. This allows you to instantly verify if a generic charging brick is truthful about its specifications or identify high-resistance cables that are bottling your power delivery.

Engineered for versatility, the unit features a crisp 1.06-inch colour TFT display and bi-directional ports, eliminating the need for complex adapter setups. With its ability to measure up to 24V and 6.5A, coupled with offline data storage for capacity checking, the FNAC-28 is a reliable, pocket-sized addition to any electronics toolkit needing to validate power delivery standards.

Features

Diagnose Charging Issues Instantly: Visualise voltage curves and current draw in real-time to identify unstable power supplies or faulty connections before they damage sensitive electronics.
Verify Fast Charge Protocols: Automatically detect and trigger protocols including QC2.0/3.0, Huawei FCP/SCP, Samsung AFC, and VOOC/WARP to ensure your chargers are delivering the speeds promised on the box.
Universal Connectivity: Test a wide variety of devices without adapters thanks to the integrated USB-A and USB-C male and female ports, supporting bi-directional current flow.
High-Resolution Measurement: Rely on precise data for delicate repairs with the internal 16-bit ADC, offering 0.00001V and 0.00001A resolution capabilities.
Cable Resistance Testing: Determine the quality of your USB cables using the differential pressure method to weed out cheap leads that cause voltage drops.
Human-Centric Interface: View data comfortably from any angle with a display that supports four-way rotation and flip-screen functionality.

Specifications

Property	Specification
Monitor Voltage Range	4V ~ 24V
Monitor Current Range	0A ~ 6.5A
Monitor Power Range	0W ~ 156W
Resolution (V / A)	0.00001V / 0.00001A
Display	1.06-inch Colour TFT LCD
Supported Protocols	QC2.0, QC3.0, FCP, SCP, AFC, VOOC, WARP, SuperVOOC
Capacity Recording	0 ~ 9999.99Ah (5 Groups)
Dimensions	73mm x 36mm x 12mm
