DMC-100 Clamp Digital Multimeter

SKU: CE10549 Brand: FNIRSI

Identify signal noise and intermittent faults instantly. This 10,000-count True RMS tool combines standard multimeter functions with real-time waveform visualisation for currents up to 600A.

$68.95 AUD, inc GST

$62.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 17th of Feb

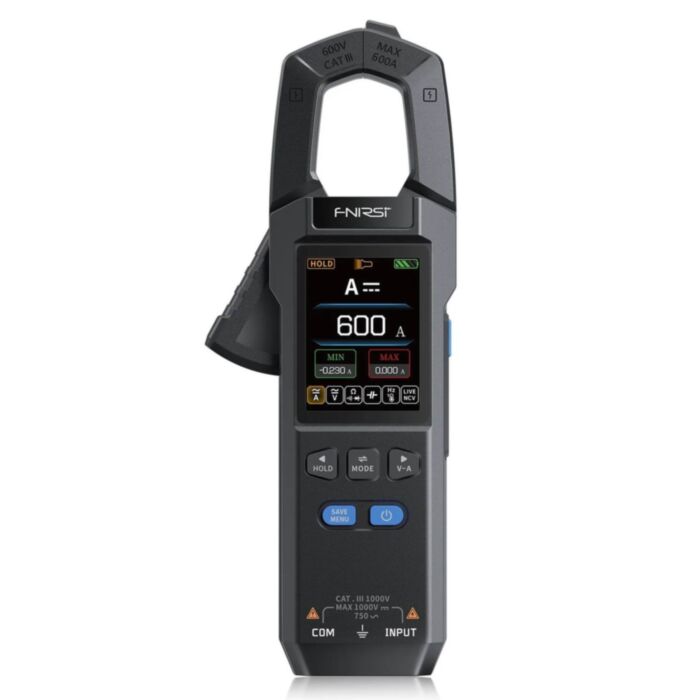

The FNIRSI DMC-100 is a highly capable True RMS digital clamp meter designed to bring visualisation to your electrical diagnostics. Unlike standard clamp meters that simply output a numerical value, the DMC-100 integrates a 2.0-inch full-colour TFT display that can provide a real-time graph of voltage and current waveforms. It is engineered to measure AC/DC current up to 600A and voltage up to 1000V, making it a versatile tool for everything from automotive troubleshooting to heavy-duty HVAC repair.

For makers and technicians, a single number on a screen often doesn't tell the whole story. Intermittent faults, noise, and signal distortion are impossible to spot with a standard multimeter. The DMC-100 solves this by offering an "Display Mode" that renders the waveform directly on the screen, allowing you to visually inspect the quality of your power source or signal. This eliminates the guesswork when diagnosing complex electronics or noisy mains lines.

Constructed with a focus on modern workflow, this unit abandons the traditional disposable 9V battery in favour of a built-in 1500mAh lithium-ion battery, rechargeable via a standard USB-C port. It features high-precision 10,000-count resolution, ensuring that your readings are accurate down to the details.

Features

Visual Waveform Analysis: Diagnose signal quality instantly with the graphical display mode, allowing you to see AC current and voltage waveforms rather than just reading a number.
High-Resolution Precision: Capture minute changes in your circuit with 10,000-count True RMS accuracy, offering significantly higher resolution than standard 2,000 or 6,000-count meters.
Modern Power Management: Never hunt for a 9V battery again thanks to the integrated 1500mAh lithium battery, easily recharged via USB-C for extended runtime in the field.
Dual-Mode Measurement: Seamlessly switch between automatic range for quick checks and professional manual modes for specific diagnostic requirements.
Data Logging Capabilities: Review your findings with on-board storage for measurement values, allowing you to compare current readings against historical data.
Full-Spectrum Diagnostics: Consolidate your toolbag with a single device that handles Voltage, Current, Resistance, Capacitance, Frequency, Duty Cycle, and Temperature (-55°C to 1300°C).

Specifications

Property	Specification
Display	2.0-inch TFT Colour Screen (240 x 320)
Max Counts	10,000 Counts
DC Voltage Range	0.001V – 1000V
AC Voltage Range	0.001V – 750V
DC Current Range	0.01A – 600A
AC Current Range	0.01A – 600A
Resistance	0Ω – 60MΩ
Capacitance	1nF – 100mF
Temperature	-55°C to 1300°C
Battery	1500mAh 3.7V Lithium-ion (USB-C Charging)
Jaw Opening	25mm (Max)
Dimensions	193mm x 74mm x 32mm
Weight	194g
