Flora UV Index Sensor - Si1145 Light Sensor

SKU: ADA1981 Brand: Adafruit
Your wearable can now keep you from getting sunburnt, with the Flora digital UV index sensor. Adafruit took Adafruit's popular SI1145 UV index sensor and cut out everything you...
$16.95 AUD, inc GST
$15.41 AUD, exc GST

Quantity Discounts:

  • 10-25 $14.79 (exc GST)
  • 25+ $14.33 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

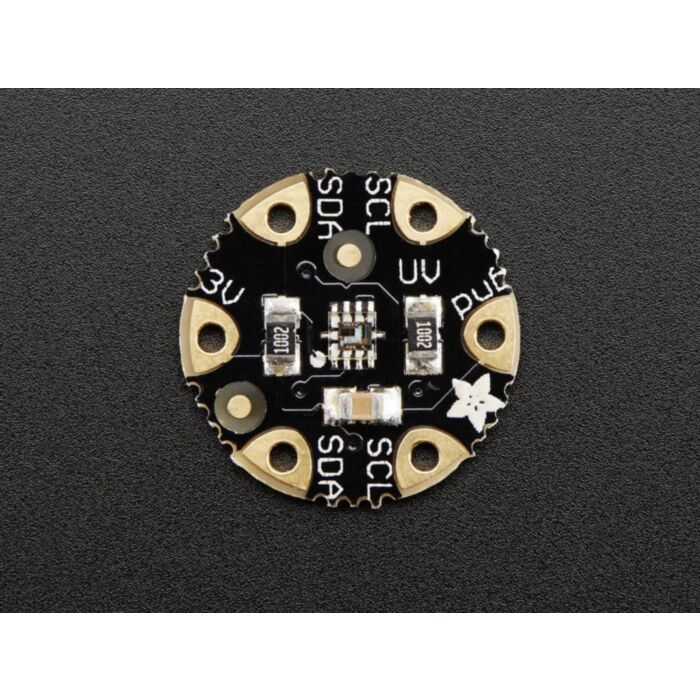

Your wearable can now keep you from getting sunburnt, with the Flora digital UV index sensor. Adafruit took Adafruit's popular SI1145 UV index sensor and cut out everything you don't need for using with a Flora. It's small, round, and connects to the I2C bus pads. Flora can even use Adafruit's library code to get calibrated light level and UV index data from the sensor.

Please note: this sensor can be used by Flora but is too complex for Gemma!

To use: connect the 3V, SDA and SCL, and GND pads of the sensor to your Flora 3V/SDA/SCL/GND pads, in that order. Then load up Adafruit's Arduino library and example code from Adafruit's tutorial to your Flora.


Technical Details

SI1145 Details:

  • IR Sensor Spectrum: Wavelength: 550nm-1000nm (centered on 800)
  • Visible Light Sensor Spectrum: Wavelength: 400nm-800nm (centered on 530)
  • Voltage Supply: Power with 3 VDC
  •  I2C address 0x60 (7-bit)
  • Operating Temperature: -40°C ~ 85°C

Breakout Board details:

  • Diameter: 14mm / 0.6"
  • Height: 2mm / 0.08"
  • Weight: 0.3g

Datasheets, Fritzing objects, and EagleCAD PCB files available in the tutorial
