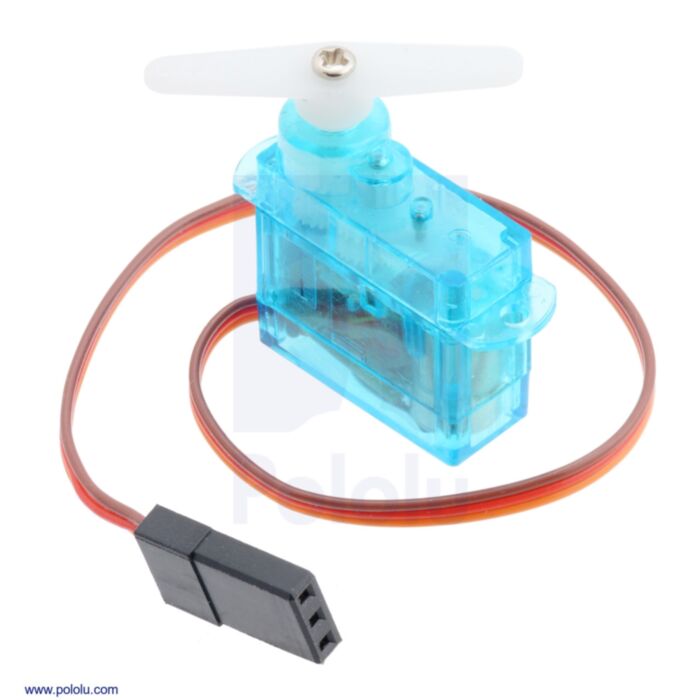

FEETECH Sub-Micro Servo FS0307

SKU: POLOLU-3420 Brand: Pololu
The FS0307 analog sub-micro servo from FEETECH is a great tiny actuator for a small robot mechanism. Servo horns and associated hardware are included....
$11.30 AUD, inc GST
$10.27 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 22 and Jul 25

Quantity Discounts:

  • 10-25 $9.96 (exc GST)
  • 25+ $9.76 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

FEETECH FS0307 Sub-Micro Servo with a LEGO Minifigure as a size reference.

This is a great general-purpose actuator for tiny mechanisms. The FS0307 is a very small 4.4 g analog servo from FEETECH (formerly known as Fitec) that offers position control over an approximate 120° operating angle for servo pulses between 900 µs and 2100 µs. As with most servos, the pulse range can be expanded to achieve an expanded operating angle, but the limits of this are not specified by FEETECH. (In Pololu's tests, Pololu were able to get an expanded range of approximately 180° over a pulse range of 650 µs to 2500 µs, but as this is not part of FEETECH’s official specifications, it is possible different units will behave differently in this regard.)

The servo has a 6" (15 cm) cable that is terminated with a standard JR-style connector, which is Futaba-compatible, and it includes additional servo horns and mounting hardware.

The servo cable is terminated with a Futaba-compatible JR-style connector.

An example of hardware included with the FEETECH FS0307 sub-micro servo. Actual hardware might vary.

You can find more information about this servo in its datasheet (98k pdf).

Note that, as with most hobby servos, stalling or back-driving this servo can damage it.

People often buy this product together with:

Sub-Micro Servo 3.7g Sub-Micro Servo 3.7g
FEETECH Sub-Micro Servo FS0403 FEETECH Sub-Micro Servo FS0403
FEETECH Sub-Micro Servo FS0403-FB with Position Feedback FEETECH Sub-Micro Servo FS0403-FB with Position Feedback

Dimensions

Size: 20.0 × 8.3 × 17.3 mm
Weight: 4.4 g

General specifications

Digital?: N
Speed @ 6V: 0.09 sec/60°
Stall torque @ 6V: 0.6 kg·cm
Speed @ 4.8V: 0.10 sec/60°
Stall torque @ 4.8V: 0.5 kg·cm
Hardware included?: Y
Lead length: 6 in
