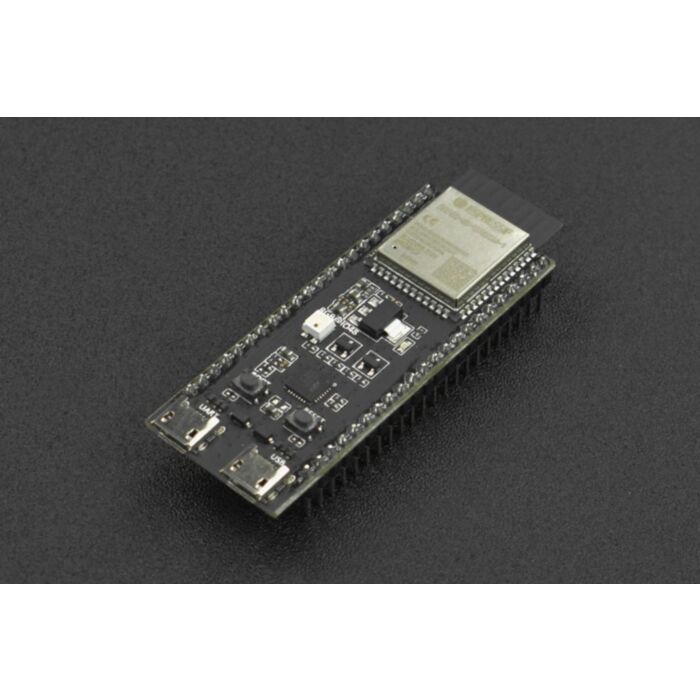

ESP32-S3-DevKitC-1 Development Board

SKU: DFR0895 Brand: DFRobot

The ESP32-S3-DevKitC-1 is an entry-level development board equipped with ESP32-S3-WROOM-1, a general-purpose Wi-Fi + Bluetooth® LE MCU module that...

$58.60 AUD, inc GST

$53.27 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 02 and Jun 05

Quantity Discounts:

6+ $51.15 (exc GST)
12+ $49.55 (exc GST)

Introduction

The ESP32-S3-DevKitC-1 is an entry-level development board equipped with ESP32-S3-WROOM-1, a general-purpose Wi-Fi + Bluetooth® LE MCU module that integrates complete Wi-Fi and Bluetooth LE functions. Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S3-DevKitC-1 on a breadboard.

ESP32-S3-WROOM-1 is a powerful, generic Wi-Fi+ Bluetooth LE MCU module built around the ESP32-S3 series of SoCs. On top of a rich set of peripherals, the acceleration for neural network computing and signal processing workloads provided by the SoC makes the module an ideal choice for a wide variety of application scenarios related to Artificial Intelligence of Things (AIoT), such as wake word detection, speech commands recognition, face detection, and recognition, smart home, smart appliances, smart control panel, smart speaker, etc.

Description of Components

Key Component	Description
ESP32-S3-WROOM-1/1U/2	ESP32-S3-WROOM-1 are powerful, generic Wi-Fi + Bluetooth LE MCU modules that have a rich set of peripherals. They provide acceleration for neural network computing and signal processing workloads.
5 V to 3.3 V LDO	Power regulator that converts a 5 V supply into a 3.3 V output.
Pin Headers	All available GPIO pins (except for the SPI bus for flash) are broken out to the pin headers on the board for easy interfacing and programming.
USB-to-UART Port	A Micro-USB port used for power supply to the board, for flashing applications to the chip, as well as for communication with the chip via the on-board USB-to-UART bridge.
Boot Button	Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port.
Reset Button	Press this button to restart the system.
ESP32-S3 USB Port	ESP32-S3 full-speed USB OTG interface, compliant with the USB 1.1 Specification. The interface is used for power supply to the board, for flashing applications to the chip, for communication with the chip using USB 1.1 protocols, as well as for JTAG debugging.
USB-to-UART Bridge	Single USB-to-UART bridge chip provides transfer rates up to 3 Mbps.
RGB LED	Addressable RGB LED, driven by GPIO48.
3.3 V Power On LED	Turns on when the USB power is connected to the board.

Pin Header

Features

Integrates complete Wi-Fi and Bluetooth LE functions

Applications

Wake word detection
Speech commands recognition
Face detection and recognition
Smart home
Smart appliances
Smart control panel
Smart speaker

Specification

ESP32-S3 series of SoCs embedded, Xtensa® dual-core 32-bit LX7 microprocessor (support single-precision floating-point units), support the clock frequency of up to 240MHz
384 KB ROM
512 KB SRAM
16 KB RTC SRAM
4 MB SPI flash
Bluetooth LE: Bluetooth 5, Bluetooth mesh
40MHz crystal oscillator
Operating Temperature: -40 ~ 85°C

Documents

User Guides

Parts List

ESP32-S3-DevKitC-1 Development Board x1
