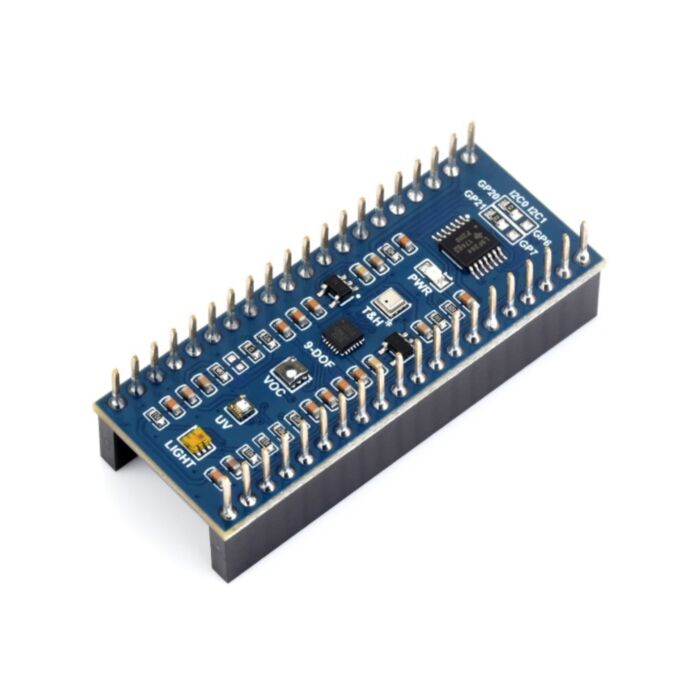

Environment Sensors Module for Raspberry Pi Pico

SKU: WS-20232 Brand: Waveshare

Environment Sensors Module For Raspberry Pi Pico, I2C Bus...

$53.60 AUD, inc GST

$48.73 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 28 and May 01

The Pico-Environment-Sensor gives Raspberry Pi Pico the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation.

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light
Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer
Onboard LTR390-UV-1 sensor, for measuring UV rays
Onboard SGP40 sensor, for detecting ambient VOC
I2C bus, allows retrieving data by just using two wires
Comes with development resources and manual (MicroPython example)

Specifications

VL53L0X Light Sensor

I2C address: 0x29
Effective range: 0 ~ 88,000 Lux

BME280 Sensor (Temperature, Humidity, and Air Pressure)

I2C address: 0x76
Temperature detection:
- Range: -40 ~ 85°C
- Resolution: 0.01°C
- Accuracy: ±1°C
Humidity detection:
- Range: 0 ~ 100%RH
- Resolution: 0.008%RH
- Accuracy: ±3%RH
- Response time: 1s
- Delay: ≤ 2%RH
Air pressure detection:
- Range: 300 ~ 1100 hPa
- Resolution: 0.18 Pa
- Accuracy: ±1 hPa

ICM20948 Motion Sensor (9-DOF)

I2C address: 0x68
Accelerometer:
- Resolution: 16-bit
- Range (configurable): ±2, ±4, ±8, ±16g
Gyroscope:
- Resolution: 16-bit
- Range (configurable): ±250, ±500, ±1000, ±2000°/sec
Magnetometer:
- Resolution: 16-bit
- Range: ±4900 µT

LTR390-UV-1 UV Sensor

I2C address: 0x53
Response wavelength: 300 nm ~ 350 nm

SGP40 VOC Sensor

I2C address: 0x59
Measuring range: 0 ~ 1,000 ppm ethanol equivalent
Limit condition:
- < 0.05 ppm ethanol equivalent OR
- < 10% of preset concentration point (whichever is larger)
Response time: < 10 s (tau 63%)
Start time: < 60 s
On-chip humidity compensation: Supported

What's On Board

TSL25911FN
digital ambient light sensor, for measuring IR and visible light
LTR390-UV-1
UV sensor
SGP40
VOC sensor
ICM20948
3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer
Voltage Regulator
5V to 3.3V/1.8V
BME280
temperature, humidity, and air pressure sensor
Logic level translator
3.3V ~ 1.8V
I2C selection

Pinout

Dimensions

Documentation

Wiki
