Edge-Launch SMA Connector for 0.8mm / 0.031 Slim PCBs

SKU: ADA1864 Brand: Adafruit
This is a great connector for anyone doing RF work, when an SMA connector is required. It hugs the edge of a "half thickness" 0.031" thick PCB (or thinner!) and...
$4.85 AUD, inc GST
$4.41 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 06

Quantity Discounts:

  • 10-25 $4.24 (exc GST)
  • 25+ $4.10 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

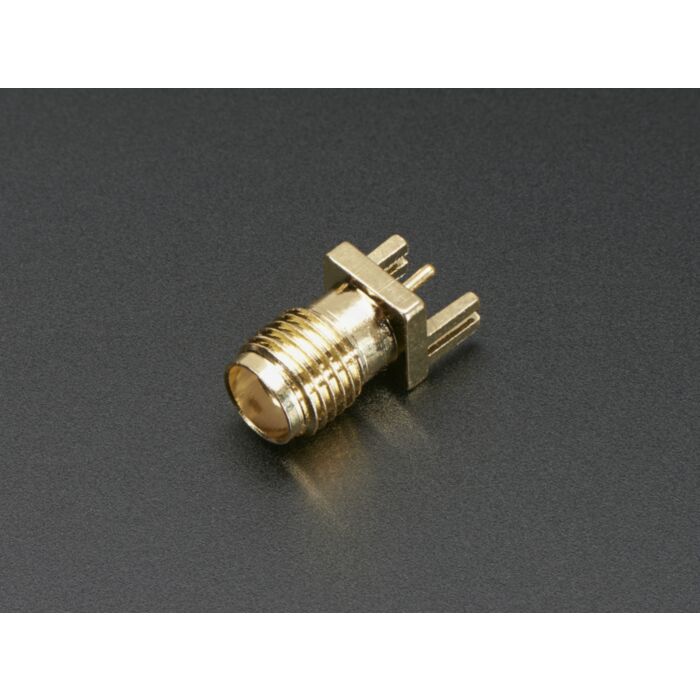

This is a great connector for anyone doing RF work, when an SMA connector is required. It hugs the edge of a "half thickness" 0.031" thick PCB (or thinner!) and 'launches' off of the edge. Adafruit like these for their ease of soldering and low profile. Mates with any SMA plug, They also have an SMA to RP-SMA in case your antenna is RP-SMA

You can find an Eagle footprint for this part in the Adafruit Eagle Library, it's called SMA_EDGELAUNCH


Technical Details

  • Impedance: 50 ohm
  • Diameter of Jack: 6.1mm / .24"
  • Width of Plug: 6.4mm / .25"
  • Total Length of Connector: 13.5mm / 0.53"
  • Weight: 2g
