Diffused RGB 5mm LED (25 pack)


$20.95 AUD, inc GST
$19.05 AUD, exc GST
Diffused RGB 5mm LED (25 pack)
20.95 AUD


$20.95 AUD, inc GST
$19.05 AUD, exc GST


  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

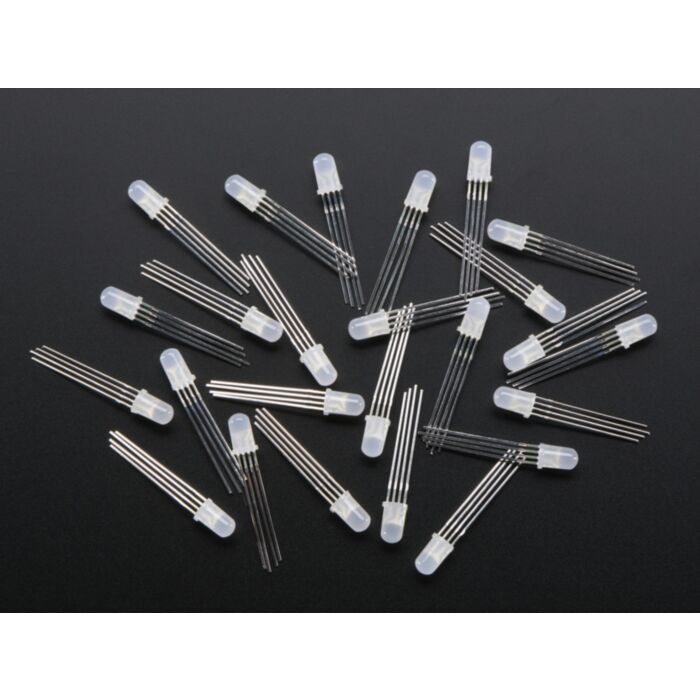

Diffused 5mm tri-color LEDs with separate red, green and blue LED chips inside! Nice indicator, and fun to color-swirl. 60 degree viewing angle. Adafruit like diffused RGB LEDs because they color mix inside instead of appearing as 3 distinct LEDs.

These are Common-Anode type which means you connect one pin to 5V or so and then tie the other three legs to ground through a resistor. We carry and use CA more than CC because multi-LED driver chips (such as the TLC5940/TLC5941) are often designed exclusively for CA and can't be used with Common-Cathode.

  • Pack of 25 diffused RGB LEDs
  • 5mm diameter
  • Red: 630 nm wavelength, Green: 525 nm, Blue: 460 nm
  • Red: 1.9-2.3V Forward Voltage, at 20mA current, Green: 3.0-3.4V, Blue: 3.0-3.4V
  • Red: 3000 mcd typical brightness, Green: 5000 mcd, Blue: 900 mcd
  • FD-5WSRGB-A Datasheet

If you need some help using LEDs, please read Adafruit's "Introduction to using LEDs" tutorial for any electronics project.
