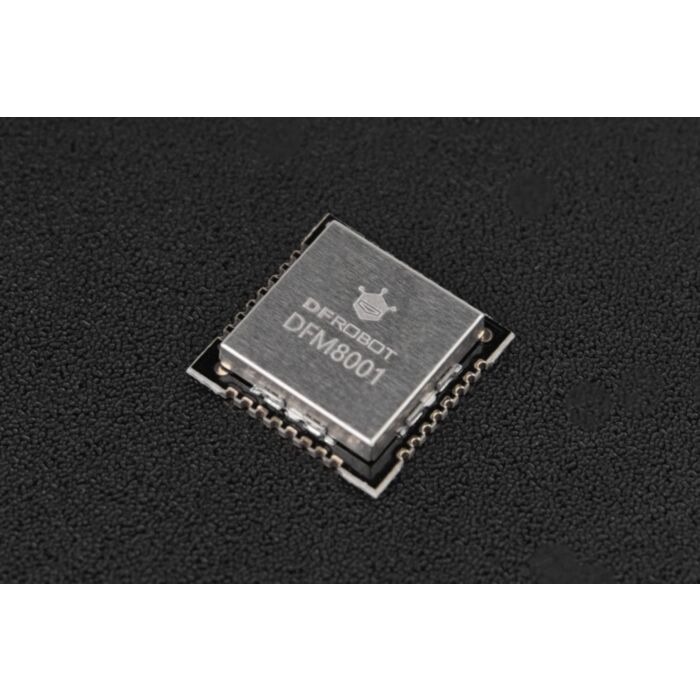

DFM8001 Ambient Energy Harvesting Module for Indoor IoT Battery-free Devices

SKU: DFR1108 Brand: DFRobot

The micro Ambient Energy Harvesting Module is a high-performance, multi-source energy harvester for IoT battery-free smart devices. Features dynamic MPPT...

$9.55 AUD, inc GST

$8.68 AUD, exc GST

Available with a lead time
Expect dispatch between May 12 and May 15

Quantity Discounts:

10+ $8.07 (exc GST)
25+ $7.82 (exc GST)

Harness the power of the natural environment with the DFM8001 Ambient Energy Harvesting Module. This module is a micro-energy harvesting module that can be used indoors. It efficiently collects and stores energy from abundant sources such as mechanical, thermal, solar, and radio frequency energy. The best part? It does not require a battery, eliminating the need to worry about charging, discharging, and battery life.

Energy sources in the natural environment are influenced by factors such as geographical location and weather, making it difficult to utilize effectively due to their weak and unstable characteristics. The DFM8001 module addresses this challenge by being capable of handling energy ranging from weak to microwatt levels. It features dynamic MPPT tracking, which regularly monitors the status of input sources and adjusts to the maximum power point to ensure efficient collection of weak energy. Moreover, the module integrates functions including charge and discharge management, energy storage management, and dual-channel voltage stabilization output.

The DFM8001 module integrates necessary components for operation internally. Simply connect the module’s configuration pins to GND/Vbuck, and connect energy harvesting devices, energy storage devices, and electrical devices to construct an ambient energy supply system. It is particularly suitable for use with amorphous silicon, organic materials, dye-sensitized, and other types of photovoltaic cells, exhibiting excellent energy storage performance even in weak light environments such as low sunlight or indoor lighting.

For user convenience, DFRobot has introduced the DFM8001 Evaluation Kit. This kit includes the DFM8001 evaluation board, amorphous silicon photovoltaic cells, and a supercapacitor energy storage module. Users can build an ambient energy power system with a simple connection.

Quick Application Block Diagram

Features

Efficiently collects and stores various energy types.
Features dynamic Maximum Power Point Tracking (MPPT).
Integrates charge, discharge, and energy storage management.
Provides dual-channel voltage stabilization output.
Handles energy from weak to microwatt levels.
Suitable for various types of photovoltaic cells.
Performs well in weak light environments.

Applications

Indoor light energy harvesting
Self-powered Internet of Things (IoT) nodes
Smart home systems
Industrial monitoring
Asset management
Ambient IoT

Specification

Operating voltage: 3.3V-5.5V DC
Cold start condition: Input = 400mV 15uW
The sustaining voltage after cold start: 150mV.
Input voltage range: 150mV-5V
MPPT ratio: 70%, 75%, 85%, 90% (adjustable)
MPPT automatic detection frequency: 5 times per second
Dual LDO voltage regulation output:
- Low voltage:1.2-1.8V 20mA (with switch)
- High voltage:1.8-4.1V 80mA (with switch)
Energy storage management:
- Adjustable overcharge protection:2.7V-4.5V
- Adjustable overdischarge protection:2.2V-3.6V
Suitable for any type of rechargeable battery or capacitor
Low battery warning
LDO output available indication
Supports disposable backup battery
Module dimensions: 15x15x3.5 mm

Documents

Parts List

Ambient Energy Harvesting Module - DFM8001 x1
